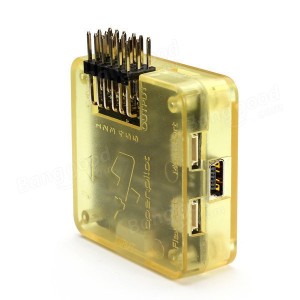

CC3D Flight Controller OpenPilot STM32 32-bit Flexiport

RBD-0704

  • 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  • Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  • Software support for Windows, Mac, and Linux.
  • Direct high-speed USB support with no drivers required, a true plug and play device.
  • Spektrum satellite receiver support.
  • Futaba S-BUS hardware support.
  • Innovative Flexi-port technology for superior port flexibility.
  • 4Mbits onboard EEPROM for configuration storage. RoboticsBD
BDT 3,400
BDT 3,400 BDT 3,400 BDT 3,400 BDT 3,400
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 3,400 Tax excluded
BDT 3,400 Tax included
BDT 0 Tax
BDT 3,400 Tax excluded
BDT 0 Tax
BDT 3,400 Tax included
Quantity
Sold-out

30 people have purchased this item
There are not enough products in stock
Description

This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. It also supports S.BUS. Evo is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM. The 3-axis MEMs technology is used for both gyro and accelerometer. RoboticsBD

The OpenPilot CC3D EVO Flight Controller Straight Pin card is easy to use with your computer. With USB and OpenPilot software, the card can be programmed in Windows, Mac, or Linux without the need for any drivers to install. OpenPilot is a very user-friendly program designed to be used by anyone, regardless of programming experience. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: Please don’t flash/Update the Default firmware. Updated or new firmware may cause a problem of connectivity with PC/Laptop.


OpenPilot CC3D Flight Controller Bent Pin STM32 32-bit Flexiport for RC Drone FPV Racing Multi Rotor
OpenPilot CC3D Flight Controller Bent Pin STM32 32-bit Flexiport for RC Drone FPV Racing Multi Rotor
OpenPilot CC3D Flight Controller Bent Pin STM32 32-bit Flexiport for RC Drone FPV Racing Multi Rotor
OpenPilot CC3D Flight Controller Bent Pin STM32 32-bit Flexiport for RC Drone FPV Racing Multi Rotor

Features :

CC3D EVO Hardware Features :
  1. WIth a function of being directly plugged into the satellite receiver(It needn’t conversion cable)
  2. Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
  3. 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  4. Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  5. Software support for Windows, Mac, and Linux. RoboticsBD
  6. Direct high-speed USB support with no drivers required, a true plug and play device.
  7. Spektrum satellite receiver support.
  8. Futaba S-BUS hardware support.
  9. Innovative Flexi-port technology for superior port flexibility.
  10. 4Mbits onboard EEPROM for configuration storage. RoboticsBD
Flexiport :
  • Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.
Superior user experience :
  1. OpenPilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally, for a high-end product, the hardware is complete; there is nothing to solder. The included RC  harness allows you to connect any standard PWM receiver.  All CopterControl boards are tested before shipping and come with bootloader already flashed.
  2. A standard mini USB  cable (not includes) is used to load the latest firmware and configure everything for your unique airframe. The OpenPilot project, whilst still young, it trying to make Open Source much more user-friendly. RoboticsBD
  3. OpenPilot software is designed to be used by everybody! All major operating systems are supported and install packages are provided.
  4. The software is all Free software under the GPLv3 license and not only are you welcome to hack it, but we encourage it.

Sensors and Components :
  1. 3-axis Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,
  2. Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,  DSMJ, DSMX satellites, and Futaba S.Bus receivers.
  3. Simultaneous support for multiple receivers. RoboticsBD
  4. ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
  5. MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
  6. FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under  development)
  7. 10 PWM outputs to servos or ESC’s, or for camera stabilization
  8. Camera stabilization supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.
  9. Onboard USB connectivity for easy configuration.
  10. USB and serial telemetry and configuration
  11. Supported by powerful OpenPilot GCS
  12. 4 Mbit onboard memory
  13. 3C Quaternion based complementary filter running at 500Hz

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
ModelOpenPilot CC3D EVO Straight Pin
Input Voltage (V)5 VDC
Sensors3-Axis Gyrometer
Accelerometer
High-performance Barometer
ProcessorMicro-Controller STM32
Sensor IC: MPU6000
Micro-SD Card SlotNo
Dimensions (mm) LxWxH40 x 40 x 18
Weight (gm)22
Shipment Weight0.025 kg
Shipment Dimensions8 × 7 × 5 cm
Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentations:
  1. Configure OpenPilot CC3D Evo
  2. OpenPilot CC3D EVO Flight Controller Straight Pin

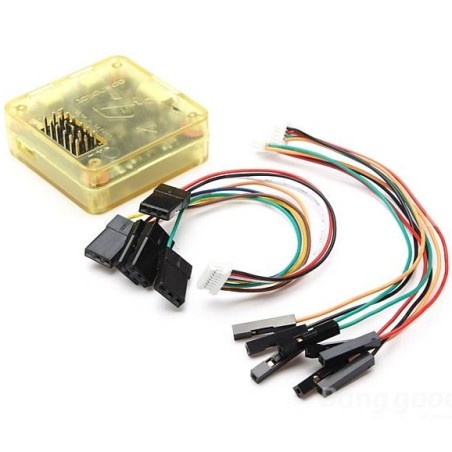

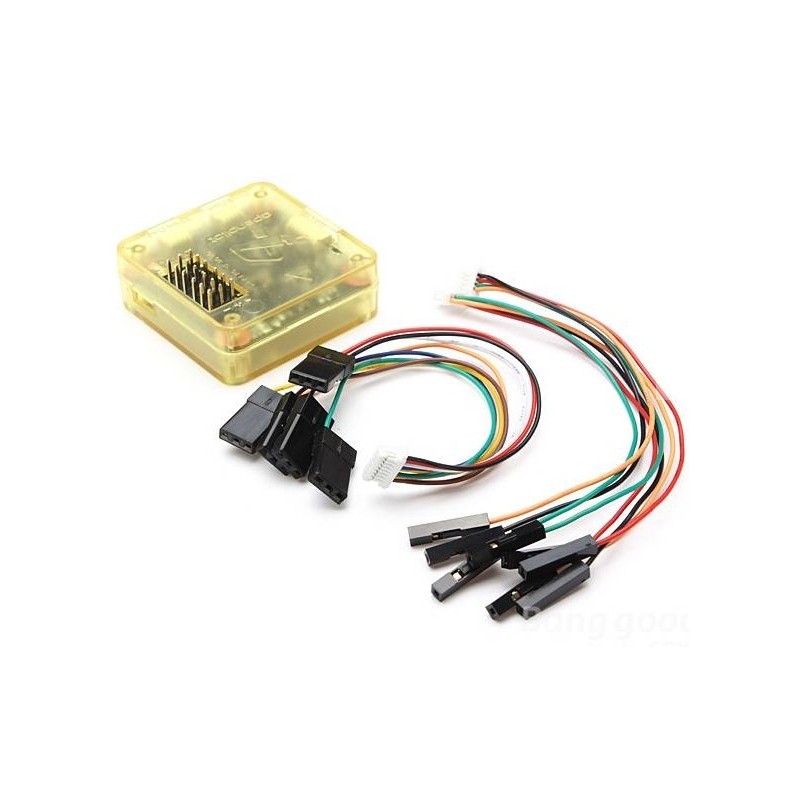

Package Includes :

1 x OpenPilot CC3D EVO Flight Controller Straight Pin

2 x Connecting Wires.

1 x PC plastic shell.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0704

Specific References

EAN13
0704
