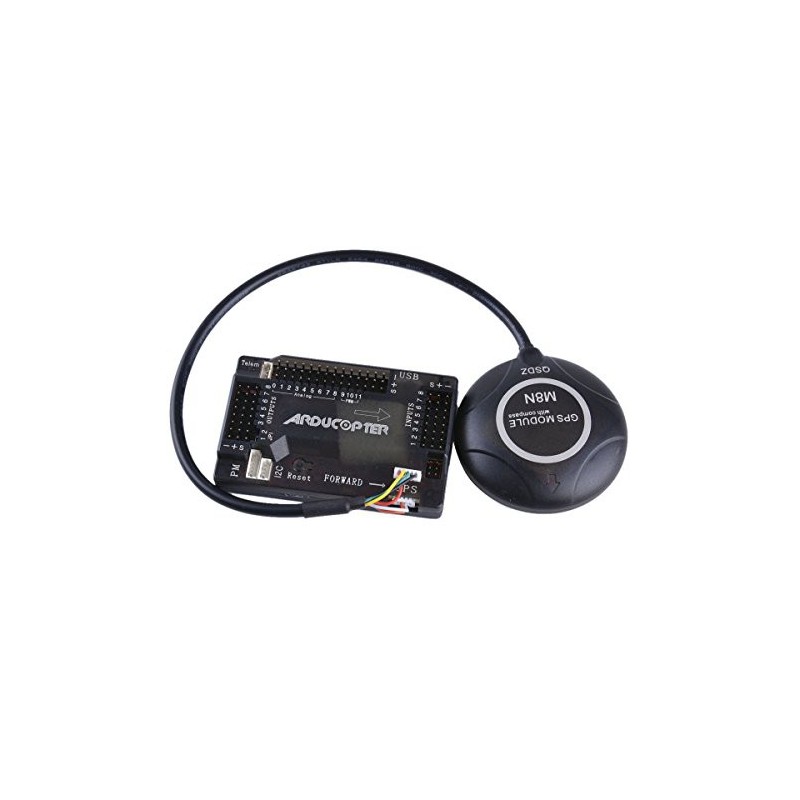

    APM 2.8 Flight Controller + NEO GPS M8N

    RBD-1546

    • Model: APM 2.8
    • APM 2.8 Flight Controller Input Voltage (V): 12-16 V.
    • APM 2.8 Flight Controller Processor: ATMEGA2560 and ATMEGA32U-2
    • APM 2.8 Flight Controller Dimensions (mm) LxWxH: 70 x 45 x 15
    • NEO-M8N GPS Module Dimensions: Outer diameter 54mm
    • NEO-M8N GPS Module Ready to Connect to All APM FC with 5-pin connector Attached
    • NEO-M8N GPS Module Receiver type 72-channel M8 engine
    • NEO-M8N GPS Module Galileo-ready E1B/C (NEO-M8N)
    • NEO-M8N GPS Module Nav. update rate1 Single GNSS: up to 18 HZ
    • NEO-M8N GPS Module Position accuracy 22.0 m CEP
    • NEO-M8N GPS Module Acquisition2 Cold starts: 26 s
    • NEO-M8N GPS Module Weight: 33gm
    • NEO-M8N GPS Module Sensitivity2 Tracking & Navigation: –167 dBm
    • NEO-M8N GPS Module Onboard Compass
    BDT 13,950
    BDT 13,950 BDT 13,950 BDT 13,950 BDT 13,950
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 13,950 Tax excluded
    BDT 13,950 Tax included
    BDT 0 Tax
    BDT 13,950 Tax excluded
    BDT 0 Tax
    BDT 13,950 Tax included
    Quantity
    In-Stock
    8 Items

    1 person has purchased this item
    8 items in stock
    Description

    APM 2.8 Flight Controller

    Are you want to be an Electronic Geek in the future and want to build your own drone then this Flight controller is best for you. The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand. This flight controller. RoboticsBD

    APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5 and 2.6 with a Built-in Compass for FPV RC Drone. The sensors are exactly the same as the APM 2.6 flight controller. However, the module has the option to use the built-in compass an external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.

    The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system. This is the best-selling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary-wing. In addition, it turns multirotor vehicles (even cars and boats) into a fully autonomous vehicle. meanwhile, it is capable of performing programmed GPS missions with waypoints.  Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    APM Flight controller Using the built-in compass:

    To use the built-in compass simply connect the jumper as shown below. The APM board will use the external compass, during the compass jumper is removed.

    Features :

    1. Straight Needle
    2. Arduino Compatible
    3. Onboard 4 MegaByte Dataflash chip for automatic data logging.
    4. Optional off-board GPS, a uBlox LEA-6H module with Compass.
    5. One of the first open-source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
    6. Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
    7. Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.

    APM Flight controller Specification
    ModelAPM 2.8
    Power supplyLP2985-3.3.
    PortMUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
    Input Voltage (V)12~16 VDC
    Sensors3-Axis Gyro meter
    Accelerometer
    High-performance Barometer
    ProcessorATMEGA2560 and ATMEGA32U-2
    Micro-SD Card SlotNo
    Dimensions (mm) LxWxH70 x 45 x 15
    Weight (gm)82

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    NEO GPS M8N:

    If you are wandering to navigate the distance with a drone then this GPS Module is needed for you. GPS drones are equipped with a GPS module that allows them to know their location relative to a network of orbiting satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.

    NEO-M8N High Precision GPS Module with Built-in Compass for APM and PIXHAWK FC is the new Neo-M8N GPS module that includes an HMC5883L digital compass. This module has a high level of sensitivity and features active circuitry for the ceramic patch antenna. It also comes enclosed in a plastic case to protect the module from the elements. This module outputs precise position updates at 10Hz and also has a rechargeable backup battery for warm starts. The NEO-M8N is configured to run at a baud rate of 38400 and can be used with Pixhawk and APM (you might need to modify the cable to fit your autopilot board).

    NEO-M8N GPS Module for  APM2.52  Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation  NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F  mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

    The most important improvement with this module is the vast sensitivity it offers. This module receives concurrent reception from GPS/QZSS, GLONASS, meaning that you should get an excellent signal no matter where you are in the world. Not only does it have these excellent reception capabilities, but it also maintains its low power consumption. This module is also backward compatible with the NEO-7, NEO-6, and NEO-5 families.

    This module also comes with a circular mounting pad.

    Note:

    1. When the GPS modules have power, the blue LED will flash for a second (probably less than a full second). It will then flash constantly once it has a position lock.
    2. This module comes with a genuine chip that enables you to update the firmware* and change the configuration via U-Center. However, if you do not need this functionality.
    3.  Due to the flash memory of this specific module, you cannot update the V3.01 firmware as the firmware file is too big.
    4. This is a product of ReadyToSky brand powered by chip inside
    5. This module comes with 5 pin connectors connected by default (i.e.Ready to connect to APM FC) and an extra 6 pin connector for PIXHAWK FC for Swapping.

    Connector difference of PIXHAWK and APM FC:

    Features :

    1. GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
    2. SBAS L1 C/A: WAAS, EGNOS, MSAS.
    3. Galileo-ready E1B/C (NEO-M8N).
    4. Nav. update rate1 Single GNSS: up to 18 HZ.
    5. Assistance AssistNow GNSS Online.
    6. Assist Now GNSS Offline (up to 35 days)3.
    7. Assist Now Autonomous (up to 6 days).
    8. OMA SUPL & 3GPP compliant
    9. Oscillator TCXO (NEO-M8N/Q).
    10. Crystal (NEO-M8M).
    11. RTC crystal Built-In.
    12. Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
    13. lowest noise figure (NEO-M8N/Q).
    14. Anti-jamming Active CW detection and removal.
    15. An extra onboard SAW bandpass filter (NEO-M8N/Q).
    16. Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
    17. Supported antennas Active and passive.
    18. Odometer Travelled distance.
    19. Data-logger For position, velocity, and time (NEO-M8N).

    Ublox Neo-M8N Specification
    ModelUblox NEO-M8N
    Receiver Type72-channel Ublox M8 engine.
    Main ChipUblox NEO-M8N
    Sensitivity (dBm)156
    Cold Start (without aiding): -147 dBm
    Position Accuracy (Meter)2
    2.5
    Acceleration (g)<4
    Navigation Update Rateup to 18 HZ.
    Operating Temperature Range (°C)-45 to 105
    Tracking Sensitivity (dBm)-161 dBm
    Co-Ordinate SystemWGS-84
    Capture Time0.1s Average
    Avg Cold Start Time (s)30
    Warm Start Time (s)1
    Boot Time1S
    Maximum Altitude (m)18000
    Weight (gm)33
    Cable Length (cm)20
    Input Supply Voltage (VDC)0.5 ~ 3.6
    Dimensions (mm) LxWxH54 x 22 (Dia x W)

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ProductAPM 2.8 Flight Controller + NEO GPS M8N
    Shipment Weight0.350 kg
    Shipment Dimensions10 × 10 × 6 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Interfacing of GPS Module with Arduino and Raspberry Pi
    2. Calibrating APM 2.8 using Mission Planner
    3. NEO-M8 Datasheet

    Package Includes:

    1 x APM 2.8 Flight Controller

    1 x NEO GPS M8N.
