Standard BLDC 30 amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs. RoboticsBD
STANDARD 30 amp ESC Electronic Speed Controller can drive motors that consume up to 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. This is useful to control our brushless motors with a 2-3S LiPo (make sure the motor doesn’t draw more than 30A). Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: This product may come with or without connector as our stock rotates.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- This 30 amp ESC for BLDC has onboard BEC

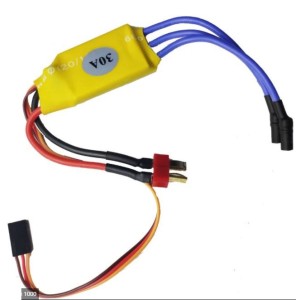

- This ESC comes with a male dean T-connector
- Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
- APPLICATION: Multirotors, Rc Airplanes, etc
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | Standard 30A BLDC ESC |
| Burst Current (A) | 40 |
| Constant Current (A) | 30 |
| BEC | Yes (5V/3A) |
| Suitable Lipo Batteries | 2 ~ 3S Lipo and 4 ~ 10s Ni-Mh/Ni-CD |
| Color | Random |
| Application | BLDC Motors, Multirotors, Rc Planes etc. |
| Length (mm) | 45 |
| Width (mm) | 24 |
| Height (mm) | 9 |
| Weight (gm) | 23 |
| Shipment Weight | 0.027 kg |
| Shipment Dimensions | 10 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
-
Package Includes:

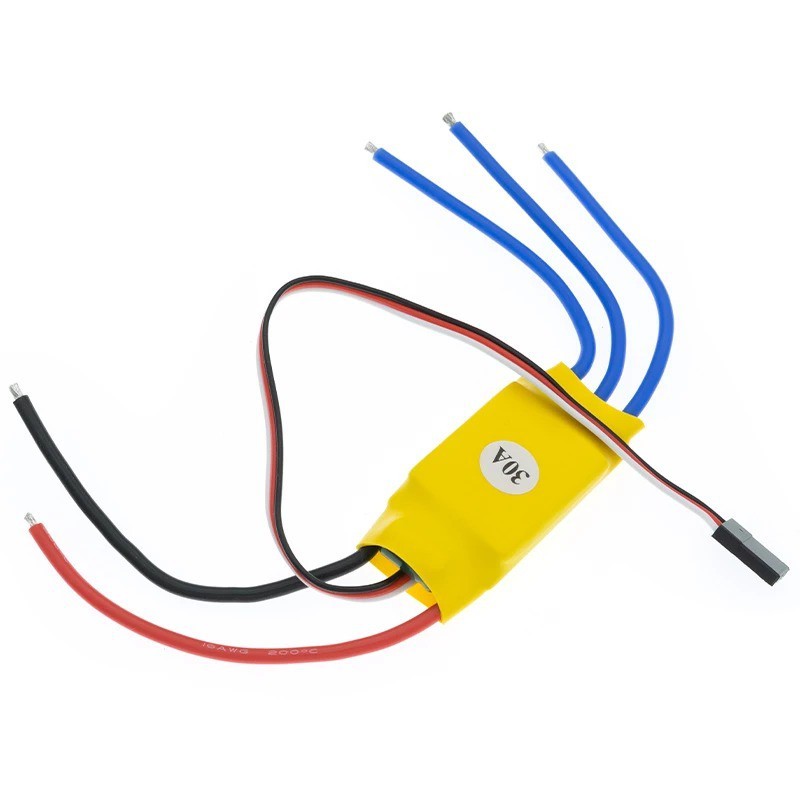

1 x HW30A 30A ESC Brushless Motor Speed Controller
