These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC Motors.

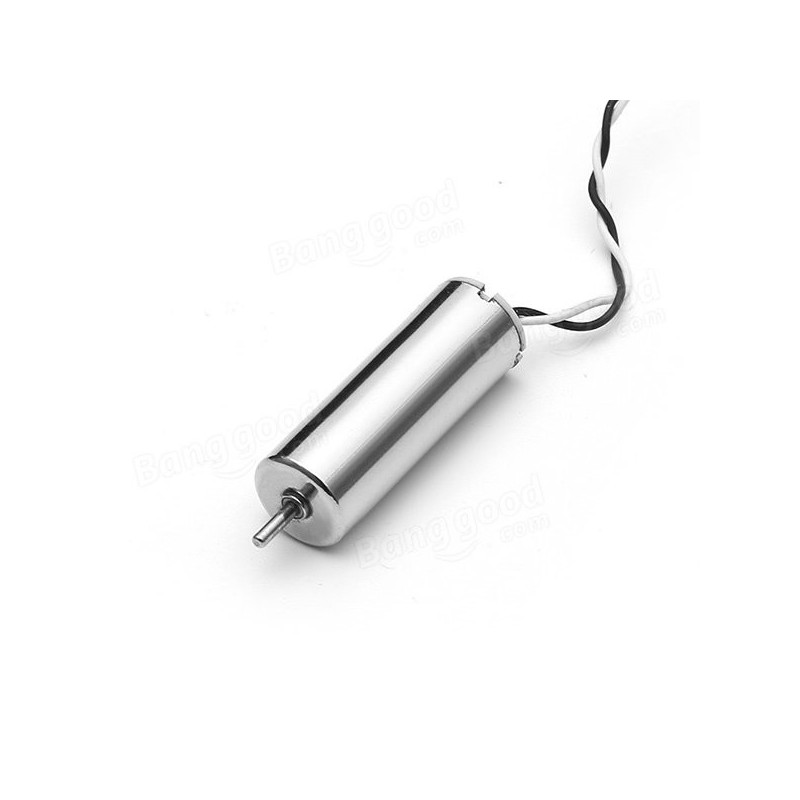

Most importantly this 720 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames. RoboticsBD
They are 48000 RPM Motors which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, just because they are High Speed and Low Torque motors.
The propellers are made of high-tenacity material and thus can sustain crashes. Therefore, this propeller with 720 Coreless motors is a perfect combination for your multirotor. Only, Plug-n-Play. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- 720 Coreless motor is High Speed and Low Torque motor.
- Less noisy operation.
- Offers low resistance.
- They are equipped with high-quality magnets.
- This coreless motor supports 1S battery. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | 720 |
| Rated Speed (RPM) | 48000 |
| Maximum RPM | 50000 |
| Rated Voltage(V) | 3.7 |
| Operating Current (A) | 0.1 |
| Operating Temperature (°C) | -10 to 50 |
| Shaft Diameter (mm) | 1 |
| Motor Color | Silver |
| Motor Diameter(mm) | 7 |
| Motor Length (mm) | 20 |
| Motor Material | Metal |
| Prop. Material | Plastic |
| Prop. Length(mm) | 55 |
| Cable Length (cm) | 5 |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 4 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
2 x 720 Magnetic Micro Coreless Motor
2 x 55 mm Propeller (Color: Black)
