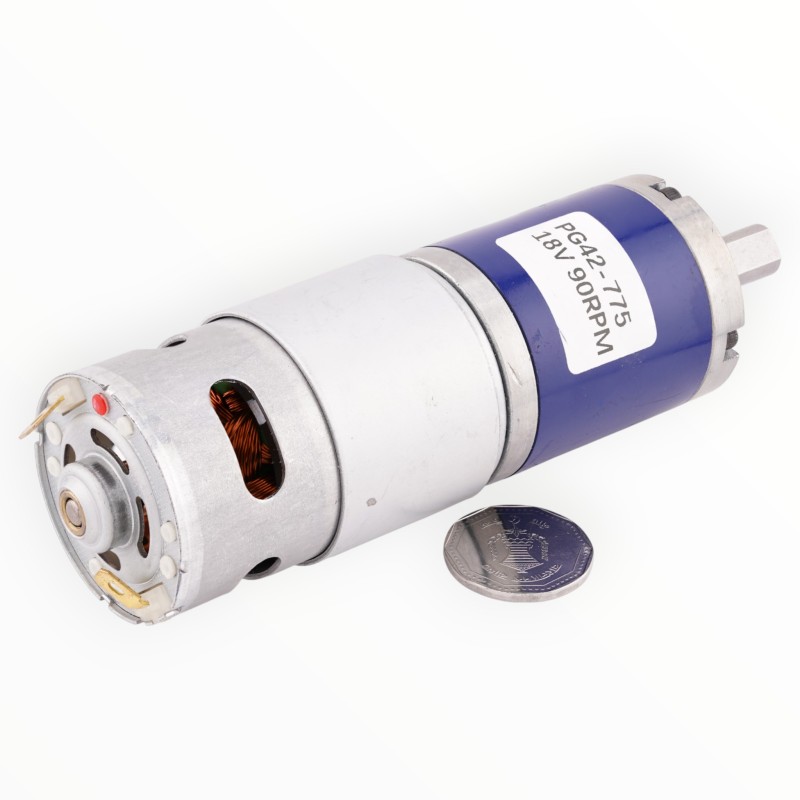

This PG42-775 high-performance DC gear motor is designed for applications requiring strong torque, stable output, and long-lasting durability. With an integrated 42mm metal gearbox and a powerful 775-class motor, it provides smooth low-speed rotation with exceptional load capability—ideal for robotics, automation, smart machinery, and DIY engineering projects.
This PG42-775 high-performance DC gear motor is designed for applications requiring strong torque, stable output, and long-lasting durability. With an integrated 42mm metal gearbox and a powerful 775-class motor, it provides smooth low-speed rotation with exceptional load capability—ideal for robotics, automation, smart machinery, and DIY engineering projects.
Rated Voltage: 18V
Output Speed: 90 RPM (approx.)
Stall Torque: up to 45 kg·cm
Gear Ratio: 1:71 precision-cut metal gears
Main Motor Speed: 6300 RPM (no-load)
Gearbox Diameter: 42mm
Robust Construction: Metal gearbox + heavy-duty 775 motor
High Efficiency: Designed for continuous operation and high load performance
D-shape Output Shaft: Ensures stable coupling with wheels, pulleys, or couplers
Medium-to-heavy duty robotics
Electric locks and automation systems
Industrial model building
Conveyor and actuator systems
DIY engineering and motion control projects
| Parameter | Value |
|---|---|
| Model | PG42-775 |
| Rated Voltage | 18V |
| Output Speed | ~90 RPM |
| Torque | ~45 kgf·cm |
| Gear Ratio | 1:71 |
| Motor No-Load Speed | 6300 RPM |
| Gearbox Diameter | 42mm |
| Shaft Type | D-shaft |
