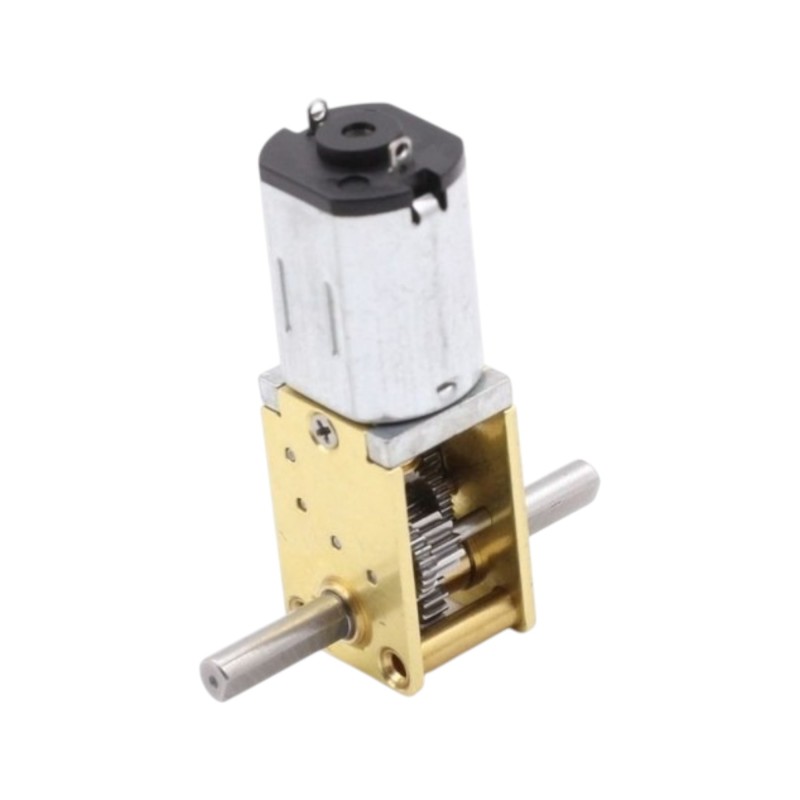

1218WAN 30RPM N20 Gear Motor

Reference RBD-4174

Metal N20 worm gear DC motor with high torque output
Stable 30 RPM slow-speed operation for precise control
12V DC rated voltage with low no-load current consumption
Worm gear design provides self-locking capability
Compact, durable, and suitable for long-term operation
Ideal for smart locks, access control, and automation systems

Description
Product Details

Description

The 1218WAN 30RPM N20 Motor Gear is a compact N20 worm gear DC motor engineered for applications that demand high torque at very low speed. Operating at 12V DC, this motor delivers a steady 30 RPM output while maintaining low current consumption, making it efficient and reliable for continuous-duty systems. The worm gear mechanism not only increases torque but also offers a natural self-locking effect, which is especially critical in smart lock and security applications. Built with a metal gear assembly and brushed motor design, it ensures durability, smooth operation, and consistent performance even under load. Thanks to its small footprint and robust construction, this motor integrates easily into space-constrained mechanical designs and smart automation projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Worm gear structure provides high torque and anti-backdrive locking
Low-speed 30 RPM output ideal for controlled motion
Metal gearbox enhances durability and wear resistance
Low no-load current improves power efficiency
Compact N20 form factor fits tight installation spaces
Reliable brushed motor design for stable performance

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Smart door lock and access control systems
Electronic locking and latching mechanisms
Small automation and actuator assemblies
Security devices requiring self-locking motors
DIY robotics and embedded control projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model Number	JGY-N20S
Motor Type	N20 Worm Gear DC Motor
Commutation	Brush
Rated Voltage	DC 12V
No-Load Speed	30 RPM
No-Load Current	30 mA
Torque Range	0.3 – 3.3 kg·cm
Stall Current	0.7 A
Gearbox Material	Metal
Efficiency Class	IE1
Motor Weight	Approx. 25 g
Shipment Weight	0.0135 kg
Shipment Dimensions	10 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x 1218WAN 30RPM N20 Gear Motor
