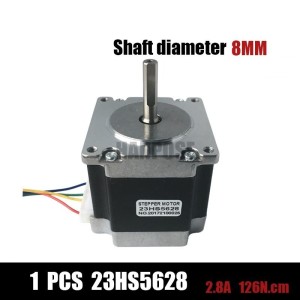

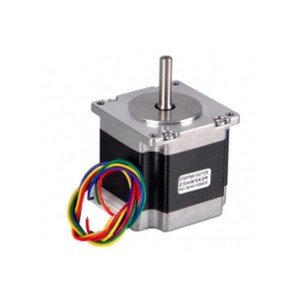

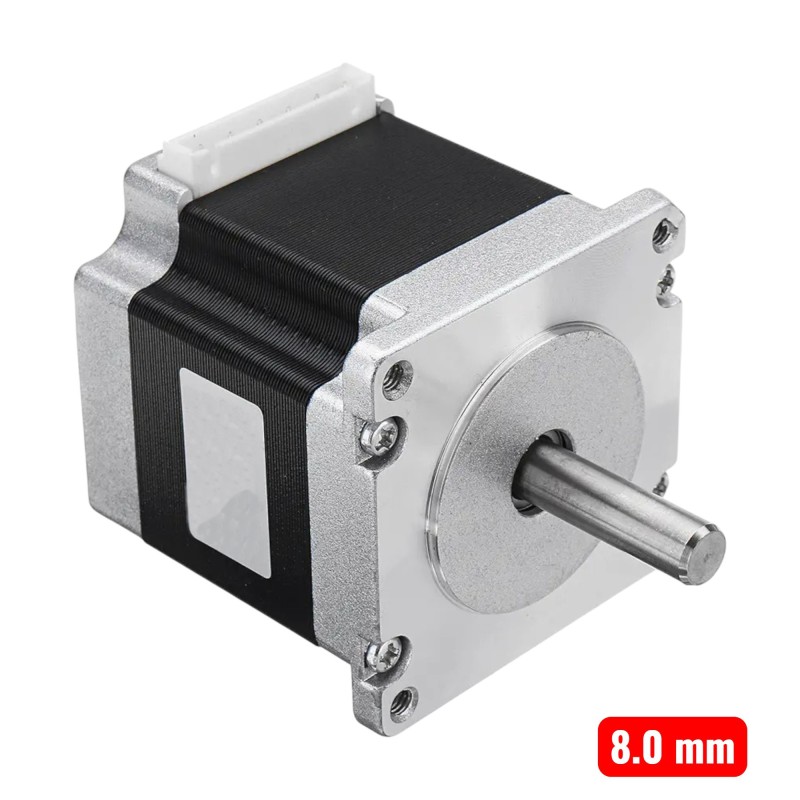

Nema 23 23HS5628 8.0mm Shaft Stepper Motor

RBD-0817

  • Step Angle Step Angle: 1.8 °
  • Current: 2.8 A/Phase
  • Holding Torque: 10.1 N-cm
  • Detent torque: 3.6 N.cm (Maximum)
  • Lead Wires: 4
  • Shaft diameter: 8.00 mm
BDT 2,990BDT 2,990 BDT 2,990 BDT 2,990 BDT 2,990
BDT 2,890 Save BDT 100
BDT 2,890 BDT 2,890 BDT 2,890 BDT 2,890
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 2,990 BDT 2,890 Tax excluded
BDT 2,990 BDT 2,890 Tax included
BDT 0 BDT 0 Tax
BDT 2,990 BDT 2,890 Tax excluded
BDT 0 BDT 0 Tax
BDT 2,990 BDT 2,890 Tax included
Quantity
In-Stock
10 Items

58 people have purchased this item
2 people recently added this item to the cart
10 items in stock
Description

The NEMA 23 23HS5628 8.0mm Shaft Stepper Motor is a high-performance hybrid stepper motor designed for applications that demand strong torque and precision control. Delivering 10.1 kg-cm holding torque at 2.8A per phase, it outperforms standard NEMA 17 motors, making it ideal for heavy-duty CNC machines, 3D printers, and industrial automation. With a standard 1.8° step angle (200 steps/rev), this motor ensures accurate and repeatable movements. Its bipolar 4-wire configuration allows easy interfacing with popular stepper drivers such as the A4988, DRV8825, or TB6600. Built from robust materials, it offers stable performance, low vibration, and long operational life thanks to its brushless construction and high-quality bearings. Whether used in robotics, milling machines, or motion platforms, the NEMA 23 motor ensures reliability, smooth operation, and excellent control response Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High Torque Output: Delivers 10.1 kg-cm (165 oz-in) torque, ideal for demanding applications.

  2. Precision Control: 1.8° step angle for accurate, repeatable motion control.

  3. Strong 8mm Shaft: Ensures firm coupling with gears and pulleys.

  4. Durable Hybrid Construction: Brushless and maintenance-free for long operational life.

  5. Excellent Responsiveness: Quick reaction to start, stop, and reverse pulses.

  6. Cost-Effective Control: Operates via open-loop system—no feedback circuit required.

  7. Wide Compatibility: Works with A4988, DRV8825, and TB6600 stepper drivers.

  8. Industrial-Grade Build: Perfect for CNC routers, laser cutters, and 3D printers.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. CNC machines and milling systems requiring high torque precision.

  2. 3D printers and engraving machines for accurate axis motion.

  3. Robotics arms and automation platforms for smooth controlled movement.

  4. Linear actuators and mechanical positioning systems.

  5. Heavy-duty rotary systems and industrial automation equipment.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model23HS5628
Motor TypeHybrid Bipolar Stepper
Step Angle1.8° (200 steps/rev)
Holding Torque10.1 kg-cm (165 oz-in)
Detent Torque0.36 kg-cm
Operating Voltage2.3V DC
Rated Current2.8A / Phase
Phase Resistance0.83Ω ±10%
Phase Inductance2.2mH ±20%
Number of Leads4 (Bipolar)
Rotor Inertia275 g·cm²
Frame Size57 × 57 mm (NEMA 23)
Motor Length51 mm
Shaft Diameter8 mm
Shaft Length20.6 mm
Shaft TypeRound
Weight650g
Step Accuracy±5%
Voltage TypeDC
ConnectionJST-XH (4-wire)
Shipment Weight0.7 kg
Shipment Dimensions6 × 7 × 7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Nema 23 23HS5628 8.0mm Shaft Stepper Motor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0817
10 Items

Specific References

EAN13
0817
