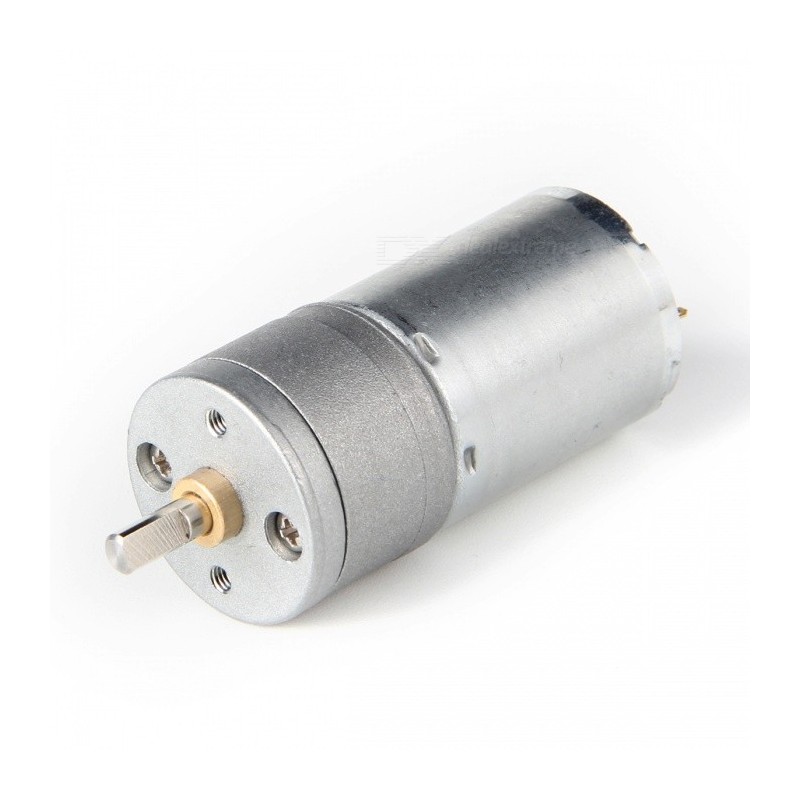

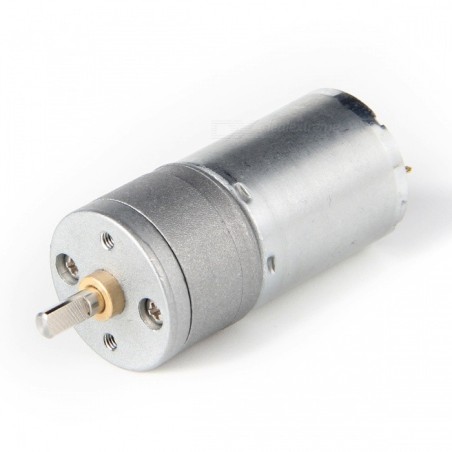

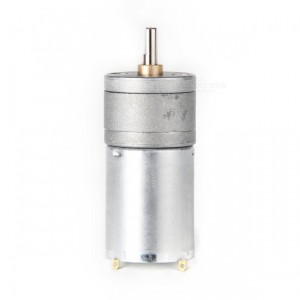

This easy-to-mount GA25-370 DC Gear motor is great for building robots and it comes in a variety of configurations that suit even the most exigent designs. The motor comes in a Small cylinder shape with a diameter of 25 mm and a 4mm diameter shaft and 2 Terminal connectors. RoboticsBD
These motors are designed to produce high torque at very low current consumptions. It is a Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications
This is 12V DC motor which has a gearbox of 25mm diameter same as the motor base body. The 25GA Gear Motor’s gearbox has metal gears and a center shaft. The D-Shape Shaft of the motor is loaded with Metal bush for wear resistance and smooth operation. RoboticsBD
We highly suggest you this motor for the general purpose automation projects requiring considerable torque range. RoboticsBD Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- It has a sturdy construction.
- Low Noise
- Shaft equips metal bushes for long life.
- Metal Gears for High performance
- It comes with High-Quality gears.
- High torque at very low Current Consumptions
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Gear Material | Metal |
| Rated Speed (RPM) | 130 |
| Operating Voltage (VDC) | 12 |
| Rated Torque(kg-cm) | 0.5 |
| Stall Torque(Kg-Cm) | 2 |
| Load Current Max (mA) | 300 |
| No-Load Current (mA) | 85 |
| Motor Diameter(mm) | 25 |
| Motor Length (mm) | 52 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 9.4 |
| Weight (gm) | 89 |
| Shipment Weight | 0.1 kg |
| Shipment Dimensions | 6 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x High Torque Gear Motor 12V 130RPM 25GA
