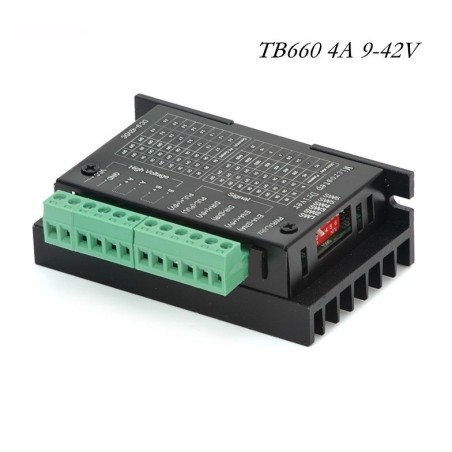

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
- High-Performance Stepper Motor Driver: Controls two-phase stepping motors with precision.
- Wide Voltage Range: Operates between 9V to 42V DC, supporting various power supplies.
- Adjustable Current Output: Supports 0.5A to 4A peak current for flexible motor control.
- Microstepping Capabilities: Offers 7 micro-step settings (1, 2/A, 2/B, 4, 8, 16, 32).
- Reliable and Safe: Features H-Bridge bipolar constant current drive and optocoupler isolation.
Description
The TB6600 Stepper Motor Driver Controller is a professional-grade, high-performance driver designed for precise control of two-phase stepper motors. With a wide input voltage range of 9~42V DC and a peak output current of 4A, it is compatible with a variety of stepper motors, including 57, 42, and 86-type models. The driver supports 7 micro-step modes (up to 32 subdivisions) and 8 adjustable current settings, allowing for smooth and accurate motor operation tailored to your specific needs. Its high-speed optocoupler isolation ensures reliable performance by minimizing high-frequency interference, while the offline retention function enhances safety during operation. The semi-enclosed casing provides durability, making it suitable for demanding environments. Whether you're working on CNC machines, robotics, or automation projects, the TB6600 offers exceptional precision, flexibility, and reliability. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Voltage Range: Operates with a 9~42V DC power supply, suitable for various stepper motors.
Adjustable Micro-Stepping: 7 micro-step modes (1, 2/A, 2/B, 4, 8, 16, 32) for precise motor control.
Customizable Output Current: 8 current settings (0.5A to 4.0A) to match motor requirements.
High-Speed Optocoupler Isolation: Enhances anti-interference capabilities for reliable performance.
Offline Retention Function: Ensures safety by retaining motor position during power loss.
Compact & Durable Design: Semi-enclosed casing protects against harsh environments.
Energy-Saving Mode: Automatic current lock function reduces power consumption.
Easy Setup: 6 DIP switches for quick configuration of micro-step and current settings.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
CNC Machines: Achieve precise control and smooth operation for cutting, engraving, and milling.
3D Printers: Ensure accurate layer-by-layer printing with high micro-step resolution.
Robotics: Power robotic arms and automated systems with reliable motor control.
Automation Systems: Ideal for conveyor belts, pick-and-place machines, and other industrial automation.
DIY Projects: Perfect for hobbyists building custom stepper motor-driven devices.
Educational Tools: Teach motor control and automation concepts with a versatile and easy-to-use driver.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Input Voltage | 9~42V DC |
| Output Current | 0.5~4.0A (adjustable) |
| Control Signal | 3.3~24V TTL |
| Maximum Power | 160W |
| Micro-Step Modes | 1, 2/A, 2/B, 4, 8, 16, 32 |
| Operating Temperature | -10℃ to 45℃ |
| Motor Compatibility | 57, 42, 86-type two-phase stepper motors |
| Isolation | High-speed optocoupler isolation |
| Offline Retention | Yes |
| Energy-Saving Mode | Automatic current lock function |
| Shipment Weight | 0.122 kg |
| Shipment Dimensions | 10 x 8 x 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
