DRV8825 Stepper Motor Driver Module

RBD-0434

  • Supply Voltage: 8.2 – 42 VDC.
  • Current Capacity : 2.2A max(24V).
  • Continuous current per phase: 1.5 A.
  • Minimum Logic voltage: 2.5V.
  • Maximum Logic Voltage: 5V.
  • Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  • Dimensions : 15 x 20 mm.
  • Weight: 4 gm. RoboticsBD
BDT 194BDT 194 BDT 194 BDT 194 BDT 194
BDT 159 Save BDT 35
BDT 159 BDT 159 BDT 159 BDT 159
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 194 BDT 159 Tax excluded
BDT 194 BDT 159 Tax included
BDT 0 BDT 0 Tax
BDT 194 BDT 159 Tax excluded
BDT 0 BDT 0 Tax
BDT 194 BDT 159 Tax included
Quantity
In-Stock
67 Items

128 people have purchased this item
6 people recently added this item to the cart
67 items in stock
Description

The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 micro stepping bipolar stepper motor driver.

The module has a pinout and interface that are nearly identical to those of the A498 Stepper Motor Driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.

The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six micro step resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  2. Simple step and direction control interface
  3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  4. Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  5. Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  6. 45 V maximum supply voltage
  7. Built-in regulator (no external logic voltage supply needed) RoboticsBD
  8. Can interface directly with 3.3 V and 5 V systems
  9. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  10. Short-to-ground and shorted-load protection
  11. 4-layer, 2 oz copper PCB for improved heat dissipation. RoboticsBD
  12. Exposed solder able ground pad below the driver IC on the bottom of the PCB

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Supply Voltage (VDC)8.2 ~ 42
Current Handling Capacity (A)2.2
Continuous Current (A)1.5 (per phase)
Logic Input (V)2.5 ~ 5
Length (mm)15
Width (mm)20
Weight (gm)4
Shipment Weight0.005 kg
Shipment Dimensions4 × 4 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. Datasheet
  2. Official Product Link
  3. DRV8834 Low-Voltage Stepper Motor Driver Carrier
  4. Stepper motor Pololu
  5. A4988 Stepper Motor Driver Carrier

Package Includes :

1 x DRV8825 Stepper Motor Driver Modul.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0434
67 Items

Specific References

EAN13
0434
Comments (0)
Grade
No customer reviews for the moment.
16 other products in the same category:
L298N PCB Driver Module Quad High-Power 4-Channel Smart Auto Motor Driving Board Robotics Bangladesh L298N PCB Driver Module Quad High-Power 4-Channel Smart Auto Motor Driving Board Robotics Bangladesh

Reference: RBD-2390

L298N PCB Driver Module Quad High-Power 4-Channel Smart Auto Motor Driving Board

(0)
Dual Motor Control: Drive two DC motors or one stepper motor with precision. PWM Speed Regulation: Enables smooth and adjustable speed control. Wide Voltage Support: Operates on 5V to 46V power input. Built-In Indicators: Features current probes and direction indicators. Microcontroller Compatible: Works seamlessly with Arduino, Raspberry Pi, and more....
BDT 1,150
BDT 1,150 tax incl.
BDT 1,150 tax excl.
BDT 1,150 tax excl.
BDT 1,150 tax incl.
BDT 1,150 tax incl.
BDT 0 Tax
BDT 1,150 tax excl.
BDT 1,150 tax excl.
BDT 0 Tax
BDT 1,150 tax incl.
More L298N PCB Driver Module Quad High-Power 4-Channel Smart Auto Motor Driving Board
In-Stock
In stock: 10
L298N H-Bridge Dual Motor Driver, Stepper Motor Driver Robotics Bangladesh L298N H-Bridge Dual Motor Driver, Stepper Motor Driver Robotics Bangladesh

Reference: RBD-0376

L298N H-Bridge Dual Motor Driver, Stepper Motor Driver

(0)
Current Sense for each motor. RoboticsBD Heatsink for better performance. Power-On LED indicator. Double H bridge Drive Chip: L298N. Operating Voltage(VDC): 5~35 Peak Current (A): 2 Continuous Current (A): 0-36mA No. of Channels: 2 Over-Current Protection (A): Yes Thermal Protection: Yes
BDT 185
BDT 185 tax incl.
BDT 185 tax excl.
BDT 185 tax excl.
BDT 185 tax incl.
BDT 185 tax incl.
BDT 0 Tax
BDT 185 tax excl.
BDT 185 tax excl.
BDT 0 Tax
BDT 185 tax incl.
More L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
In Stock
In stock: 580
L298P Motor Driver Shield for Arduino Robotics Bangladesh L298P Motor Driver Shield for Arduino Robotics Bangladesh

Reference: RBD-2145

L298P Motor Driver Shield for Arduino

(0)
L298P based Arduino motor driver shield Onboard Buzzer (D4). Onboard Bluetooth interface, you can directly plug, no wiring required. Six Analog interface. Forward, Backward steering indicators
BDT 990
BDT 990 tax incl.
BDT 990 tax excl.
BDT 990 tax excl.
BDT 990 tax incl.
BDT 990 tax incl.
BDT 0 Tax
BDT 990 tax excl.
BDT 990 tax excl.
BDT 0 Tax
BDT 990 tax incl.
More L298P Motor Driver Shield for Arduino
In-Stock
In stock: 11
- BDT 1,055 Reduced price Torobot 32 Channel USB UART Servo Motor Controller Robotics Bangladesh Torobot 32 Channel USB UART Servo Motor Controller Robotics Bangladesh

Reference: RBD-0306

Torobot 32 Channel USB UART Servo Motor Controller

(0)
Baud rate (USB): 115200 Baud rate (bluetooth, UART): 9600 Storage Flash capacity: 16M Mode to choose: 4 types Simultaneous controlling servo number: 32 channel Max action groups: 256 groups Communication agreement: UART Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
BDT 3,345 BDT 4,400
BDT 4,400 BDT 3,345 tax incl.
BDT 4,400 BDT 3,345 tax excl.
BDT 4,400 BDT 3,345 tax excl.
BDT 4,400 BDT 3,345 tax incl.
BDT 4,400 BDT 3,345 tax incl.
BDT 0 BDT 0 Tax
BDT 4,400 BDT 3,345 tax excl.
BDT 4,400 BDT 3,345 tax excl.
BDT 0 BDT 0 Tax
BDT 4,400 BDT 3,345 tax incl.
More Torobot 32 Channel USB UART Servo Motor Controller
In-Stock
In stock: 12
ESP32 Brushless Motor Driver Board Module 20A Wireless WiFi Bluetooth Simple FOC Retrofit Module Robotics Bangladesh ESP32 Brushless Motor Driver Board Module 20A Wireless WiFi Bluetooth Simple FOC Retrofit Module Robotics Bangladesh

Reference: RBD-3471

ESP32 Brushless Motor Driver Board Module 20A Wireless WiFi Bluetooth Simple FOC Retrofit Module

(0)
ESP32 Brushless Motor Driver Board 20A with WiFi & Bluetooth Integrated 3-phase MOSFET driver for BLDC motors Supports advanced FOC (Field-Oriented Control) algorithms Programmable via Arduino, ESP-IDF, and SimpleFOC library Ideal for robotics, IoT actuators, and precision automation Compact retrofit module for smart motor control systems
BDT 2,990
BDT 2,990 tax incl.
BDT 2,990 tax excl.
BDT 2,990 tax excl.
BDT 2,990 tax incl.
BDT 2,990 tax incl.
BDT 0 Tax
BDT 2,990 tax excl.
BDT 2,990 tax excl.
BDT 0 Tax
BDT 2,990 tax incl.
More ESP32 Brushless Motor Driver Board Module 20A Wireless WiFi Bluetooth Simple FOC Retrofit Module
In-Stock
In stock: 5

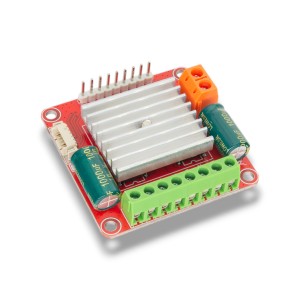

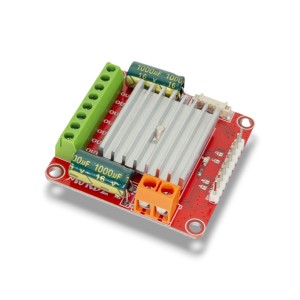

DC Motor Driver Module 4-Channel 6A with PWM Speed Control Robotics Bangladesh DC Motor Driver Module 4-Channel 6A with PWM Speed Control Robotics Bangladesh

Reference: RBD-3658

DC Motor Driver Module 4-Channel 6A with PWM Speed Control

(0)
The 4-Channel 6A DC Motor Driver Module is a high-performance motor controller designed for powerful robotics and automation projects. Supporting up to 4 DC motors and delivering a constant 6A current per channel, this driver is ideal for applications requiring precise speed control and reliable torque. With support for PWM speed regulation, and...
BDT 1,190
BDT 1,190 tax incl.
BDT 1,190 tax excl.
BDT 1,190 tax excl.
BDT 1,190 tax incl.
BDT 1,190 tax incl.
BDT 0 Tax
BDT 1,190 tax excl.
BDT 1,190 tax excl.
BDT 0 Tax
BDT 1,190 tax incl.
More DC Motor Driver Module 4-Channel 6A with PWM Speed Control
In stock
In stock: 10
10A Dual DC Motor Drive Module with PWM Speed Regulation Robotics Bangladesh

Reference: RBD-3144

10A Dual DC Motor Drive Module with PWM Speed Regulation

(0)
Dual-channel 10A DC motor driver module with independent control for each motor Supports PWM speed regulation and forward/reverse direction control Ideal for robotics, automatic curtains, and motion control systems Operates between 3V–18V DC, suitable for low-voltage, high-current motors MOS-based control circuit for efficient and stable performance with...
BDT 845
BDT 845 tax incl.
BDT 845 tax excl.
BDT 845 tax excl.
BDT 845 tax incl.
BDT 845 tax incl.
BDT 0 Tax
BDT 845 tax excl.
BDT 845 tax excl.
BDT 0 Tax
BDT 845 tax incl.
More 10A Dual DC Motor Drive Module with PWM Speed Regulation
In-Stock
In stock: 20
DC Motor Speed Controller PWM 12V Robotics Bangladesh DC Motor Speed Controller PWM 12V Robotics Bangladesh

Reference: RBD-2111

DC Motor Speed Controller PWM 12V

(0)
DC Motor Speed Controller PWM 12V Controls the speed of a DC motor using Pulse-Width-Modulation (PWM) Provides continuous current of 3A to the motor or DC load Includes a 3A fuse for protection Supports reverse connection of power supply
BDT 669
BDT 669 tax incl.
BDT 669 tax excl.
BDT 669 tax excl.
BDT 669 tax incl.
BDT 669 tax incl.
BDT 0 Tax
BDT 669 tax excl.
BDT 669 tax excl.
BDT 0 Tax
BDT 669 tax incl.
More DC Motor Speed Controller PWM 12V
In-Stock
In stock: 39

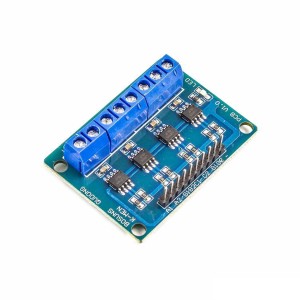

L9110S 4-Channel DC Motor Driver Board Robotics Bangladesh
