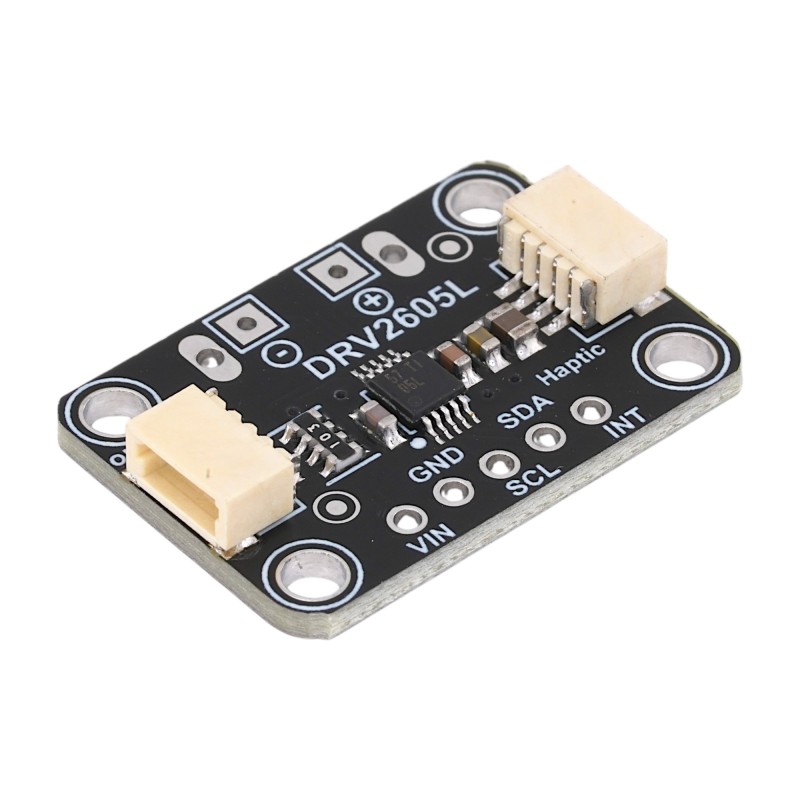

    DRV2605L Haptic Motor Controller Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • DRV2605L Haptic Motor Controller Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • DRV2605L Haptic Motor Controller Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh

    DRV2605L Haptic Motor Controller Module – STEMMA QT / Qwiic Compatible

    RBD-4093

    The DRV2605L is an I2C-controlled haptic motor driver designed for generating precise vibration effects using ERM or LRA motors. It integrates a built-in effects library and supports auto-calibration, making it suitable for haptic feedback in interactive devices, wearables, and embedded systems.

    BDT 890
    BDT 890 BDT 890 BDT 890 BDT 890
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 890 Tax excluded
    BDT 890 Tax included
    BDT 0 Tax
    BDT 890 Tax excluded
    BDT 0 Tax
    BDT 890 Tax included
    Quantity
    Last items in stock
    1 Item

    Only 1 item left in stock
    Description

    Short Description

    The DRV2605L is an I2C-controlled haptic motor driver designed for generating precise vibration effects using ERM or LRA motors. It integrates a built-in effects library and supports auto-calibration, making it suitable for haptic feedback in interactive devices, wearables, and embedded systems.

    Key Features

    • Dedicated haptic motor controller

    • Supports ERM and LRA motors

    • I2C control with optional PWM input

    • Built-in library with 123 preset haptic effects seen in common implementations

    • Auto-calibration for LRA motors

    • Low power standby operation

    • STEMMA QT / Qwiic connector available and compatible

    Technical Specifications

    • Controller IC: DRV2605L

    • Supported Motor Types:

      • ERM (Eccentric Rotating Mass)

      • LRA (Linear Resonant Actuator)

    • Operating Voltage: 2.0V to 5.2V

    • Recommended Logic Levels: 3.3V or 5V

    • Maximum Output Current: Up to 800 mA (instantaneous)

    • Control Interfaces:

      • I2C (default address 0x5A)

      • PWM input

    • Standby Current: Approximately 1 µA

    • Functions:

      • Auto-calibration

      • Low-power modes

    • Module Size: Approximately 25.3 x 17.8 mm

    • Motor Connection: M+ / M- terminals (module dependent)

    • Optional Pin: INT (interrupt output)

    • Country of Origin: Made in China

    Applications / Use Cases

    • Haptic feedback in game controllers

    • Touchscreen vibration feedback

    • Wearables and handheld devices

    • IoT vibration alerts

    • Interactive user interfaces

    • Educational and prototyping projects

    Package Includes

    • 1 x DRV2605L haptic motor controller module

    • 1 x Pin header (not soldered)

    Notes / Warnings

    • Motor voltage must match the connected power supply

    • One motor per module is supported

    • QT cable not included

    • Soldering required for pin header use

    • Effect behavior depends on motor type and calibration

    The DRV2605L haptic motor controller module provides a flexible and efficient solution for generating vibration feedback. With STEMMA QT / Qwiic compatibility and I2C control, it enables quick integration of haptic effects into embedded and interactive electronics projects.
