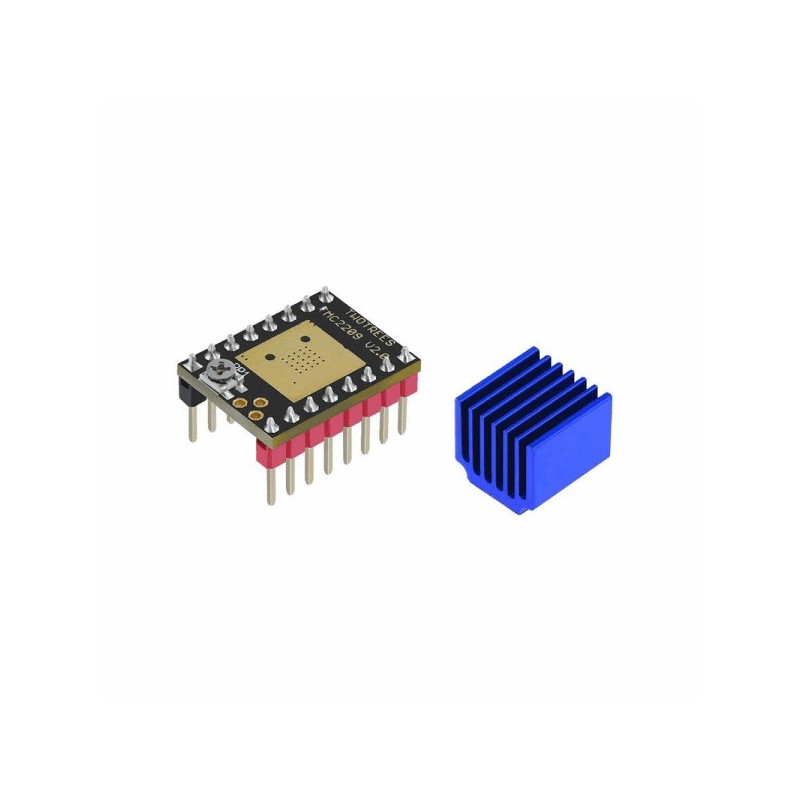

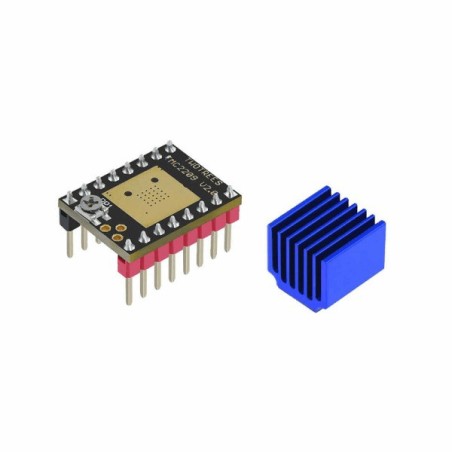

    TMC2209 V2.0 Stepper Motor Driver Module with Heatsink

    RBD-3198

    • TMC2209 V2.0 Stepper Motor Driver Module with heatsink for stable and quiet motor operation.
    • Supports 5.5V–28V input voltage and up to 2.5A output current.
    • Features 1/256 microstepping, StealthChop (silent drive), and SpreadCycle (smooth motion).
    • Compatible with 3.3V and 5V logic levels.
    • Configurable via CFG pins or UART interface.
    • Ideal for 3D printers, CNC machines, robotics, and automation systems.
    BDT 460
    BDT 460 BDT 460 BDT 460 BDT 460
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 460 Tax excluded
    BDT 460 Tax included
    BDT 0 Tax
    BDT 460 Tax excluded
    BDT 0 Tax
    BDT 460 Tax included
    Quantity
    In-Stock
    39 Items

    31 people have purchased this item
    3 people recently added this item to the cart
    39 items in stock
    Description

    The TMC2209 V2.0 Stepper Motor Driver Module is a next-generation motor control solution designed for quiet, precise, and efficient stepper motor operation. Supporting up to 1/256 microstepping and featuring StealthChop and SpreadCycle technologies, it delivers ultra-smooth and silent performance. With a wide voltage range (5.5V–28V), 2.5A current capacity, and dual logic compatibility (3.3V/5V), it’s suitable for a broad range of applications from 3D printing to industrial automation. The included heatsink ensures thermal stability during long operation. Configurable via CFG pins or UART, the TMC2209 offers flexible setup for both hobby and professional users. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Wide Input Range: Operates from 5.5V to 28V for flexible power supply options.

    2. High Current Output: Provides up to 2.5A peak current for demanding motors.

    3. High-Resolution Control: Supports up to 1/256 microstepping for smoother motion.

    4. StealthChop Technology: Enables ultra-quiet motor operation—perfect for 3D printers and home devices.

    5. SpreadCycle Control: Ensures precise, stable motion and optimized torque output.

    6. Dual Logic Compatibility: Works with 3.3V or 5V control signals, ideal for Arduino, STM32, and other MCUs.

    7. Thermal Protection: Automatically limits temperature rise for safe, continuous operation.

    8. Overcurrent and Short-Circuit Protection: Prevents hardware damage under heavy loads.

    9. Flexible Configuration: Supports CFG pins for simple setup or UART mode for advanced control.

    10. Heatsink Included: Improves heat dissipation for long-term stability.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. 3D Printers: Silent and precise motor control for X/Y/Z-axis movements and extruders.

    2. CNC Machines: Enhances stepper accuracy and reduces vibration in milling and engraving tools.

    3. Robotics: Provides smooth and quiet motion in robotic arms and mobile platforms.

    4. Automation Systems: Reliable performance in industrial and factory automation.

    5. DIY Electronics: Ideal for makers building stepper-driven devices and smart motion projects.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelTMC2209 V2.0
    Input Voltage Range5.5V – 28V
    Maximum Output Current2.5A
    Logic Voltage3.3V / 5V compatible
    MicrosteppingUp to 1/256
    Control InterfaceCFG pins / UART
    TechnologiesStealthChop, SpreadCycle
    ProtectionsOvercurrent, overtemperature, low voltage, short circuit
    HeatsinkIncluded
    Applications3D printing, CNC, robotics, automation
    Shipping Weight0.0008 kg
    Shipping Dimensions3 × 2 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x TMC2209 V2.0 Stepper Motor Driver Module with Heatsink
