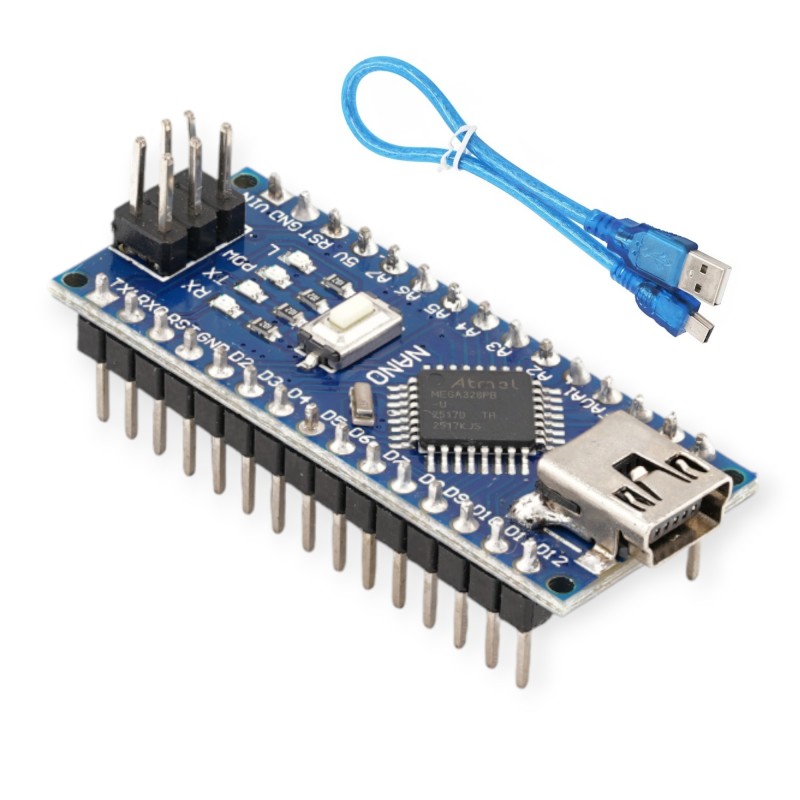

Arduino Nano

Reference RBD-0032

USB Driver: Clone 232 Driver
Operating Voltage (logic level): 5V
With Mini USB
8 analog inputs ports: A0 ~ A7
14 Digital input / output ports: TX, RX, D2 ~ D13
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.
Please select "Old Bootloader" during upload.

Description
Product Details

Description

Arduino Nano is a small, compact version of the Arduino microcontroller board. It is designed for projects that require a small footprint and low power consumption. It is based on the ATmega328P microcontroller and has a similar set of features as the Arduino Uno, including digital inputs/outputs, analog inputs, and PWM outputs. It can be programmed using the Arduino software development environment and is commonly used in projects such as robotics, automation, and home automation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Please select "Old Bootloader" during upload. Install the driver attached below. Use Windows 10 and Arduino Software Version 1.8

Driver: https://store.roboticsbd.com/index.php?controller=attachment&id_attachment=9

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader(old) installed in it (If needed)
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX) and orange (L) LED.
+5V to AREF jumper.
Auto sensing/switching power input.
Small mini-B USB for programming and serial monitor.
ICSP header for direct program download.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model Type	Nano
Color	Blue
Microcontroller	ATmega328
Operating Voltage (VDC)	5
Country of Origin/Manufacture	China
Power Consumption (Watt)	1
Analog I/O Pins	8
Digital I/O Pins	22
PWM Output Pins	6
Architecture	AVR
Clock Speed	16 MHz
DC Current per I/O Pin (mA)	40
Flash Memory	32 KB
EEPROM	1KB
SRAM	2
Dimensions (mm) LxWxH	45x18x5
Weight (gm)	8
Shipment Weight	0.105 kg
Shipment Dimensions	6 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Arduino Nano (Clone 232 Driver)

Product Details

Reference RBD-0032

In stock 324 Items

Specific References

EAN13: 0032

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

DFRduino UNO R3 - Compatible with Arduino Uno Robotics Bangladesh Robotics Bangladesh

Reference: RBD-3583

Brand: DFRobot

DFRduino UNO R3 - Compatible with Arduino Uno

(0)

DFRduino Uno V3.0 from DFRobot is a physical world computing board of small size for academics or development . It is a simple microcontroller board fully compatible with Arduino UNO R3 and Arduino IDE open-source development environment. This environment implements the Processing / Wiring language. Arduino can be used to develop stand-alone interactive...

BDT 1,950

BDT 1,950 tax incl.

BDT 1,950 tax excl.

BDT 1,950 tax incl.

BDT 0 Tax

BDT 1,950 tax excl.

BDT 0 Tax

BDT 1,950 tax incl.

Last items in stock

In stock: 3

Reference: RBD-2268

ESP32 V1.3 Dev Board CH340C NodeMCU-32

(0)

Features WiFi+Bluetooth connectivity with the ESP-WROOM-32 module Accessible I/O pins via extension headers for easy customization Onboard USB CH340 for convenient programming and debugging 2x keys for reset or user-defined functions ESP32S-DEV development board is a cost-effective solution for a wide range of applications.A high-quality USB cable is...

BDT 580

BDT 580 tax incl.

BDT 580 tax excl.

BDT 580 tax incl.

BDT 0 Tax

BDT 580 tax excl.

BDT 0 Tax

BDT 580 tax incl.

In-Stock

In stock: 108

Reference: RBD-3327

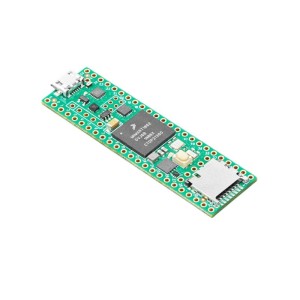

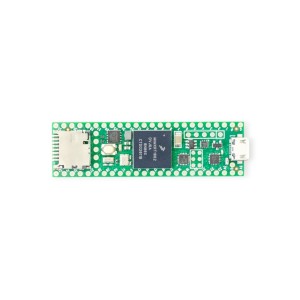

Teensy 4.1 Development Board

(0)

Teensy 4.1 is the most powerful Arduino compatible microcontroller available today. Based on the NXP i.MX RT1062 ARM Cortex-M7 running at 600MHz with the ability to be overclocked. It is formatted into a very compact ‘teensy’ board outline for easy embedding into projects or for use with solderless breadboards. Perhaps best of all, it is compatible...

BDT 8,945

BDT 8,945 tax incl.

BDT 8,945 tax excl.

BDT 8,945 tax incl.

BDT 0 Tax

BDT 8,945 tax excl.

BDT 0 Tax

BDT 8,945 tax incl.

In stock

In stock: 7

Reference: RBD-1761

Cable For Arduino UNO/MEGA (USB A to B)-3.2 Feet/1Meter

(0)

USB Type: Type-A to Type-B Weight: 80 gm. Length: 1m / 3.2Feet Long cable for easy work Fully compatible with the PC. Molded strain relief and PVC over-molding to ensure a lifetime of error-free data transmissions.

BDT 195

BDT 195 tax incl.

BDT 195 tax excl.

BDT 195 tax incl.

BDT 0 Tax

BDT 195 tax excl.

BDT 0 Tax

BDT 195 tax incl.

In-Stock

In stock: 10

Reference: RBD-3117

Milk-V Duo 256MB – SG2002 RISC-V + ARM + 8051 Linux Development Board

(0)

Ultra-compact dual-core RISC-V + 8051 SBC powered by CV1800B processor Runs Linux and RTOS for flexible embedded and AIoT development Integrated 0.5 TOPs TPU for AI vision and image recognition tasks Supports Ethernet, USB 2.0 Type-C, MIPI CSI camera, and MicroSD storage Up to 26 GPIO pins with I²C, SPI, UART, PWM, ADC, and JTAG interfaces Ideal for AIoT,...

BDT 2,650

BDT 2,650 tax incl.

BDT 2,650 tax excl.

BDT 2,650 tax incl.

BDT 0 Tax

BDT 2,650 tax excl.

BDT 0 Tax

BDT 2,650 tax incl.

In-Stock

In stock: 16

Waveshare RP2350-ETH Mini Development Board – RP2350 Microcontroller with Ethernet Port Robotics Bangladesh

Reference: RBD-3717

Brand: Waveshare

Waveshare RP2350-ETH Mini Development Board – RP2350 Microcontroller with Ethernet Port

(0)

RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz 520KB of SRAM, and 4MB of onboard Flash memory Onboard CH9120 with integrated TCP/IP protocol stack 14 ×...

BDT 2,405

BDT 2,405 tax incl.

BDT 2,405 tax excl.

BDT 2,405 tax incl.

BDT 0 Tax

BDT 2,405 tax excl.

BDT 0 Tax

BDT 2,405 tax incl.

In stock

In stock: 9

Reference: RBD-2379

FREENOVE ESP32-S3-WROOM Camera Board Arduino Compatible

(0)

Powerful ESP32-S3-WROOM camera board with onboard wireless capabilities. Compact and easy to use for hobbyists, students, and developers. ESP32-S3-WROOM -> A powerful and small controller with onboard camera and wireless. 1GB Memory Card -> Can be inserted into the ESP32-S3 board to store files. (Included in this kit.) 2 tutorials with MicroPython...

BDT 3,450

BDT 3,450 tax incl.

BDT 3,450 tax excl.

BDT 3,450 tax incl.

BDT 0 Tax

BDT 3,450 tax excl.

BDT 0 Tax

BDT 3,450 tax incl.

In-Stock

In stock: 8

Reference: RBD-3424

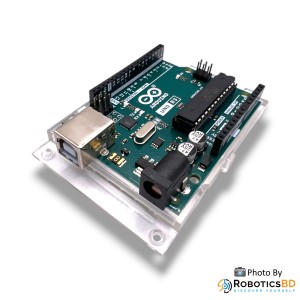

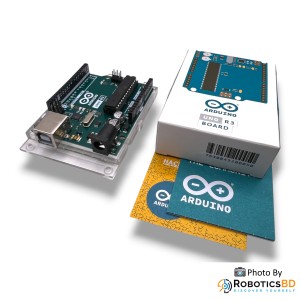

Arduino Uno R3

(0)

Arduino Uno R3 based on ATmega328 microcontroller 14 Digital I/O pins (6 PWM) and 6 Analog inputs 16 MHz clock speed with 32KB Flash memory USB connectivity for easy programming and power Compatible with Arduino IDE and wide shield ecosystem Ideal for robotics, IoT, automation, and educational projectsThis Arduino Uno R3 was sourced from an unofficial...

BDT 2,900

BDT 2,900 tax incl.

BDT 2,900 tax excl.

BDT 2,900 tax incl.

BDT 0 Tax

BDT 2,900 tax excl.

BDT 0 Tax

BDT 2,900 tax incl.

Last items in stock

In stock: 1

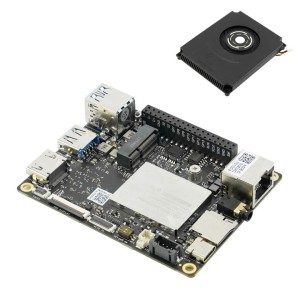

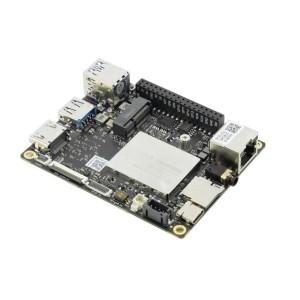

LattePanda IOTA Palm-sized x86 Single Board Computer with Active Cooler Intel N150 8GB RAM 64GB eMMC Robotics Bangladesh

Reference: RBD-3937

Brand: DFRobot

LattePanda IOTA Palm-sized x86 Single Board Computer with Active Cooler Intel N150 8GB RAM 64GB eMMC

(0)

Palm-sized x86 single-board computer featuring an Intel N150 quad-core processor, 8GB of LPDDR5 RAM, and 64GB of eMMC storage. It integrates an RP2040 co-processor for real-time I/O tasks. Include: Ultra-thin heatsink with adjustable-speed fan for efficient cooling of the LattePanda IOTA. Made of aluminum alloy and engineering plastic, features PWM fan...

BDT 25,490

BDT 25,490 tax incl.

BDT 25,490 tax excl.

BDT 25,490 tax incl.

BDT 0 Tax

BDT 25,490 tax excl.

BDT 0 Tax

BDT 25,490 tax incl.

Last items in stock

In stock: 1

Reference: RBD-1215

ATmega328P-PU PDIP-28 Microcontroller

(0)

131 powerful instructions – Most Single Clock Cycle Execution 32 x 8 general purpose working registers Fully static operation Up to 20MIPS throughput at 20MHz On-chip 2-cycle multiplier Write/erase cycles: 10,000 flash/100,000 EEPROM Optional boot code section with independent lock bits In system programming by on-chip boot program True read while write...

BDT 550

BDT 550 tax incl.

BDT 550 tax excl.

BDT 550 tax incl.

BDT 0 Tax

BDT 550 tax excl.

BDT 0 Tax

BDT 550 tax incl.

In-Stock

In stock: 5

Reference: RBD-2679

STM32F103C8T6 ARM STM32 Minimum System Development Board Module

(0)

STM32F103C8T6 ARM Cortex-M3 core board running at 72MHz for efficient embedded applications Type-C interface for fast and convenient connectivity and programming Upgraded BOOT switch enables easy upgrades without jumper caps 64KB Flash memory and 20KB SRAM for enhanced performance compared to C6T6 variant Supports SWD debugging, serial port, USB 2.0 FS,...

BDT 550

BDT 550 tax incl.

BDT 550 tax excl.

BDT 550 tax incl.

BDT 0 Tax

BDT 550 tax excl.

BDT 0 Tax

BDT 550 tax incl.

In-Stock

In stock: 43

Reference: RBD-2367

ESP32 S3-WROOM-1 Dual Type-C USB N16R8 Micropython Board

(0)

ESP32-S3-WROOM-1-N16R8(16M Flash/8SRAM) Powerful ESP32-S3 chip for enhanced processing capabilities Dual Type-C USB ports for easy connectivity Built-in Wi-Fi and Bluetooth for seamless communication 16MB flash memory for ample storage space 8MB PSRAM for efficient multitasking Micropython support for easy programming Ideal for IoT projects, robotics, and...

BDT 889

BDT 889 tax incl.

BDT 889 tax excl.

BDT 889 tax incl.

BDT 0 Tax

BDT 889 tax excl.

BDT 0 Tax

BDT 889 tax incl.

In-Stock

In stock: 98

Reference: RBD-2850

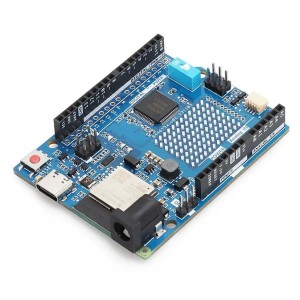

Arduino Uno R4 Wifi

(0)

Next-Gen UNO: Powerful 32-bit board with built-in Wi-Fi and Bluetooth for versatile IoT projects. Enhanced Performance: Increased speed, memory, and processing power compared to previous UNO models. Beginner-Friendly: Maintains the classic UNO form factor and familiar Arduino development environment. Built-in Extras: 12x8 LED matrix, Qwiic connector, and...

BDT 2,398

BDT 2,398 tax incl.

BDT 2,398 tax excl.

BDT 2,398 tax incl.

BDT 0 Tax

BDT 2,398 tax excl.

BDT 0 Tax

BDT 2,398 tax incl.

In-Stock

In stock: 22

STM32 NUCLEO-L476RG Development Board – STM32L476RGT6 ARM Cortex-M4, 1MB Flash, 128KB SRAM Robotics Bangladesh

Reference: RBD-3718

Brand: ST Microelectronics

STM32 NUCLEO-L476RG Development Board – STM32L476RGT6 ARM Cortex-M4, 1MB Flash, 128KB SRAM

(0)

The STM32 NUCLEO-L476RG is a feature-rich development board based on the STM32L476RGT6 microcontroller, equipped with an ARM Cortex-M4 core running at 80 MHz. With 1 MB Flash memory and 128 KB SRAM, this board provides the power and flexibility needed for advanced embedded projects, while also offering ultra-low power performance.

BDT 4,889

BDT 4,889 tax incl.

BDT 4,889 tax excl.

BDT 4,889 tax incl.

BDT 0 Tax

BDT 4,889 tax excl.

BDT 0 Tax

BDT 4,889 tax incl.

Last items in stock

In stock: 2

Espressif ESP32-S3-DevKitC-1-N8R8 Robotics Bangladesh

Reference: RBD-2366

Brand: Espressif

Espressif ESP32-S3-DevKitC-1-N8R8

(0)

Wi-Fi + Bluetooth LE MCU Module with complete wireless functionality for versatile IoT applications. Pin headers for easy interfacing; ideal jumper wire connections. USB-to-UART bridge for power supply, programming, and communication with speeds up to 3 Mbps. Neural network acceleration and signal processing support for advanced workloads. RGB LED and...

BDT 4,150

BDT 4,150 tax incl.

BDT 4,150 tax excl.

BDT 4,150 tax incl.

BDT 0 Tax

BDT 4,150 tax excl.

BDT 0 Tax

BDT 4,150 tax incl.

In-Stock

In stock: 4

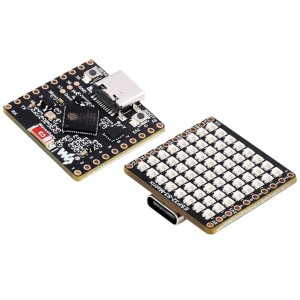

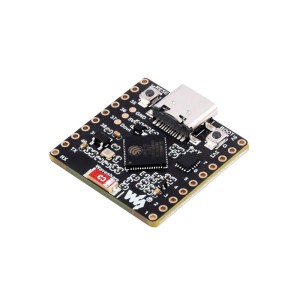

ESP32-S3 RGB Matrix Dev Board with IMU and Wi-Fi + BLE Robotics Bangladesh
