The ESP32-S Screw Terminal Adapter is a practical breakout board designed to simplify prototyping and project wiring with 38-pin ESP32-S development boards. Featuring both screw terminals and female headers, this adapter provides a secure and flexible way to connect sensors, modules, and external devices without soldering. Each terminal corresponds to an individual ESP32 pin and is clearly labeled for easy identification, eliminating the frustration of bottom-printed pinouts. Perfect for IoT, automation, robotics, and educational applications, this adapter ensures neat, organized, and reliable connectivity. Its compact yet robust design fits easily into enclosures and development setups, making it a must-have accessory for ESP32 developers. (ESP32 board not included.) Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Secure Wiring Interface: Screw terminals provide stable and reusable wire connections for each I/O pin.
Dual Connectivity: Includes female headers for quick jumper cable or module attachment.
Clear Pin Labeling: Every pin is clearly marked for easy reference and wiring accuracy.
Full Pin Breakout: Access all 38 pins of the ESP32-S board conveniently.
Compact & Robust: Small PCB (77×63mm) ideal for compact enclosures or project boxes.
High-Quality Build: Made from durable PCB material with precision terminals.
Plug-and-Play Setup: No soldering required—simply plug in your ESP32-S board and start connecting.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
IoT Projects: Easily connect sensors and actuators for smart devices.
Home Automation: Reliable wiring interface for relays, switches, and control modules.
Robotics: Use with motor drivers, encoders, and servo systems for clean wiring.
Prototyping and Development: Ideal for testing circuits and debugging setups.
Educational and Research Projects: Simplifies learning and experimenting with ESP32 hardware.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Compatible Board | ESP32-S (38-pin) |
| Screw Terminals | 38 (one per pin) |
| Female Headers | 38-pin dual row |
| PCB Dimensions | 77 × 63 mm |
| Material | High-quality PCB |
| Pin Labeling | Printed reference for all pins |
| Mounting Type | Desktop or enclosure compatible |
| Country of Origin | China |
| Included Items | Screw Terminal Adapter only (ESP32 not included) |
| Shipment Weight | 0.058 kg |
| Shipment Dimensions | 9 × 7 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Technical Specifications
| Specification | Details |
|---|
| Compatible Board | ESP32-S (30-pin) |
| Screw Terminals | 30 (one for each pin) |
| Female Headers | 30-pin female headers for easy jumper connections |
| PCB Dimensions | 77 x 63mm (3" x 2.5") |
| Material | High-quality PCB |
| Country of Origin | China
|
How to Use

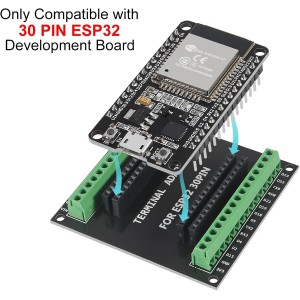

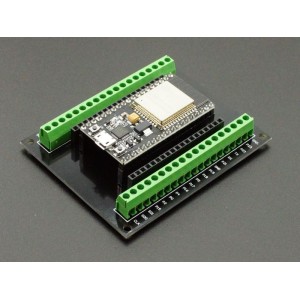

- Insert Your ESP32-S Board: Align and plug your 30-pin ESP32-S board into the female headers.
- Connect External Components: Use screw terminals to connect wires securely for external sensors, actuators, and other devices.
- Use Female Headers for Quick Prototyping: Make temporary jumper connections to a breadboard or peripheral modules without using the screw terminals.
- Verify Connections: Ensure all wires are secured properly in the screw terminals before powering on your setup.
Package Includes:
1 x ESP32-S 30Pin Screw Terminal Adapter
