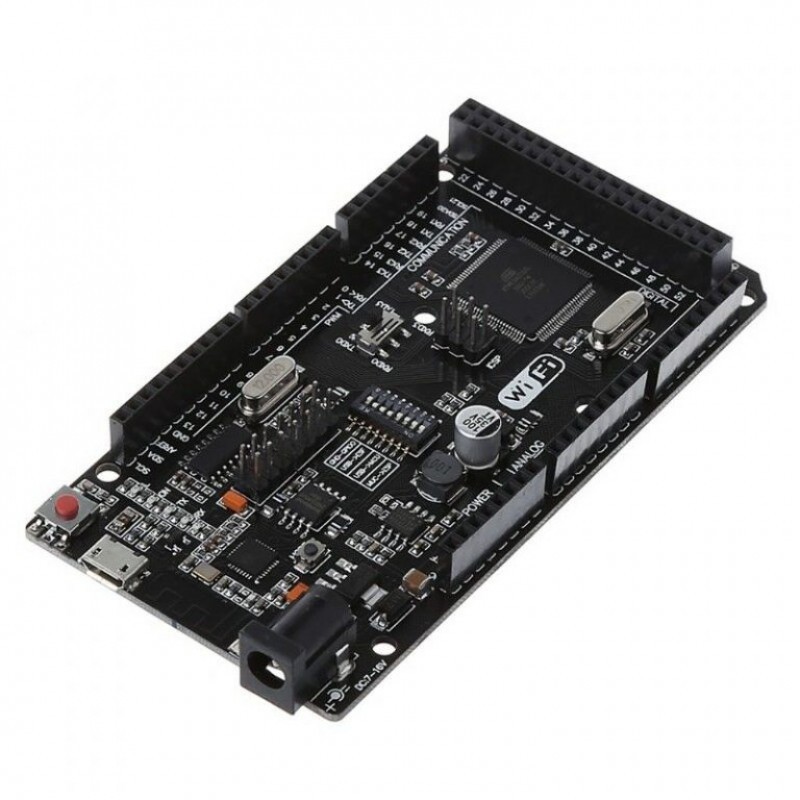

NodeMCU Mega WiFi R3 Atmega2560 ESP8266 32Mb Memory Board

Reference RBD-2138

Arduino compatibility
Full integration
USB-TTL converter
32 Mb flash memory
Dual microcontrollers

A high-quality USB cable is essential for this board to ensure sufficient current supply; otherwise, your board may not be recognized by the Windows Device Manager. Please avoid using mobile phone cables and instead use the recommended cable available here: High-Quality USB Cable.

Description
Product Details

Description

Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible For Arduino Mega is Full integration on one board Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb.

All of the modules can work together or separately. And everyone has their own pinout headers. The convenient solution for the development of new projects requiring Uno and WiFi. Via USB you can update sketches and firmware for ATmega328 and for ESP8266. Featured By RoboticsBD.

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently.

For this onboard have the USB-serial converter CH340G. Use this board is very simple. The board has DIP-switch, to connect the modules. For example, to USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The operating mode is selected by means of DIP switches on-board:

Switch status and model selection:

Connection↓/Switch No.→	1	2	3	4	5	6	7	8
CH340 connect to ESP8266 (upload sketch)	OFF	OFF	OFF	OFF	ON	ON	ON	NoUSE
CH340 connect to ESP8266 (connect)	OFF	OFF	OFF	OFF	ON	ON	OFF	NoUSE
CH340 connect to ATmega2560 (upload sketch)	OFF	OFF	ON	ON	OFF	OFF	OFF	NoUSE
CH340 connect to Mega2560 COM3 connect to ESP8266	ON	ON	ON	ON	OFF	OFF	OFF	NoUSE
Mega2560+ESP8266	ON	ON	OFF	OFF	OFF	OFF	OFF	NoUSE
All modules work independently	OFF	OFF	OFF	OFF	OFF	OFF	OFF	NoUSE

Features:

Dual microcontroller design: The board features both the Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC on the same board. These two microcontrollers can work together or independently, providing flexibility and versatility.
32 Mb flash memory: With 32 megabits of flash memory, the board has plenty of space to store firmware and software applications.
USB-TTL converter: The CH340G USB-TTL converter provides a simple and reliable way to connect the board to a computer for programming and debugging.
Arduino compatibility: The board is fully compatible with the Arduino Mega R3, making it easy to use with existing Arduino libraries and code.
Wireless connectivity: The board's integrated Wi-Fi module allows for wireless communication, making it ideal for IoT applications and smart home automation projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Smart home automation: The board's Wi-Fi capabilities and compatibility with Arduino libraries make it an ideal platform for developing smart home automation systems, such as remote lighting control, temperature and humidity sensors, and security systems.
IoT applications: With its dual microcontroller design and wireless connectivity, the board is well-suited for a wide range of IoT applications, including smart agriculture, industrial automation, and energy management systems.
Robotics: The board's versatility and compatibility with Arduino libraries and shields make it an excellent platform for developing robotic systems and control applications.
Sensor networks: The board's integrated Wi-Fi module and compatibility with a wide range of sensors make it an excellent choice for developing sensor networks for environmental monitoring, smart agriculture, and other applications.
Education: The board's open-source design and compatibility with Arduino libraries make it an excellent platform for teaching microcontroller programming, embedded systems development, and other topics related to digital electronics and IoT.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Length (mm)	106
Width (mm)	54
Height (mm)	12
Weight (gm)	40
Shipment Weight	0.043 kg
Shipment Dimensions	12 × 8 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Arduino MEGA 2560 With WiFi Built-in - ESP8266

Package Includes:

1 x NodeMCU Mega WiFi R3 Atmega2560 ESP8266 32Mb Memory Board

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2138

In stock 18 Items

Specific References

EAN13: 2138

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-4005

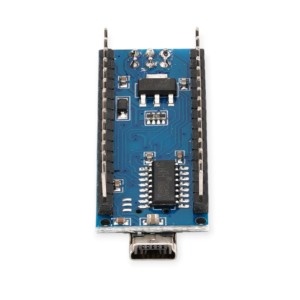

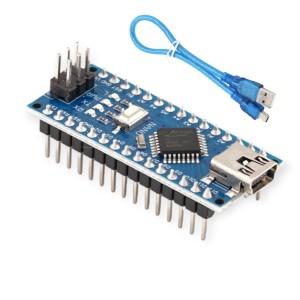

Arduino Nano CH340

(0)

USB Driver: Original CH340 Driver Operating Voltage (logic level): 5V With Mini USB 8 analog inputs ports: A0 ~ A7 14 Digital input / output ports: TX, RX, D2 ~ D13 1 pair of TTL level serial transceiver ports RX / TX Using Atmel Atmega328P-AU MCU There is a bootloader installed in it Standard 0.1” spacing DIP (breadboard friendly). Manual reset switch....

BDT 450

BDT 450 tax incl.

BDT 450 tax excl.

BDT 450 tax incl.

BDT 0 Tax

BDT 450 tax excl.

BDT 0 Tax

BDT 450 tax incl.

In-Stock

In stock: 190

Reference: RBD-1407

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera

(0)

Setup Instructions: 1. Do not upload any code initially—the board we’ve provided already comes with default firmware preloaded. 2. To test the ESP32-CAM, first connect the camera ribbon cable to the board. (Important) 3. Insert an SD Card. (Important) 4. Use an MB programmer board and power the setup with a high-quality USB cable. (Important) 5. Then, on...

BDT 940

BDT 940 tax incl.

BDT 940 tax excl.

BDT 940 tax incl.

BDT 0 Tax

BDT 940 tax excl.

BDT 0 Tax

BDT 940 tax incl.

In-Stock

In stock: 165

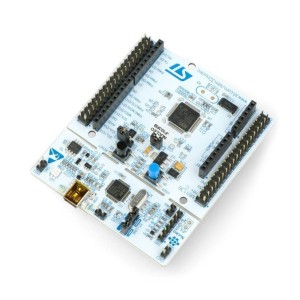

STM32 NUCLEO-F103RB Development Board – STM32F103RBT6, ARM Cortex-M3, 128KB Flash, 20KB SRAM Robotics Bangladesh

Reference: RBD-3721

Brand: ST Microelectronics

STM32 NUCLEO-F103RB Development Board – STM32F103RBT6, ARM Cortex-M3, 128KB Flash, 20KB SRAM

(0)

The STM32 NUCLEO-F103RB is a versatile development board based on the STM32F103RBT6 microcontroller, featuring a 32-bit ARM Cortex-M3 core running at 72 MHz. With 128 KB Flash memory and 20 KB SRAM, this board delivers solid performance for a wide range of embedded applications.

BDT 3,698

BDT 3,698 tax incl.

BDT 3,698 tax excl.

BDT 3,698 tax incl.

BDT 0 Tax

BDT 3,698 tax excl.

BDT 0 Tax

BDT 3,698 tax incl.

Last items in stock

In stock: 3

Reference: RBD-1541

37 In 1 Sensor Module Board Set Kit For Arduino with Box

(0)

For beginners who are interested in Arduino A complete set of Arduino’s most common and useful electronic components Infrared sensor receiving module Laser sensor module Temperature and humidity sensor module Infrared sensor module 5v relay module Obstacle avoidance sensor module.

BDT 1,990

BDT 1,990 tax incl.

BDT 1,990 tax excl.

BDT 1,990 tax incl.

BDT 0 Tax

BDT 1,990 tax excl.

BDT 0 Tax

BDT 1,990 tax incl.

In-Stock

In stock: 4

Reference: RBD-1217

Nextion NX3224T024 - Generic 2.4" TFT LCD Touch Display

(0)

Nextion is a seamless Human Machine Interface (HMI) solution. Nextion provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.

BDT 3,099

BDT 3,099 tax incl.

BDT 3,099 tax excl.

BDT 3,099 tax incl.

BDT 0 Tax

BDT 3,099 tax excl.

BDT 0 Tax

BDT 3,099 tax incl.

In-Stock

In stock: 8

Reference: RBD-2309

ESP8285 ESP-M2 Development Board

(0)

ESP8285 ESP-M2 Development Board with built-in 1MB FLASH memory Features the reliable ESP8266 processor with full WiFi functionality Pre-programmed with NodeMCU Lua firmware for quick project setup Compact, solder-friendly design with onboard PCB antenna Ideal for smart home automation, IoT projects, and sensor networks

BDT 395

BDT 395 tax incl.

BDT 395 tax excl.

BDT 395 tax incl.

BDT 0 Tax

BDT 395 tax excl.

BDT 0 Tax

BDT 395 tax incl.

In-Stock

In stock: 10

Reference: RBD-3753

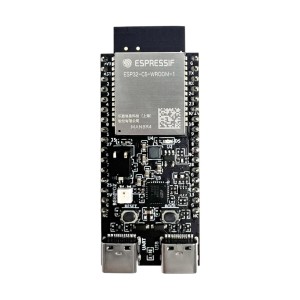

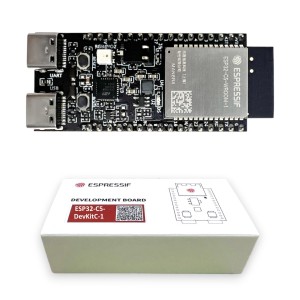

Espressif 2.4 & 5 GHz Dual-Band Wi-Fi 6 ESP32-C5-DevKitC-1-N8R4

(0)

Original Espressif ESP32-C5-DevKitC-1 with ESP32-C5-WROOM-1-N8R4 module Supports dual-band Wi-Fi 6 (2.4 & 5 GHz) with MU-MIMO, OFDMA & TWT Integrated Bluetooth 5.0 LE, Zigbee 3.0, and Thread 1.3 connectivity Powered by RISC-V single-core CPU (240 MHz) + low-power 40 MHz core Features USB-C interface, 8 MB PSRAM & 4 MB flash memory...

BDT 4,150

BDT 4,150 tax incl.

BDT 4,150 tax excl.

BDT 4,150 tax incl.

BDT 0 Tax

BDT 4,150 tax excl.

BDT 0 Tax

BDT 4,150 tax incl.

In-Stock

In stock: 4

Reference: RBD-3124

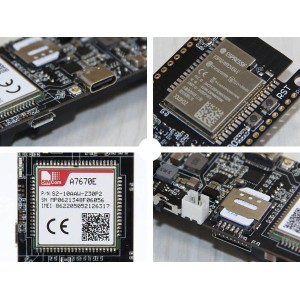

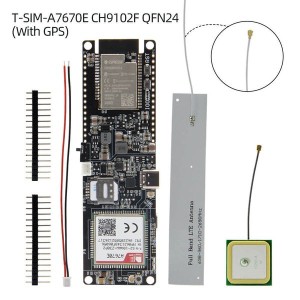

LILYGO TTGO T-A7670E-R2 Built-in GPS R2 4G LTE Development Board

(0)

ESP32-based 4G LTE IoT board with integrated GSM, LTE, and GPS (GNSS) support Features A7670E LTE module for reliable cellular connectivity across global bands Built-in Wi-Fi, Bluetooth v4.2, and multiple interface options (I2C, SPI, UART, CAN, I2S) Equipped with 4MB Flash and 8MB PSRAM for complex applications Supports GNSS (GPS, Beidou, Glonass) for...

BDT 7,950

BDT 7,950 tax incl.

BDT 7,950 tax excl.

BDT 7,950 tax incl.

BDT 0 Tax

BDT 7,950 tax excl.

BDT 0 Tax

BDT 7,950 tax incl.

In-Stock

In stock: 10

Reference: RBD-3269

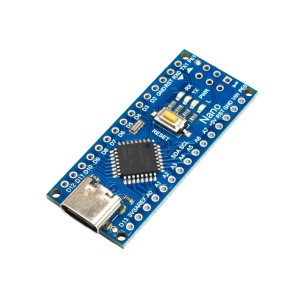

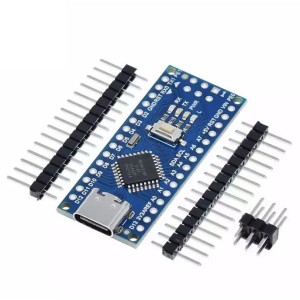

Arduino Nano CH340G Development Board -Type C

(0)

Arduino Nano-compatible development board powered by ATmega328P microcontroller. Features a modern USB Type-C connector for power and programming. Equipped with CH340G USB-to-serial chip for stable communication. Compact, breadboard-friendly design for easy prototyping. Fully compatible with Arduino IDE and existing Nano libraries. Ideal for IoT,...

BDT 480

BDT 480 tax incl.

BDT 480 tax excl.

BDT 480 tax incl.

BDT 0 Tax

BDT 480 tax excl.

BDT 0 Tax

BDT 480 tax incl.

In-Stock

In stock: 25

Reference: RBD-1218

Nextion NX8048T050 - 5.0" LCD TFT HMI Touch Display

(0)

Model No.:NX8048T050 Display Type:011R(R:Resitive Touchscreen) Operating Voltage (VDC):4.75 ~ 7 Max. Operating Current (mA):410 Touch Type: Resistive Colors:65K (65536)

BDT 10,590

BDT 10,590 tax incl.

BDT 10,590 tax excl.

BDT 10,590 tax incl.

BDT 0 Tax

BDT 10,590 tax excl.

BDT 0 Tax

BDT 10,590 tax incl.

In-Stock

In stock: 14

On sale!

STM32F103C8T6 Blue Pill Development Board - Soldered Headers Robotics Bangladesh

Reference: RBD-2917

STM32F103C8T6 Blue Pill Development Board Imported Chipset - Soldered Headers

(0)

100% Brand new and high quality STM32 Board Model: STM32F103C8T6. Core: ARM 32 Cortex-M3 CPU. Debug mode: SWD. 72MHz work frequency. 64K flash memory, 20K SRAM. RoboticsBD 2.0-3.6V power, I/O.

BDT 575

BDT 575 tax incl.

BDT 575 tax excl.

BDT 575 tax incl.

BDT 0 Tax

BDT 575 tax excl.

BDT 0 Tax

BDT 575 tax incl.

In-Stock

In stock: 26

Espressif ESP32-DevKitC ESP32-WROOM-32UE Robotics Bangladesh

Reference: RBD-3751

Brand: Espressif

Espressif ESP32-DevKitC ESP32-WROOM-32UE

(0)

Original Espressif ESP32-DevKitC V4 development board with ESP32-WROOM-32UE Compact design with most I/O pins broken out for easy prototyping Supports Wi-Fi (802.11 b/g/n) and Bluetooth for wireless applications Operates on 3.3V to 5V, ideal for breadboards and jumper wire connections Wide temperature range: -40°C to +85°C, suitable for industrial...

BDT 2,750

BDT 2,750 tax incl.

BDT 2,750 tax excl.

BDT 2,750 tax incl.

BDT 0 Tax

BDT 2,750 tax excl.

BDT 0 Tax

BDT 2,750 tax incl.

In-Stock

In stock: 4

Reference: RBD-3595

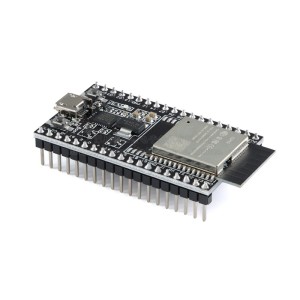

ESP32 WROOM-32D CP2102 Development Board with Micro USB (Micro-B)

(0)

The ESP32 WROOM-32D CP2102 Development Board with Micro USB offers a reliable and efficient platform for embedded development, featuring the versatile ESP32-WROOM-32D module. Equipped with the CP2102 USB-to-serial interface and Micro USB port, this board provides seamless connectivity for uploading code and serial communication. It is well-suited for DIY...

BDT 660

BDT 660 tax incl.

BDT 660 tax excl.

BDT 660 tax incl.

BDT 0 Tax

BDT 660 tax excl.

BDT 0 Tax

BDT 660 tax incl.

In stock

In stock: 45

Espressif ESP32-S3-DevKitC-1-N8R8 Robotics Bangladesh

Reference: RBD-2366

Brand: Espressif

Espressif ESP32-S3-DevKitC-1-N8R8

(0)

Wi-Fi + Bluetooth LE MCU Module with complete wireless functionality for versatile IoT applications. Pin headers for easy interfacing; ideal jumper wire connections. USB-to-UART bridge for power supply, programming, and communication with speeds up to 3 Mbps. Neural network acceleration and signal processing support for advanced workloads. RGB LED and...

BDT 4,150

BDT 4,150 tax incl.

BDT 4,150 tax excl.

BDT 4,150 tax incl.

BDT 0 Tax

BDT 4,150 tax excl.

BDT 0 Tax

BDT 4,150 tax incl.

In-Stock

In stock: 4

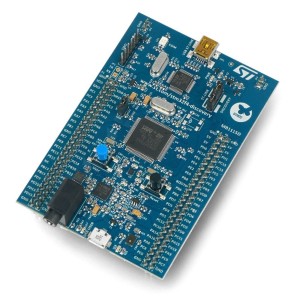

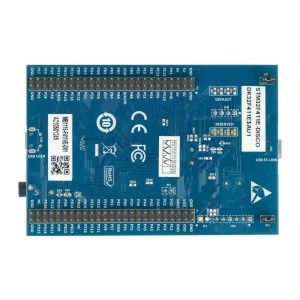

STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller Robotics Bangladesh

Reference: RBD-3170

Brand: ST Microelectronics

STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller

(0)

STM32F411E Discovery Kit featuring the powerful STM32F411VET6 Cortex-M4F microcontroller. 100 MHz ARM Cortex-M4F core with 512 KB Flash and 128 KB RAM for advanced embedded projects. Integrated motion sensors (accelerometer + gyroscope) for robotics and motion applications. Onboard audio system with MEMS microphone and DAC audio converter for multimedia...

BDT 4,966

BDT 4,966 tax incl.

BDT 4,966 tax excl.

BDT 4,966 tax incl.

BDT 0 Tax

BDT 4,966 tax excl.

BDT 0 Tax

BDT 4,966 tax incl.

Last items in stock

In stock: 3

Reference: RBD-4000

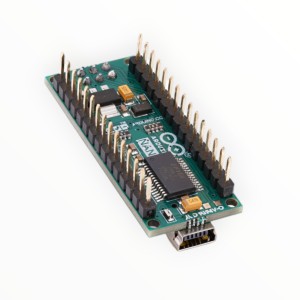

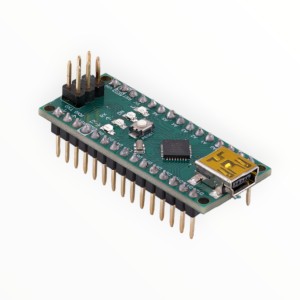

Arduino Nano
