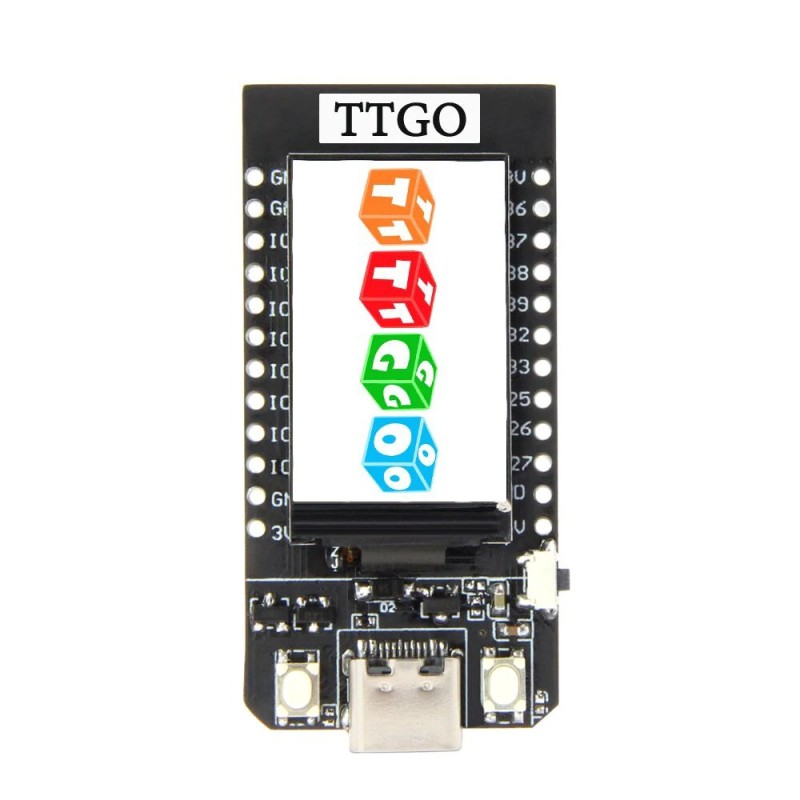

LILYGO® TTGO T-Display ESP32 WiFi And Bluetooth Development Board

Reference RBD-1806

Based on ESP32 240MHz Xtensa dual-core 32-bit microprocessor
Operating Voltage: 2.7V – 4.2V
Working Current: 60mA
Battery Charging Current: 500mA

Description
Product Details

Description

This is TTGO board is based on the ESP32-D0WDQ6 Wifi Module comes with a built-in 1.14inch display and also it has an onboard battery connector and battery management system. The board has an onboard USB Type – C connector which can be used to provide power and to upload code to the ESP32.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Easy to Use
LOW Energy Consumption
Wide Application
Long Life
Colorful Display
Battery-powered charging circuit
Custom Button. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Hardware Specifications
Chipset	ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH	QSPI flash 4MB /16MB
SRAM	520 kB SRAM
Button	Reset
Modular interface	UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、ADC、DACLNA pre-amplifier
Display	IPS ST7789V 1.14 Inch
Working voltage	2.7V-4.2V
Working current	About 67MA
Sleep current	About 350uA
Working temperature range	-40℃ ~ +85℃
Size&Weight	51.5225.048.54mm(7.81g)
Power Supply Specifications
Power Supply	USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery
JST Connector	2Pin 1.25mm
USB	Type-C
Wi-Fi
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC（esp32 chip）
Protocol	802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth
Protocol	Meet BLE v4.2BR/EDR and BLE standard
Radio frequency	With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software specification
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA（Through network/host to download and write firmware）
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS
Operating Voltage (VDC)	2.7 ~ 4.2
Max. Operating Current (mA)	60
Working Temperature Range (°C)	-40 to 85
Length (mm)	51.52
Width (mm)	25.04
Height (mm)	8.5
Weight (gm)	7.81
Shipment Weight	0.012 kg
Shipment Dimensions	8 × 8 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Xinyuan-LilyGO/TTGO-T-Display

Package Includes:

1 x TTGO ESP32 WiFi and Bluetooth Development Board with 1.14″ LCD Display

1 x Battery Connector

2 x 12 Pin Male Header.
