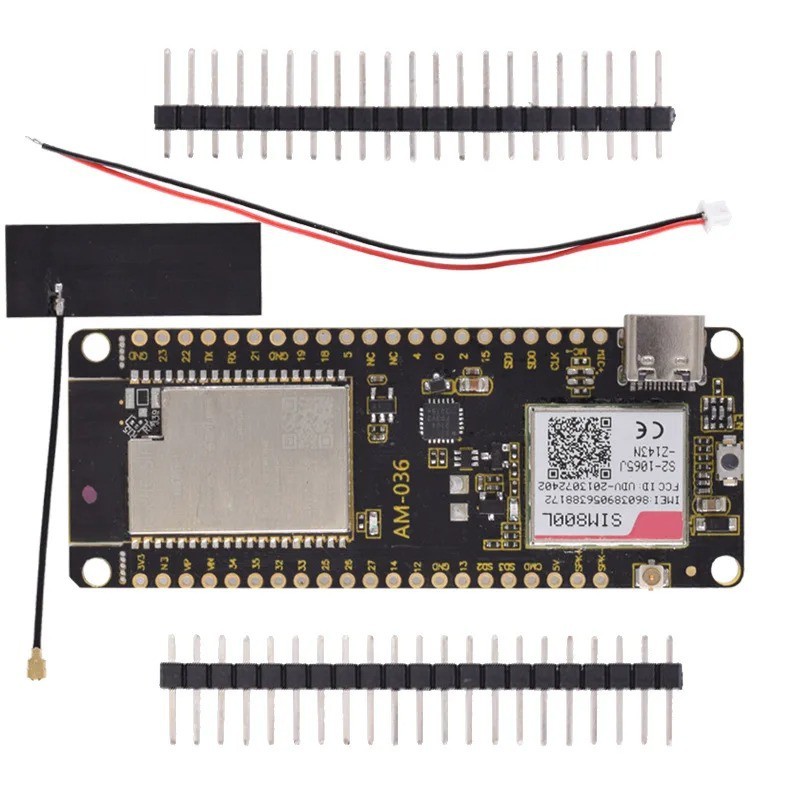

    TTGO T-Call ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board Robotics Bangladesh
    • TTGO T-Call ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board Robotics Bangladesh
    • TTGO T-Call ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board Robotics Bangladesh
    • TTGO T-Call ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board Robotics Bangladesh

    TTGO T-Call AM-036 ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board

    RBD-1412

    • Chipset :ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
    • FLASH: QSPI flash 4MB / PSRAM 8MB
    • SRAM:520 kB SRAM
    • Button: Reset
    • USB to TTL: CP2104
    • Modular interface: UART,SPI,SDIO,I2C,PWM,TV PWM,I2S,IRGPIO
    • On-board clock:40MHz crystal oscillator
    • Working voltage:2.7V-3.6V
    • Working current: About 70mA

      Note : AM-036 printed on board working remains same.
    BDT 2,295
    BDT 2,295 BDT 2,295 BDT 2,295 BDT 2,295
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,295 Tax excluded
    BDT 2,295 Tax included
    BDT 0 Tax
    BDT 2,295 Tax excluded
    BDT 0 Tax
    BDT 2,295 Tax included
    Quantity
    In-Stock
    13 Items

    112 people have purchased this item
    13 items in stock
    Description

    This is a TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered. The module is used for wireless communication. The ESP V1.4 ESP32 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. RoboticsBD

    This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.  Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. The SIM800L wireless communication module is integrated with an ESP32 chip with a dual-core 32-bit LX6 microprocessor.
    2. The SIM800L ESP32 wireless module needs a power supply of 5V/1A and has a Type C port.
    3. The ESP32 SIM800L wireless communication module features 802.11 b/g/n wifi protocol and Bluetooth v4.2BR/EDR and BLE standard protocol.
    4. This wireless communication module supports cloud server development and SDK for user firmware development.

    Detailed Features:

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Detailed Features
    Hardware Specifications
    ChipsetESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
    FLASHQSPI flash 4MB / PSRAM 8MB
    SRAM520 kB SRAM
    ButtonReset
    USB to TTLCP2104
    Modular interfaceUART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
    On-board clock40MHz crystal oscillator
    Working voltage2.7V-3.6V
    Working currentAbout 70mA
    Sleep currentAbout 300uA
    SIM cardOnly supports Nano SIM card
    Working temperature range-40℃ ~ +85℃
    Size Weight78.83mm*28.92mm*8.06mm(11.77g)
    Power Supply Specifications
    Power SupplyUSB 5V/1A
    Charging current500mA
    Battery3.7V lithium battery
    JST Connector2Pin 1.25mm
    USBType-C
    Wi-Fi
    StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
    Protocol802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
    Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
    Transmit Power22dBm
    Communication distance300m
    Bluetooth
    Protocolmeet bluetooth v4.2BR/EDR and BLE standard
    Radio frequencywith -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
    Audio frequencyCVSD&SBC audio frequency
    Software specification
    Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
    Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
    Encryption TypeAES/RSA/ECC/SHA
    Firmware upgradeUART download/OTA(Through network/host to download and write firmware)
    Software DevelopmentSupport cloud server development /SDK for user firmware development
    Networking protocolIPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
    User ConfigurationAT + Instruction set, cloud server, android/iOSapp
    OSFreeRTOS

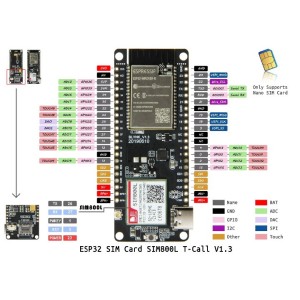

    Pinout:

    1 x T-Call V1.3

    General Specification
    ChipsetESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
    FLASHQSPI flash 4MB / PSRAM 8MB
    SRAM520 kB
    USB to TTLCP2104
    On-board clock40MHz crystal oscillator
    Working voltage2.7V-3.6V
    Working current70mA
    SIM cardOnly supports Nano SIM card
    Power SupplyUSB 5V/1A
    USBType-C
    Working Temperature Range (°C)-40 to 85
    Length (mm)77
    Width (mm)29
    Height (mm)12
    Weight (gm)17
    Shipment Weight0.02 kg
    Shipment Dimensions9 × 5 × 1 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. T-Call-SIM800
    2. Seeeduino GPRS Wiki

    Package Includes:

    1 x TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1412
    13 Items

    Specific References

    EAN13
    1412
