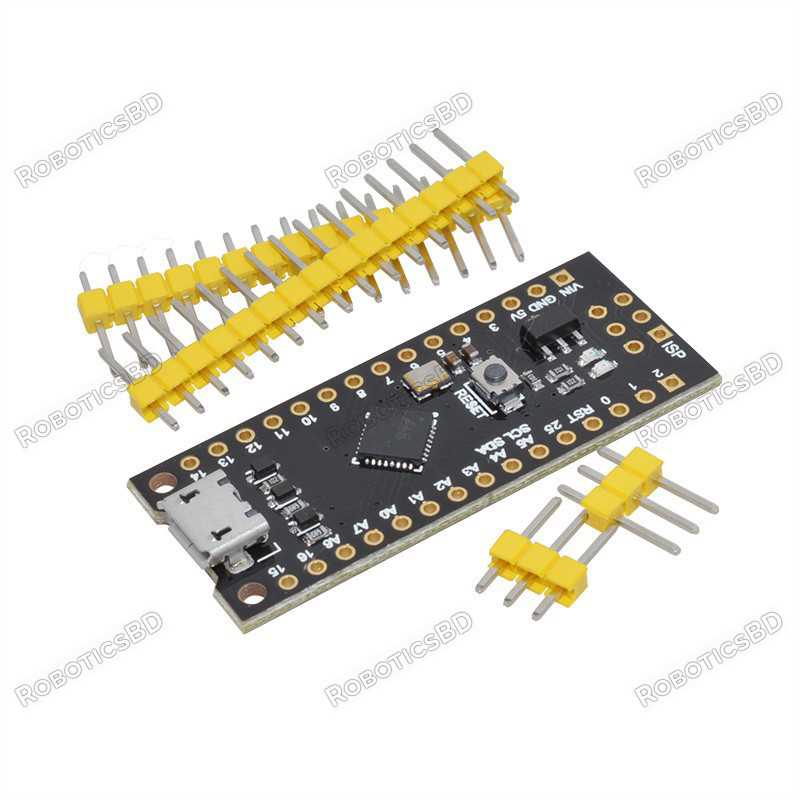

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much. The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headers (included) and easy to solder them by yourself. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Pin header are unsoldered**
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Compatible with the Arduino IDE, making it easy for beginners to start using
- Powered by an upgraded 16MHz microcontroller (ATTINY88)
- Smaller and cheaper than traditional Arduino boards
- Has a variety of digital and analog I/O pins for connecting sensors and actuators
- Onboard power indicator LED
- Onboard reset button
- Great for projects where size and cost are a concern
- Perfect for beginners to jump into electronics
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- IoT projects, such as building smart home devices or wireless sensor networks
- Robotics projects, such as building small robots or control systems
- Home automation projects, such as building automated lighting or temperature control systems
- DIY electronics projects, such as building a custom remote control or a simple game
- Educational projects, such as teaching programming or electronics to students or beginners
- Hobby projects, such as building a model airplane or a miniature drone
- Automotive projects, such as building an onboard data logger or a custom gauge cluster
- Industrial control projects, such as building a temperature or humidity controller
- Medical devices projects, such as building a heart rate monitor or a blood glucose meter
- Wireless communication projects, such as building a low-power wireless sensor node or a radio transmitter/receiver
- Power-critical projects, where the small size and low power consumption of the board are important
- Can be used as a controller in various electronic devices such as home appliances, industrial equipment, and scientific instruments.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Power via USB or External Source | 5v or 7-35v (12v or less recommended, automatic selection) |
| Regulator | On-board 500ma 5V |
| USB | 3. Built-in |
| I/O Pins | 26 (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB) |
| Flash Memory | 8k (about 6k after bootloader) |
| I2C and SPI | Available |
| PWM | 26 (26 pins with Software PWM, only two(D9,D10) with hardware PWM ) |
| ADC | on 8 pins |
| Power LED and Test/Status LED | Available |
| Size(mm): | 44.5x18.3x3 |
| Shipment Weight | 0.008 kg |
| Shipment Dimensions | 10 × 6 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Documentation:
You can use the link below to program the ATTINY88 development board with the Arduino IDE program. You can introduce the card to the program by pasting the link in the "Additional Circuit Boards Manager URLs" section in the window that opens when we click File > Preferences in the IDE and press the OK button.
- https://raw.githubusercontent.com/MHEtLive/arduino-boards-index/master/package_mhetlive_index.json
Pin Description:
Package Includes:

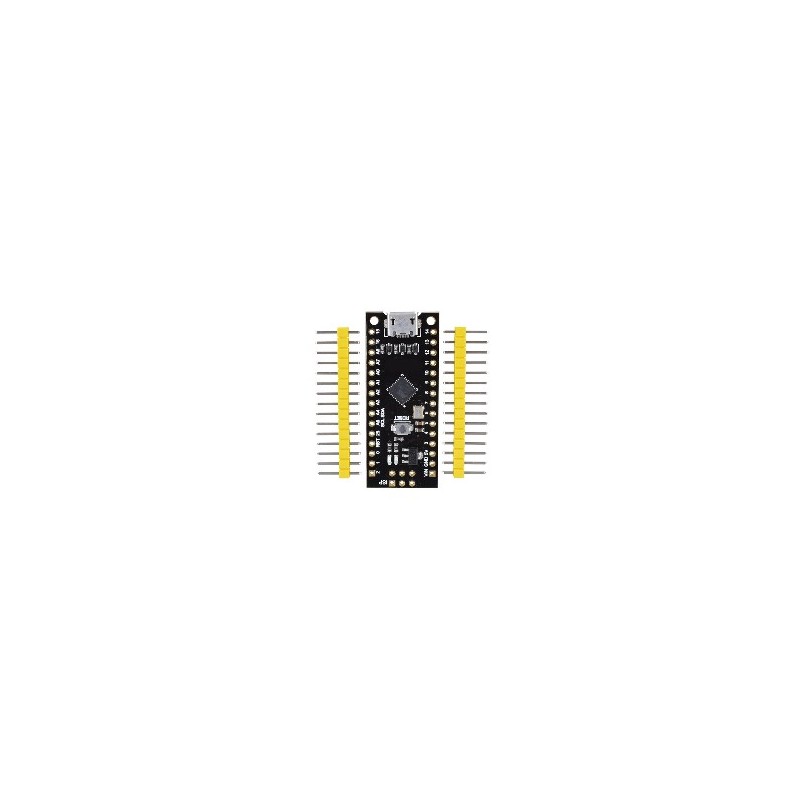

1 x NANO V3.0 Upgraded MH-Tiny ATTINY88 Micro Development Board 16MHz (Unsoldered)
