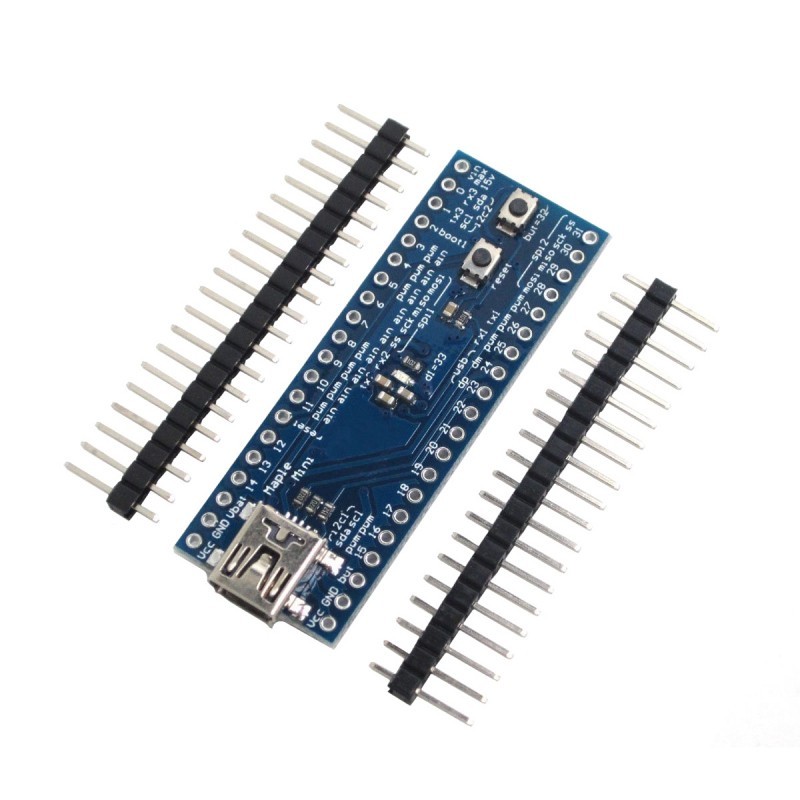

STM32F103CBT6 Development Board Maple Mini Compatible ARM Cortex-M3 Microcontroller

Product Description:
The STM32F103CBT6 Development Board is a compact and high-performance microcontroller board based on the ARM Cortex-M3 32-bit processor, fully compatible with the popular Maple Mini platform. Designed for developers looking for more power than an Arduino without sacrificing ease of use, it offers a seamless transition from the Arduino ecosystem through the Maple IDE or STM32duino (Arduino IDE support).

With a 72MHz CPU frequency, 120KB Flash memory, and 20KB SRAM, this board provides significantly higher speed and memory than standard 8-bit microcontrollers. It features 34 GPIO pins, 12-bit ADC, PWM outputs, and multiple communication interfaces such as SPI, I2C, and USART, making it ideal for robotics, data acquisition, motor control, and embedded projects.

Compact and power-efficient, the STM32F103CBT6 board delivers professional-grade performance in a small footprint, perfect for advanced embedded applications.

Key Features:

• Based on STM32F103CBT6 ARM Cortex-M3 32-bit processor

• Operating frequency: up to 72MHz

• Flash memory: 120KB | SRAM: 20KB

• Input voltage: 3.0V–12V

• 34 digital GPIO pins

• 9 analog inputs with 12-bit ADC

• 12 PWM pins (16-bit) for motor or LED control

• 3 USART interfaces, SPI, and I2C communication support

• 7 DMA channels for efficient data handling

• 4 general-purpose timers (4-channel each)

• USB interface for programming and serial communication

• Low power consumption: <500μA

• Dimensions: 2.02" × 0.72"

Compatibility and Software:

• Compatible with: Maple Mini

• Programming Environment: Maple IDE / STM32duino (Arduino IDE)

• Supports: Arduino-style syntax and libraries under STM32duino core

Applications:

• Embedded Systems Development

• Robotics and Motor Control

• Sensor Data Acquisition

• Signal Processing and Control Systems

• IoT Devices and Prototyping

Package Includes:

• 1 × STM32F103CBT6 Development Board (Maple Mini Compatible)

Notes & Warnings:

• The +5V pin is directly connected to USB power — do not power through USB and external power simultaneously.

• The user button is shared with BOOT0, and must be pressed during flashing.

• This board is a Maple Mini clone, compatible with the STM32duino community-maintained fork for ongoing software support.

Why Choose This Board?
The STM32F103CBT6 brings the power of a 32-bit ARM processor into the simplicity of the Arduino-like environment. With high-speed processing, multiple communication options, and wide voltage support, it’s the perfect upgrade for makers and engineers needing more performance and flexibility in compact embedded projects.

Upgrade your projects to 32-bit performance — explore the power of STM32 with the STM32F103CBT6 Development Board today!
