Product Description:

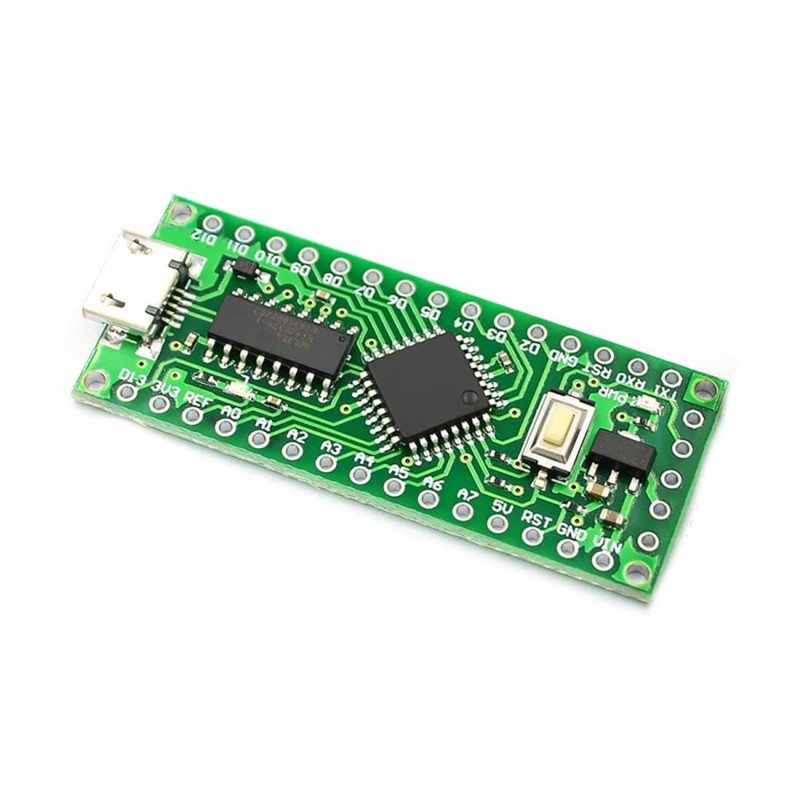

The LGT8F328P Development Board is a high-performance, pin-compatible alternative to the Arduino Nano 3.0, designed for users who need more precision and functionality than the standard ATmega328P. Built around the LGT8F328P-U MCU, this board delivers enhanced processing performance, higher analog resolution, and a variety of advanced peripherals — all while maintaining full compatibility with Arduino IDE and Nano shields.
With a 12-bit ADC (8 channels) and a dedicated 8-bit DAC output, it allows for more precise analog measurements and smoother signal generation. It supports both 3.3V and 5V logic levels, can run at up to 32MHz, and integrates advanced features such as PWM dead-zone control, computing accelerator (DSC), and a unique chip ID (GUID) for secure applications.
Whether used for analog sensor projects, precision control systems, or general embedded development, the LGT8F328P Nano offers better resolution, faster performance, and wider voltage tolerance — all in a compact Nano form factor.
Key Features:
Fully compatible with Arduino Nano 3.0 (pinout and software)
MCU: LGT8F328P-U (ATmega328P-compatible architecture)
Dual voltage support: Operates at both 3.3V and 5V
Clock frequency: Up to 32MHz (default 16MHz)
12-bit ADC (8 channels) – 16× more precise than 10-bit ADC on Arduino Nano
8-bit DAC (1 channel) for analog output on pin D4
Built-in precision voltage reference: 1.024V / 2.048V / 4.096V (±0.5%)
PWM enhancement: High-current push-pull PWM and dead-zone control
Faster ADC sampling rate: Up to 500 kSPS
Built-in unique ID (GUID) for encryption and secure identification
Integrated high-precision RC oscillator – no external crystal required
Supports Arduino IDE and Larduino HSP core ([GitHub link below])
Micro-USB interface for easy connection and programming
Technical Specifications:
| Parameter | Description |
|---|
| MCU | LGT8F328P-U (ATmega328P Compatible) |
| Architecture | 8-bit AVR-compatible |
| Clock Speed | Up to 32MHz (default 16MHz) |
| Flash Memory | 32KB |
| SRAM | 2KB |
| EEPROM | 0–8KB (shared in Flash) |
| ADC | 12-bit, 8 channels (500kSPS) |
| DAC | 8-bit, 1 channel |
| PWM | 8 channels (enhanced high-current) |
| UART | 1 |
| SPI | 1 |
| I2C (TWI) | 1 |
| GPIO | 30 total (27 output / 30 input capable) |
| Operating Voltage | 3.3V or 5V |
| USB Interface | Micro-USB |
| Reference Voltage | 1.024V / 2.048V / 4.096V (±0.5%) |
| Package | QFP32L |
Feature Comparison (vs ATmega328P):
| Feature | LGT8F328P | ATmega328P |
|---|
| ADC Resolution | 12-bit (8ch) | 10-bit (8ch) |
| DAC Output | Yes (1ch, D4) | No |
| Max Frequency | 32MHz | 16MHz |
| Sampling Rate | 500kSPS | 15kSPS |
| PWM Control | Dead-zone & High-current | Standard |
| Unique ID | Supported | No |
| Internal Reference | ±0.5% | ±1.5% |
Applications:
Advanced Arduino-compatible Projects
Precision Analog Sensor Measurement
Audio Signal and Waveform Generation
Robotics and Motor Control Systems
Embedded Control Systems
Educational and Research Use
Package Includes:
Resources & Drivers:
Why Choose This Board?
The LGT8F328P Nano offers higher precision (12-bit ADC), built-in DAC, and enhanced analog features while remaining fully compatible with Arduino Nano hardware and code. It’s a perfect upgrade for makers who want better performance, higher resolution, and greater flexibility without changing their development workflow.
