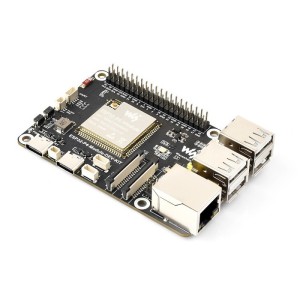

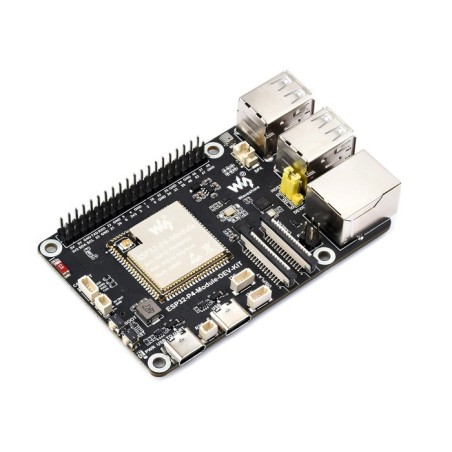

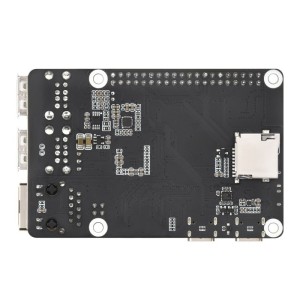

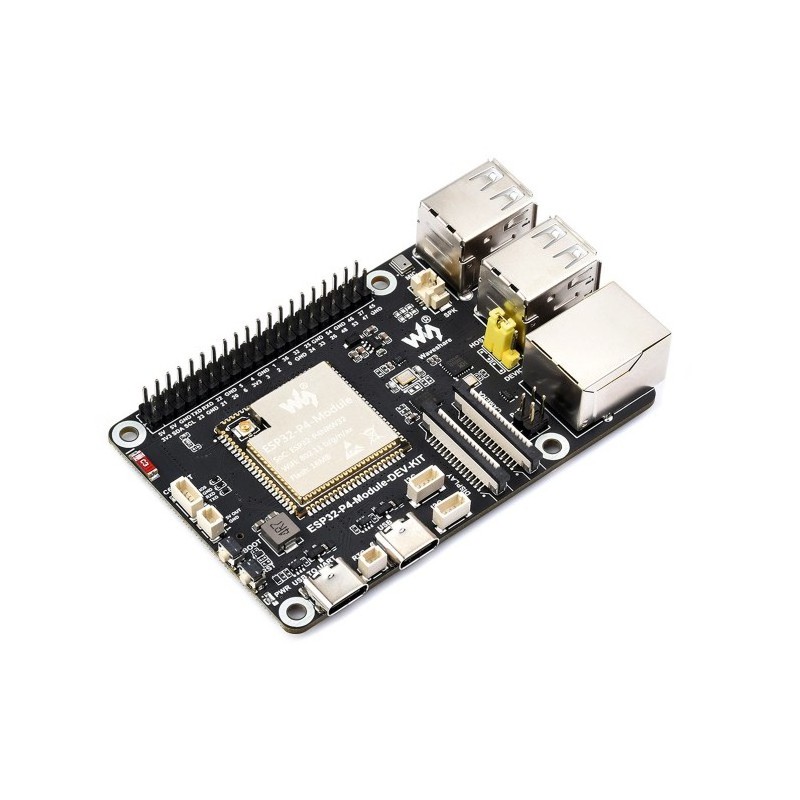

ESP32-P4-Module High-performance Development Board

This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with reserved PoE function header, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Module-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
• Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

ESP32-P4-Module Development Board

High-performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-machine Interfaces



Kit Selection

Development Board Introduction

This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with reserved PoE function header, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Module-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
• Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Highly integrated and powerful performance

Adopts ESP32-P4-Module, with built-in ESP32-C6 and 16MB Nor Flash

Wi-Fi 6 and Bluetooth support

built-in ESP32-C6 module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.

Reserved PoE Module Header

More Flexible for Power Supply

* the PoE module is NOT included

Connect to a PoE Module for PoE Power Supply

Provides Both Network Connection And Power Supply for ESP32-P4-Module-DEV-KIT board In Only One Ethernet Cable

* the PoE HAT (F) and the switch in the picture above are NOT included.

What's On Board

1. ESP32-P4-Module
   Built-in ESP32-P4NRW32, ESP32-C6, 16MB Nor Flash
2. Display interface
   MIPI 2-lane
3. Camera interface
   MIPI 2-lane
4. Type-C UART connector
   for power supply, program burning and debugging
5. RTC battery header
   for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
6. Type-C connector
   for power supply and program burning
7. I2C header
8. I3C header
9. PoE module header
   connect to external PoE module for PoE power supply function
10. Onboard microphone



11. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
12. Type-A Ports
    USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper
13. USB OTG function selection
    switching to HOST end for expanding USB ports
14. RJ45 100M Ethernet port
15. 40PIN GPIO header
16. ESP32-C6 SMD Antenna
    SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5
17. ESP32-C6 UART header
18. 5V power header
19. BOOT button
    Press it when powering on or resetting to enter download mode
20. RST Reset button
21. Power supply indicator
22. TF card slot
    SDIO 3.0 interface protocol

Pin definition

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-Module-DEV-KIT
