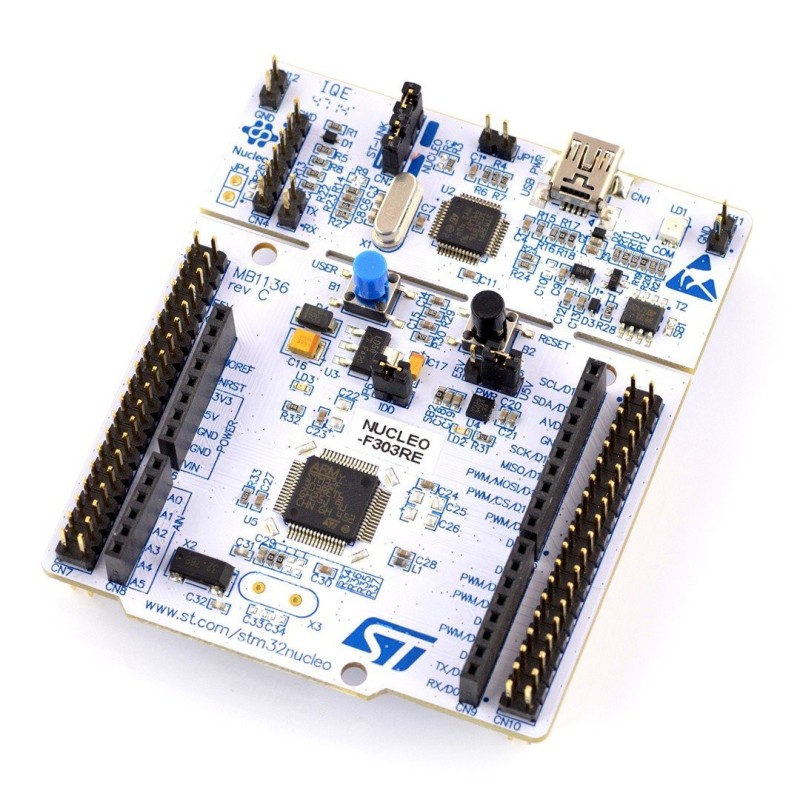

The STM32 NUCLEO-F303RE is a versatile development board powered by the STM32F303RET6 microcontroller, featuring an ARM Cortex-M4 core running at 72 MHz, with 512 KB Flash and 80 KB SRAM. Designed for flexibility, it is Arduino Uno Rev3 compatible and works seamlessly with popular development platforms such as mbed.org, Keil, IAR, and GCC-based toolchains.
Product Description:
The STM32 NUCLEO-F303RE is a versatile development board powered by the STM32F303RET6 microcontroller, featuring an ARM Cortex-M4 core running at 72 MHz, with 512 KB Flash and 80 KB SRAM. Designed for flexibility, it is Arduino Uno Rev3 compatible and works seamlessly with popular development platforms such as mbed.org, Keil, IAR, and GCC-based toolchains.
Equipped with the ST-LINK/V2 debugger/programmer (with SWD output), the board eliminates the need for external programmers, making it perfect for rapid prototyping and embedded development. Its rich set of interfaces, including CAN, I²C, SPI, UART, USART, and USB, make it suitable for a wide range of applications.
Key Features:
Microcontroller: STM32F303RET6
ARM Cortex-M4, 32-bit core, 72 MHz
512 KB Flash memory
80 KB SRAM
Package: LQFP64
Interfaces: CAN, I²C, SPI, UART, USART, USB
Debugger/Programmer: ST-LINK/V2 (can also work standalone via SWD output)
Arduino Shield Compatible: Arduino Uno Rev3 connectors
Power Options: USB Micro-AB or external 5V/3.3V
Onboard Features:
3 LEDs (power, communication, user-controllable)
2 Buttons (RESET and USER)
Goldpin headers for I/O access
Technical Specifications:
Core: ARM Cortex-M4, 32-bit RISC, 72 MHz
Flash Memory: 512 KB
SRAM: 80 KB
Package: LQFP64
Interfaces: CAN, SPI, I²C, UART, USART, USB
Debugger: Integrated ST-LINK/V2 with USB re-enumeration
Supply Voltage: 5V/3.3V (via USB or external source)
USB Connector: Micro-AB USB
Size: Standard NUCLEO board with Arduino/Morpho headers
Applications:
Embedded system prototyping
Robotics and automation
IoT and sensor integration
Motor control and signal processing
Educational projects and training
Package Includes:
1 × STM32 NUCLEO-F303RE Development Board
Why Choose the STM32 NUCLEO-F303RE?
The NUCLEO-F303RE combines the performance of an ARM Cortex-M4 MCU with the flexibility of Arduino compatibility and a built-in debugger. With its wide set of communication interfaces, low-cost accessibility, and support across major development platforms, it’s an excellent choice for both beginners and professionals in embedded systems.
Build, prototype, and innovate faster with the STM32 NUCLEO-F303RE Development Board—powerful, flexible, and developer-friendly.
