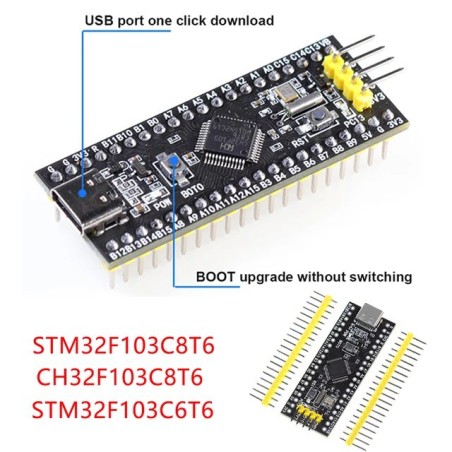

STM32F103C8T6 ARM STM32 Minimum System Development Board Module

Reference RBD-2679

STM32F103C8T6 ARM Cortex-M3 core board running at 72MHz for efficient embedded applications
Type-C interface for fast and convenient connectivity and programming
Upgraded BOOT switch enables easy upgrades without jumper caps
64KB Flash memory and 20KB SRAM for enhanced performance compared to C6T6 variant
Supports SWD debugging, serial port, USB 2.0 FS, CAN, I2C, SPI, and USART interfaces
Compact module with 51 I/O pins, ADC, DAC, and multi-power saving modes

Description
Product Details

Description

The STM32F103C8T6 ARM Minimum System Development Board Module is a versatile and compact solution for embedded system development. Powered by an ARM Cortex-M3 core running at 72MHz, it delivers robust performance while maintaining low power consumption. This enhanced version features a Type-C interface for seamless programming and debugging, as well as an upgraded BOOT switch that eliminates the need for jumper caps during firmware updates. With 64KB Flash and 20KB SRAM, the module offers superior memory capacity compared to earlier versions, making it suitable for a wide range of applications. It supports SWD debugging and multiple communication protocols including USB 2.0 FS, CAN, I2C, SPI, and USART. Ideal for both hobbyists and professional developers, this development board provides the flexibility and efficiency needed for prototyping and final project deployment. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-performance ARM Cortex-M3 processor operating at 72MHz.
Convenient Type-C interface for faster connectivity and programming.
Upgraded BOOT switch for simple upgrades without jumper settings.
Expanded 64KB Flash memory and 20KB SRAM for complex applications.
Supports SWD debugging and multiple communication protocols.
Wide power supply range of 2.7V–5.5V for flexible usage.
Compact design with 51 I/O ports and 16 external interrupts.
Multiple low power modes (sleep/stop/standby) for energy-efficient applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Embedded system prototyping and learning platforms.
Robotics control systems and automation projects.
IoT device development with multiple communication protocols.
Industrial control and monitoring systems.
Educational projects for microcontroller programming and debugging.
DIY electronics and hobbyist development projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Microcontroller	STM32F103C8T6 (ARM Cortex-M3)
Core Frequency	72 MHz
Flash Memory	64KB
SRAM	20KB
Power Supply Range	2.7V – 5.5V
Interfaces	USB 2.0 FS, CAN, I2C, SPI, USART
Debugging	SWD (Serial Wire Debug)
ADC	12-bit, 16 channels
DAC	12-bit
GPIO	51 I/O pins, 16 external interrupts
BOOT Switch	Upgraded, no jumper required
Connectivity Port	Type-C
Low Power Modes	Sleep, Stop, Standby
Dimensions	6 × 3 × 2 cm
Shipment Weight	0.0083 kg
Shipment Dimensions	6 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x STM32F103C8T6 ARM STM32 Minimum System Development Board Module
