The STM32F103C6T6 Micro-B Blue Pill is a compact and powerful microcontroller development board built around the imported STMicroelectronics ARM Cortex-M3 MCU. Designed for reliable embedded control systems, this board operates at a maximum clock speed of 72MHz, delivering fast and efficient real-time processing. With 32KB Flash memory and 10KB SRAM, it provides sufficient resources for firmware development, communication handling, and sensor data processing.
This version features a Micro-B USB interface, allowing easy connection to a computer for programming and serial communication. It supports multiple communication protocols including USART, SPI, I2C, CAN, and USB. Therefore, it integrates seamlessly with displays, motor drivers, sensors, GPS modules, and industrial communication networks.
The board also includes dual 12-bit ADCs for precise analog measurements and multiple timers with PWM capability for motor control and automation. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Original Imported STM32F103C6T6 Chipset – Ensures dependable performance and long-term stability.
ARM Cortex-M3 Core (72MHz) – Handles real-time control, signal processing, and communication tasks efficiently.
Micro-B USB Connectivity – Simplifies programming and serial communication via USB.
Rich Peripheral Support – Includes CAN, SPI, I2C, USART, USB for flexible system integration.
Dual 12-bit ADCs – Accurate analog signal acquisition for sensor-based applications.
Advanced Timers & PWM Outputs – Ideal for motor control and industrial automation.
Low Power Modes – Sleep, Stop, and Standby modes improve energy efficiency in battery-powered devices.
5V Tolerant I/O Pins – Simplifies interfacing with external modules and sensors.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Embedded Control Systems – Build real-time controllers for industrial equipment.
Robotics & Automation – Drive motors and read sensors with high precision.
Medical Instrumentation – Process sensor data reliably in portable devices.
IoT & Smart Home Devices – Enable communication and automation features.
Automotive & GPS Systems – Suitable for CAN-based vehicle communication.
Industrial Data Acquisition – Capture analog signals using high-resolution ADCs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Microcontroller | STM32F103C6T6 (Imported) |
| Core | ARM Cortex-M3 (32-bit) |
| Clock Speed | 72 MHz |
| Flash Memory | 32 KB |
| SRAM | 10 KB |
| Operating Voltage | 2.0V – 3.6V |
| USB Interface | Micro-B |
| Communication Interfaces | USART, SPI, I2C, USB, CAN |
| I/O Pins | Up to 48 (5V tolerant) |
| ADC | 12-bit (Up to 16 channels) |
| Timers | PWM & General-purpose |
| Operating Temperature | -40°C to +85°C |
| Package | 48-LQFP |
| Shipment Weight | 0.091 kg |
| Shipment Dimensions | 6 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

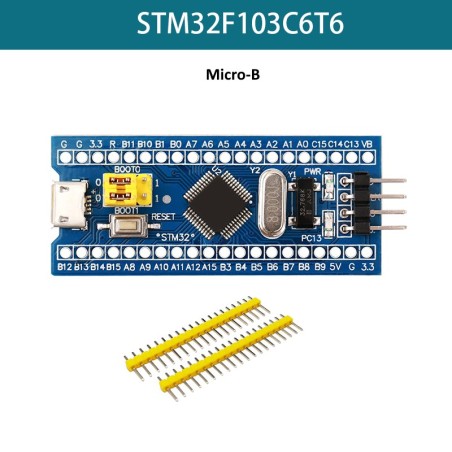

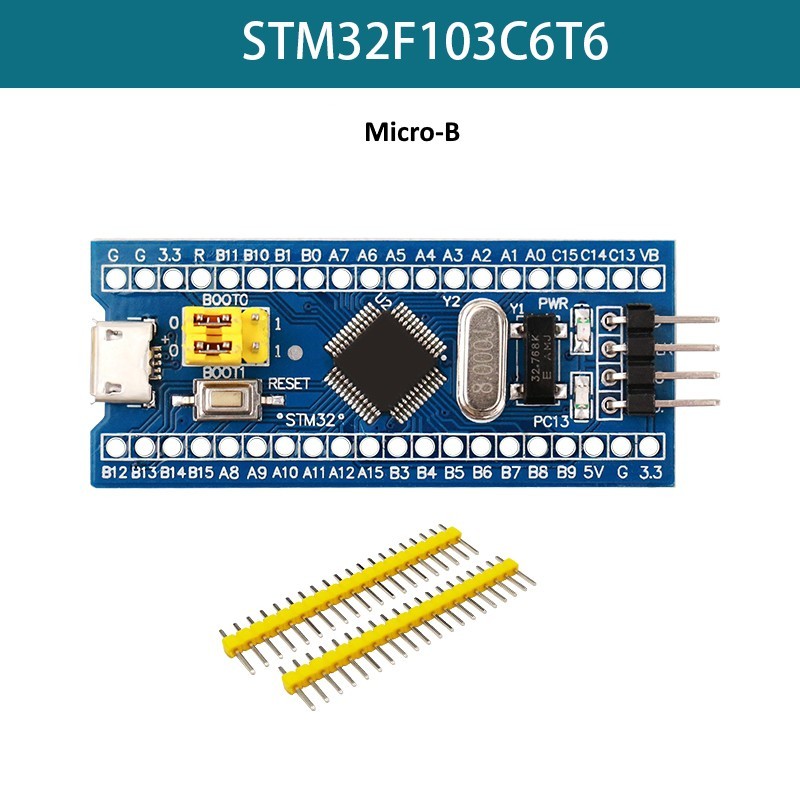

1 x STM32F103C6T6 Micro-B Imported Microcontroller Blue Pill Board
