An AI enabled board in the shape of the classic Nano board, with all the sensors to start building your next project right away.
Arduino SKU: ABX00069
Designed and Assembled In Italy

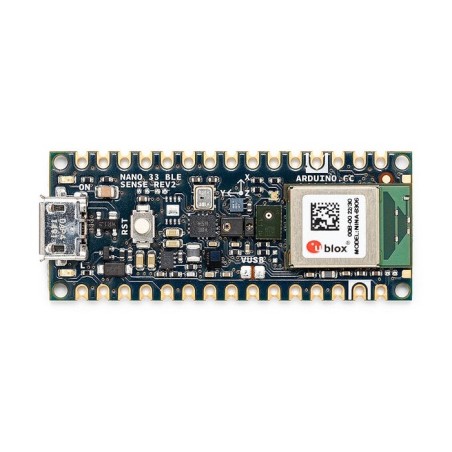

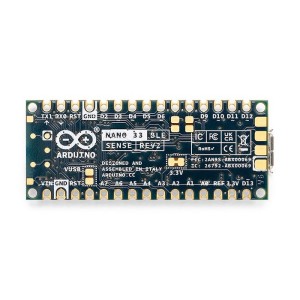

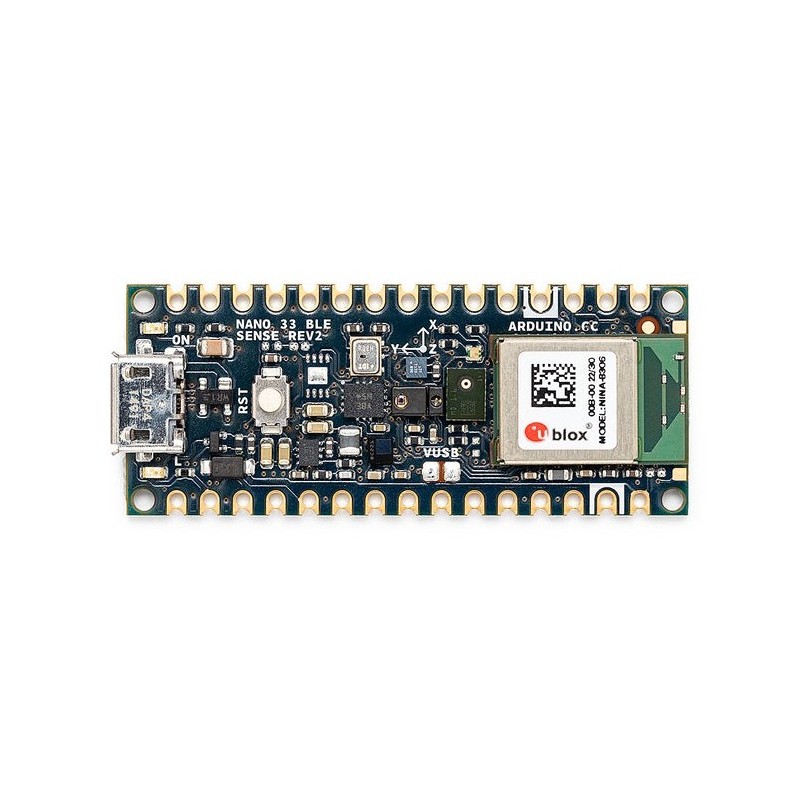

The Arduino Nano 33 BLE Sense Rev2 is Arduino’s 3.3V AI enabled board in the smallest available form factor with a set of sensors that will allow you without any external hardware to start programming your next project, right away.
With the Arduino Nano 33 BLE Sense Rev2, you can:
The main feature of this board, besides the complete selection of sensors, is the possibility of running Edge Computing applications (AI) on it using TinyML. Learn how to use the Tensor Flow Lite library following this instructions or learn how to train your board using Edge Impulse.
Microcontroller | nRF52840 (datasheet) |
Operating Voltage | 3.3V |
Input Voltage (limit) | 21V |
DC Current per I/O Pin | 15 mA |
Clock Speed | 64MHz |
CPU Flash Memory | 1MB (nRF52840) |
SRAM | 256KB (nRF52840) |
EEPROM | none |
Digital Input / Output Pins | 14 |
PWM Pins | all digital pins |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 8 (ADC 12 bit 200 k samples) |
Analog Output Pins | Only through PWM (no DAC) |
External Interrupts | all digital pins |
LED_BUILTIN | 13 |
USB | Native in the nRF52840 Processor |
IMU | |
Microphone | MP34DT06JTR (datasheet) |
Gesture, light, proximity, color | APDS9960 (datasheet) |
Barometric pressure | LPS22HB (datasheet) |
Temperature, humidity | HS3003 (datasheet) |
