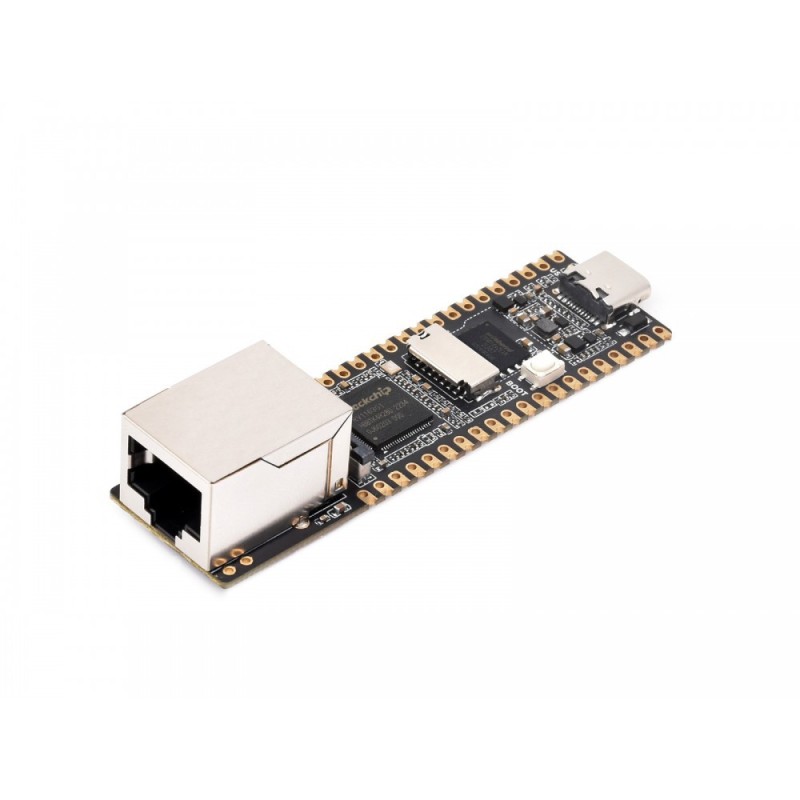

LuckFox Pico Plus RV1103 Linux Micro Development Board

Reference RBD-3310

High-performance Linux development board based on ARM Cortex-A7 + RISC-V dual-core architecture.
Features integrated NPU (0.5–1.0 TOPS) for AI acceleration and ISP for image processing
Equipped with 64MB DDR2 RAM, 128MB NAND Flash, and MIPI CSI camera interface.
Built-in Ethernet, USB 2.0, TF card slot, and GPIOs for flexible connectivity.
Ideal for AI vision, IoT, robotics, and smart monitoring applications.

Description
Product Details

Description

The LuckFox Pico Plus RV1103 Linux Micro Development Board is a compact, high-performance platform designed for AI vision, IoT, and embedded system applications. Powered by a dual-core ARM Cortex-A7 and RISC-V MCU, it integrates an NPU capable of up to 1.0 TOPS AI inference performance, and a 4MP ISP for advanced image processing with HDR and noise reduction. The onboard 64MB DDR2 memory and 128MB SPI NAND flash ensure smooth and efficient operation, while the MIPI CSI interface, USB 2.0, and 10/100M Ethernet provide excellent expandability and connectivity. Supporting Linux, this board excels in real-time AI tasks such as object detection, facial recognition, and smart vision systems. Compact yet powerful, the LuckFox Pico Plus RV1103 is an excellent solution for developers and engineers working on AI-powered embedded projects, smart cameras, and edge computing devices. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual-Core Architecture: Combines ARM Cortex-A7 (1.2GHz) and RISC-V MCU for multitasking and real-time control.
AI Acceleration with NPU: Delivers up to 1.0 TOPS performance for deep learning inference.
Integrated ISP: Supports 4MP @30fps with HDR/WDR image optimization and noise reduction.
Built-in Storage: 64MB DDR2 RAM + 128MB SPI NAND flash for system and data handling.
MIPI CSI Camera Interface: Enables direct camera integration for computer vision applications.
Network-Ready: Embedded 10/100M Ethernet port with PHY for seamless data communication.
Comprehensive Connectivity: USB 2.0, TF card slot, 25 GPIO pins, and debug/test pads.
Low Power & Fast Boot: 250ms startup for quick AI deployment and energy-efficient operation.
Linux-Based Platform: Supports open-source development for AI and IoT solutions.
Compact & Expandable: Ideal for space-constrained applications in robotics, security, and industrial automation.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

AI Vision Systems: Facial recognition, object detection, and motion tracking.
IoT Edge Devices: Intelligent sensors and automation controllers.
Smart Cameras: Embedded image analysis and surveillance systems.
Industrial Automation: Machine vision and AI-powered inspection systems.
Robotics: Real-time control and vision-based navigation.
Educational & Research Projects: For developers exploring AI and Linux-based embedded computing.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Processor	ARM Cortex-A7 (1.2GHz) + RISC-V MCU
NPU Performance	0.5 TOPS (int8), up to 1.0 TOPS (int4)
Image Processor (ISP)	4MP @ 30fps, HDR, WDR, noise reduction
Memory	64MB DDR2 RAM
Storage	128MB SPI NAND Flash
Camera Interface	MIPI CSI 2-lane
Network	10/100M Ethernet (embedded PHY)
USB Port	USB 2.0 Host/Device
GPIO Pins	25 GPIOs available
TF Card Support	Yes (External storage expansion)
Power Input	USB Type-C (5V)
Boot Time	~250ms (Fast boot)
Supported OS	Linux
Board Size	Compact embedded form factor
Shipment Weight	0.03 kg
Shipment Dimensions	5 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

How to Use the LuckFox Pico Plus RV1103 Development Board

Step 1: Powering the Board

Use a USB Type-C cable to supply power (5V DC)

Step 2: Flashing Firmware & OS

Use the BOOT button while powering up to enter download mode
Flash Linux or RTOS firmware for AI/vision applications

Step 3: Connecting Peripherals

Attach a MIPI CSI camera for vision-based projects
Use GPIO headers to connect sensors, motors, or displays
Plug in an Ethernet cable for networking applications

Step 4: Developing & Running AI Applications

Utilize NPU acceleration for machine learning and AI inference
Deploy image processing and computer vision projects
Integrate with IoT platforms for real-time data processing

Package Includes:

1 x LuckFox Pico Plus RV1103 Linux Micro Development Board
