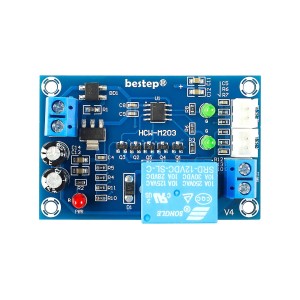

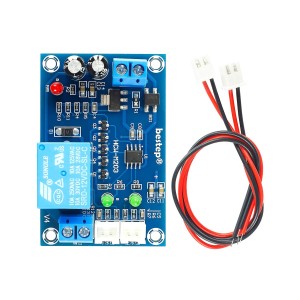

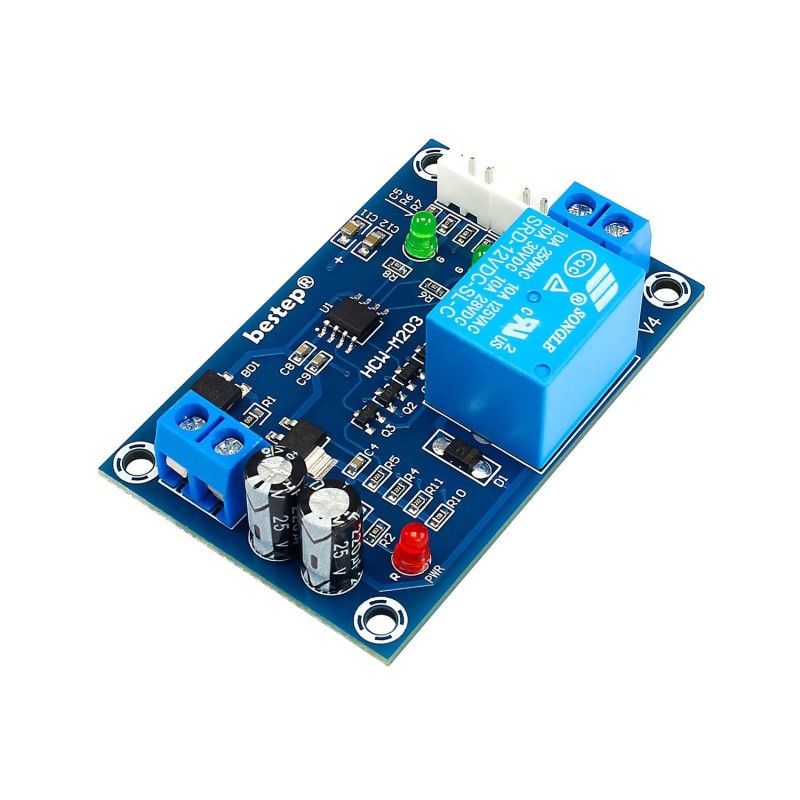

The XH-M203 Automatic Water Level Controller Module provides a smart and reliable solution for automated water management in domestic, agricultural, and industrial applications. Designed to monitor and control water levels without manual supervision, this module automatically turns the pump ON when the water level is low and OFF when it reaches the preset upper limit, maintaining optimal water balance in tanks or reservoirs. Equipped with a high-power 10A relay, it can control a wide range of pumps, solenoid valves, or external devices. The dual-probe sensing system ensures accurate water level detection, while LED indicators provide visual feedback for power and operational status. Supporting a wide operating voltage of 12V to 40V (AC/DC), it’s easy to install and highly versatile. The XH-M203 module is ideal for water storage automation, irrigation systems, and industrial liquid level control setups, offering efficient and maintenance-free operation. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Fully Automatic Operation: Automatically activates and deactivates pumps based on detected water levels.
Dual Probe Detection: Separately identifies high and low water levels for precise control.
High Power Relay Output: 10A rated relay can directly drive small to medium water pumps or solenoid valves.
Wide Voltage Compatibility: Operates with both 12V–40V AC or DC power supplies.
LED Status Indicators: Clearly displays power and relay operation states in real-time.
Easy Installation: Includes M3 mounting holes for quick integration.
Durable & Reliable: Built from high-quality components for long-term, stable operation.
Versatile Applications: Ideal for homes, farms, and industrial liquid management systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Domestic Water Tanks: Automatically maintains water levels in household overhead or underground tanks.
Agricultural Irrigation Systems: Ensures proper water supply and prevents dry running of pumps.
Industrial Fluid Systems: Controls coolant, chemical, or storage tank levels.
Aquariums & Pools: Helps maintain water balance and prevents overflow or dry conditions.
Rainwater Harvesting Systems: Automates pump activation based on stored water capacity.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | XH-M203 |
| Working Voltage | AC/DC 12V – 40V |
| Output Capacity | 10A |
| Output Type | Relay Output |
| Control Type | Fully Automatic |
| Detection Method | Dual Probe (High & Low Water Levels) |
| LED Indicators | Power and Relay Status |
| Installation | M3 Screw Holes |
| Board Size | 6cm × 3.8cm (2.36" × 1.50") |
| Material | High-quality FR-4 PCB |
| Application Areas | Home, Agriculture, Industrial |
| Shipment Weight | 0.020 kg |
| Shipment Dimensions | 6 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x XH-M203 Automatic Water Level Controller Module
