Home automation is "The Internet of Things". It simply means the way all devices or appliances are networked together to provide users with a seamless control over their home equipment.

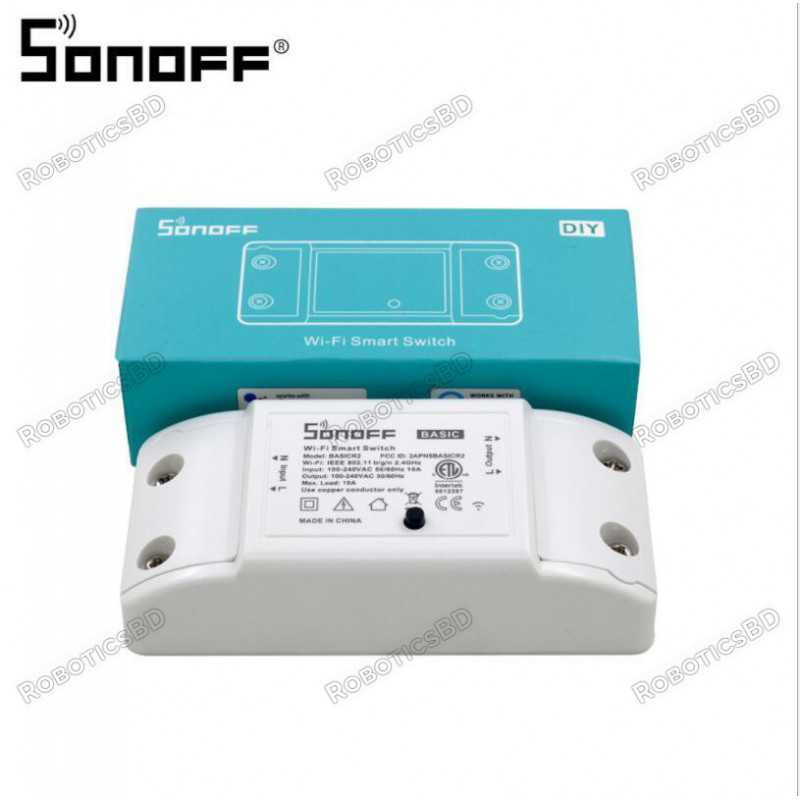

Sonoff is a low-cost, affordable device that helps you to step into the amazing smart home. It is a Wi-Fi wireless switch that can connect to the appliance of different types and brands. Sonoff sends data to the cloud platform through the Wi-Fi Router, which enables you to remotely control all appliances with the App eWeLink on your smartphone. The server of Sonoff is Amazon AWS global server.
Sonoff WiFi controlled switch makes all home appliances smart. As long as the mobile phone has network(2G/3G/4G/WiFi), users can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timers for the appliances, which can include countdown/scheduled/loop timers, and can thus, help users maintain an easy life.
The App eWeLink enables you to control your Sonoff Basic R2- WiFi Wireless Smart Switch Control Module easily. You can download the iOS version in App Store and the Android version in Google Play. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Sonoff Basic does NOT have 433Mhz RF receiver module. If you want RF function, please buy Sonoff RF.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
How to operate the APP?
- Register and log in
- Add devices(auto-search devices to be configured —select the device to be added—select the wifi to be paired with—configure)
- Control devices(remote turn on/off, set timing schedules, check status, share devices)
- 2 Ways to control Sonoff and Slammer
- You can control your Sonoff and Slammer by 2 ways: by the manual switch, by the APP. No matter which way you use, the status is synchronous.
Features :
- Support Wi-Fi network.
- You can control one device at a time.
- Support status tracking, home appliances status timely feedback to your App.
- Support remotely turn on or off added devices.
- Easy installation, easy handling and can be activated immediately and stable.
- Support Max 8 timers tasks for each added device.
- Support numerous Wi-Fi smart switches one smartphone.
Specification :
- Voltage range: 90-250v AC(50/60Hz)
- Max current: 10A
- Max Wattage: 2200W
- Dimensions: 88*38*23mm (L*W*H)
- Enclosure Material: Fire-retardant ABS V0
- Humidity: 5%-90%RH, Non-condensing
- Wireless Standard: 802.11 b/g/n
- Security Mechanism: WPA-PSK/WPA2-PSK
- Operating Temperature: 0ºC-40ºC(32°F-104°F)
- Color: White
- Gang: 1
- Certificate: CE
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Material | ABS |
| AC Operating Voltage(V) | 90 to 250 |
| Supply Frequency(Hz) | 50 to 60 |
| Max Load Current(A) | 10 |
| Max Wattage(W) | 2200 |
| Color | White |
| Frequency(GHz) | 2.4 |
| Humidity | 5%-95% |
| Operating Temperature (°C) | -20 to 60 |
| Controllable Devices | 1(at a time) |
| Length (mm) | 88 |
| Width (mm) | 40 |
| Height (mm) | 35 |
| Weight (gm) | 78 |
| Shipment Weight | 0.09 kg |
| Shipment Dimensions | 13 × 5 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x Sonoff WiFi Wireless Smart Switch
1 x Mounting Screw
A User Manual.
