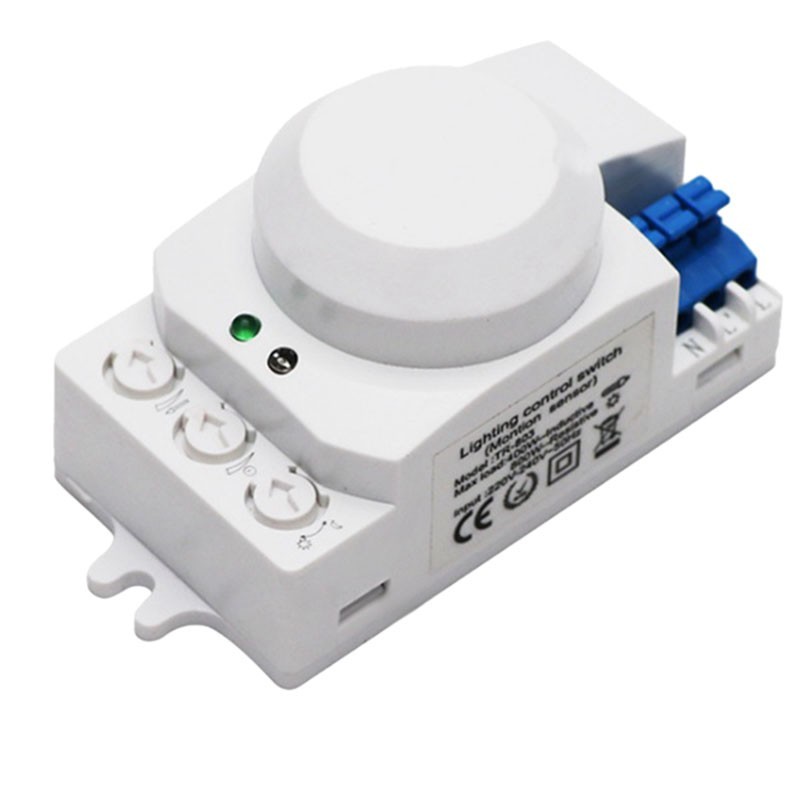

The 5.8GHz Microwave Motion Sensor Light Switch is a high-performance automation solution designed for modern lighting control and energy efficiency. Using advanced 5.8GHz CW radar technology in the ISM band, this sensor delivers accurate 360-degree motion detection, even through non-metallic surfaces such as glass and thin doors. Built with durable ABS material, it offers adjustable detection range, ambient light sensitivity, and customizable delay timing, allowing users to fine-tune performance according to specific indoor requirements. Operating on 220–240V AC and consuming less than 0.9W, this motion sensor ensures reliable, low-power operation while supporting heavy lighting loads. It is perfect for residential, commercial, and industrial environments where automated lighting and security monitoring are essential. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:

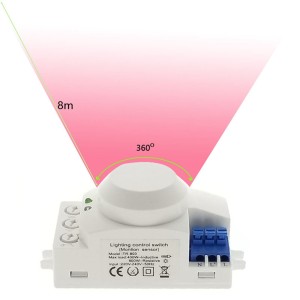

360° Omnidirectional Detection – Covers a full circular area to eliminate blind spots.
5.8GHz CW Radar Technology – Ensures reliable detection even through glass and thin walls.

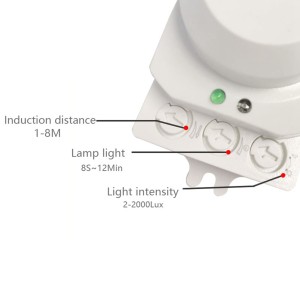

Adjustable Detection Range – Easily set the sensing radius from 1 to 8 meters.
Customizable Time Delay – Select delay from 10 seconds to 12 minutes for flexible automation.
Day/Night LUX Adjustment – Automatically activates based on ambient light levels (3–2000 LUX).
High Load Capacity – Supports up to 1200W incandescent and 300W energy-saving lamps.
Energy Efficient Design – Consumes less than 0.9W during operation.
Safe & Durable Construction – High-quality ABS housing ensures long-term performance.
Flexible Installation – Suitable for wall or ceiling mounting (1.5m–3.5m height).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart indoor lighting automation for homes and apartments.
Office and commercial building energy-saving systems.
Warehouse and industrial lighting control.
Garage, stairway, corridor, and hallway motion-based lighting.
Security and occupancy detection systems.
Smart building management and automation projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Power Source | 220V AC – 240V AC |
| HF System | 5.8GHz CW Radar (ISM Band) |
| Detection Range | 360 Degrees |
| Detection Distance | 1–8 meters (Adjustable Radius) |
| Ambient Light Sensitivity | 3–2000 LUX (Adjustable) |
| Time Delay Range | 10s ±3s to 12min ±1min |
| Transmission Power | <10mW |
| Detection Motion Speed | 0.6–1.5 m/s |
| Power Consumption | <0.9W |
| Rated Load | 1200W (Incandescent) / 300W (Energy-saving Lamp) |
| Installation Height | 1.5m – 3.5m |
| Material | ABS |
| Color | White |
| Mounting Type | Wall / Ceiling |
| Shipment Weight | 0.079 kg |
| Shipment Dimensions | 10 × 6 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 5.8GHz HF System LED Microwave 360 Degree Motion Sensor Light Switch
