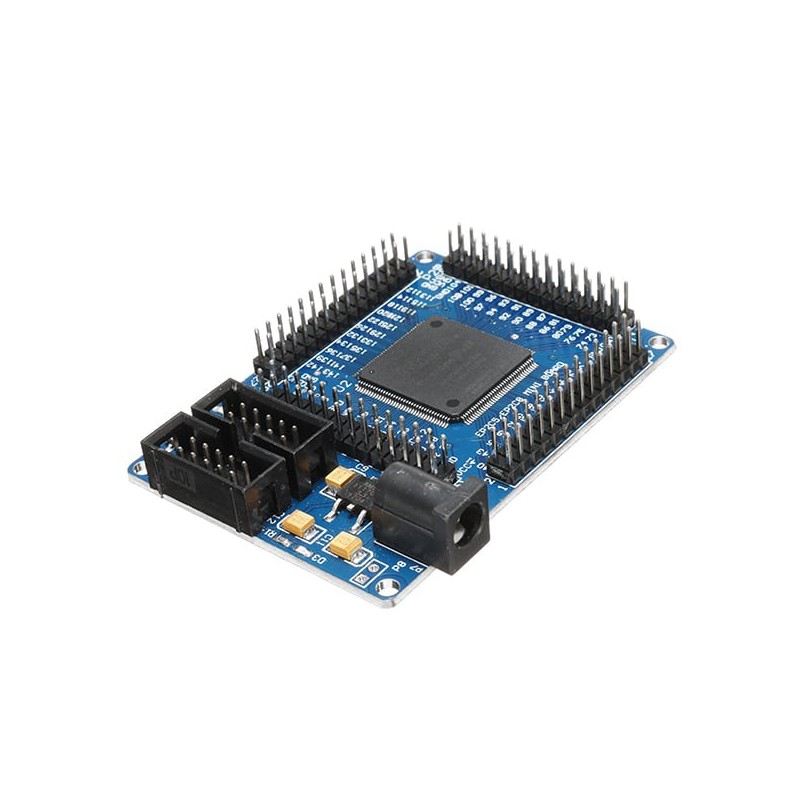

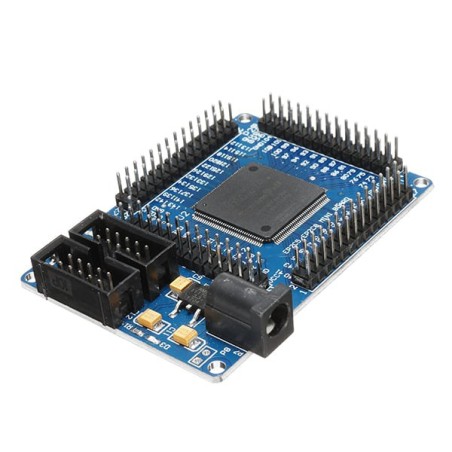

The ALTERA FPGA Cyclone II EP2C5T144 System Development Board is a compact, high-performance platform for FPGA-based learning, prototyping, and embedded system development. Powered by the Cyclone II EP2C5T144 chip and a 4Mbit EPCS4 configuration EPROM, this board supports complex digital designs such as data acquisition, logic control, and signal processing. It features a 50MHz active crystal oscillator ensuring stable timing performance and includes three onboard LEDs, a reset button, and a power indicator for experimentation. The board provides access to all FPGA I/O pins, allowing users to interface with memory, sensors, or other peripherals. Designed with high-quality components like tantalum capacitors for power filtering, this module delivers stable performance for industrial, academic, and hobbyist use. It also supports Nios II embedded CPU development, making it an ideal choice for both beginners and professionals in FPGA and digital logic design. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Powerful FPGA Core: Built around ALTERA Cyclone II EP2C5T144 chip for flexible logic development.
4Mbit Configuration Memory: Onboard EPCS4 EPROM for FPGA program storage.
Stable Timing: 50MHz crystal oscillator for reliable clock performance.
Full I/O Accessibility: All I/O pins are led out for easy connection to external modules.
Onboard Testing Components: Includes 3 SMD LEDs, reset button, and power LED indicator.
High-Quality Components: Features tantalum capacitors for clean power delivery.
Easy Power Supply: Operates from a single 5V DC input via connector or pin header.
Supports Nios II CPU: Compatible with ALTERA’s embedded development environment.
Compact and Lightweight: Small footprint ideal for educational and embedded projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
FPGA Learning and Experimentation: Ideal for students and beginners studying digital design.
Logic Control Systems: Implement custom digital control or automation circuits.
Signal Processing Projects: Suitable for real-time digital signal manipulation.
Data Acquisition Systems: Interface with sensors and peripherals for custom applications.
Embedded CPU Development: Build and test Nios II-based embedded systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Cyclone II EP2C5T144 Development Board |
| FPGA Chip | ALTERA Cyclone II EP2C5T144 |
| Configuration Memory | EPCS4 (4Mbit EPROM) |
| Clock Frequency | 50MHz |
| Power Supply | 5V DC |
| LEDs | 3 SMD LEDs (for test and indication) |
| Reset Button | Yes |
| Power Indicator | Yes |
| Expansion Ports | All FPGA I/O pins accessible |
| Supported CPU | Nios II Embedded Processor |
| Capacitors | Tantalum Power Filter Capacitors |
| Board Dimensions | 72 × 52 × 13 mm |
| Board Weight | 26g |
| Shipment Weight | 0.0272 kg |
| Shipment Dimensions | 7 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
