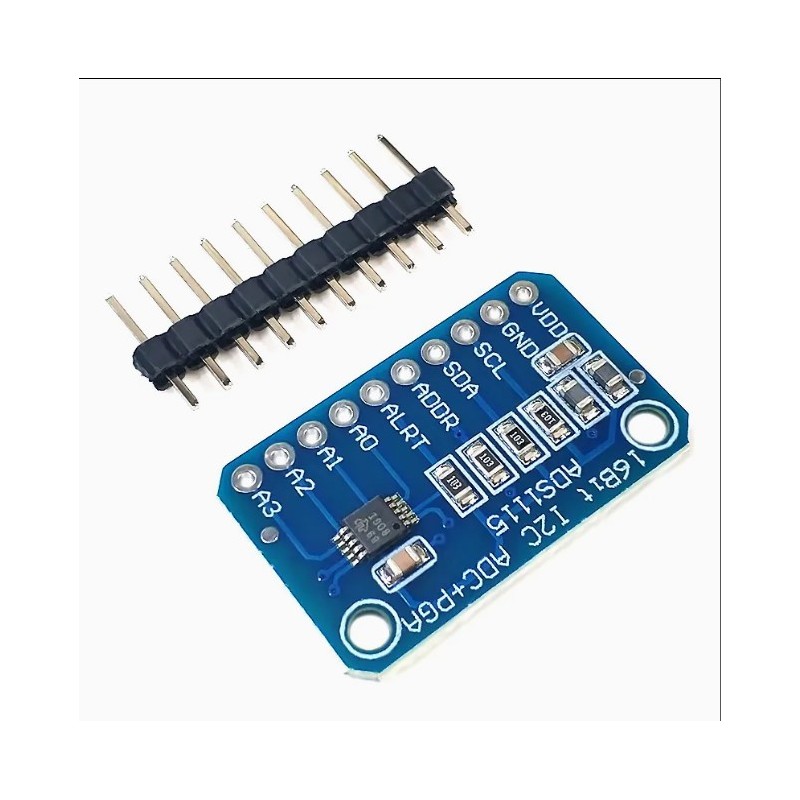

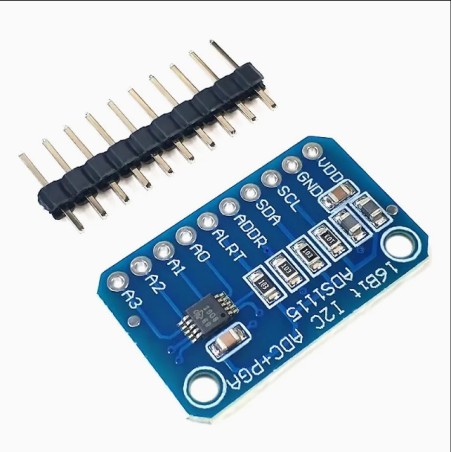

The ADS1115 4-Channel 16-Bit Precision Analog-to-Digital Converter (ADC) Module – China Version delivers high-accuracy and low-power performance for analog signal processing. Designed for compact applications, this module supports both four single-ended and two differential inputs, making it highly versatile for multiple sensor connections. With a 16-bit resolution, programmable gain amplifier (PGA), and selectable data rate from 8 to 860 samples per second, it offers exceptional precision and adaptability. The ADS1115 operates from a single 2.0V–5.5V supply and features an I2C-compatible interface with four selectable addresses, allowing multiple modules to operate on the same bus. Its integrated low-drift voltage reference, oscillator, and programmable comparator enhance stability and performance. Commonly used in portable instrumentation, IoT devices, and battery monitoring systems, this module is a cost-effective alternative to the original version. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Precision: 16-bit ADC resolution for accurate analog-to-digital conversion.
Multiple Input Modes: Supports 4 single-ended or 2 differential inputs for versatile signal acquisition.
Built-In PGA: Programmable gain amplifier for low-voltage signals as small as ±256mV.
Low Power Consumption: Uses only 150μA in continuous mode; auto shutdown in single-shot mode.
Wide Voltage Range: Operates from 2.0V to 5.5V for flexible system compatibility.
Programmable Sampling Rate: Adjustable data rate (8 SPS–860 SPS) for performance optimization.
I2C-Compatible Interface: Up to 4 selectable addresses for multiple module connections.
Integrated Comparator and Reference: Ensures stable and reliable performance.
Compact Design: Available in QFN-10 or MSOP-10 package for space-limited applications.
Chinese Chip Version: Affordable alternative with good precision for general-purpose use.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Portable Instrumentation: Ideal for handheld and compact measurement devices.
Battery Monitoring: Provides accurate voltage and current sensing for battery systems.
Consumer Electronics: Improves signal precision in IoT gadgets and smart devices.
Industrial Automation: Enables data acquisition for control and monitoring systems.
Sensor Data Processing: Suitable for analog sensors requiring digital conversion.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| ADC Type | ADS1115 (Chinese version) |
| Channels | 4 single-ended or 2 differential |
| Resolution | 16-bit |
| Supply Voltage | 2.0V – 5.5V |
| Input Voltage Range | ±256mV to full supply voltage |
| Current Consumption | 150μA (Continuous Mode) |
| Data Rate | 8 SPS – 860 SPS (Programmable) |
| Input Configuration | Single-ended or differential |
| Interface | I2C-compatible, four selectable addresses |
| Operating Temperature | -40°C to +125°C |
| Integrated Features | PGA, voltage reference, oscillator, comparator |
| Package Type | QFN-10 / MSOP-10 |
| Applications | Battery monitoring, IoT devices, sensors, automation |
| Shipment Weight | 0.0003 kg |
| Shipment Dimensions | 3 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x ADS1115 4-Channel 16-Bit Precision Analog-to-Digital Converter (ADC) Module China
