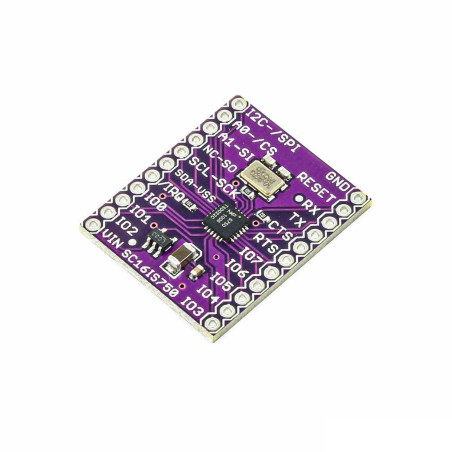

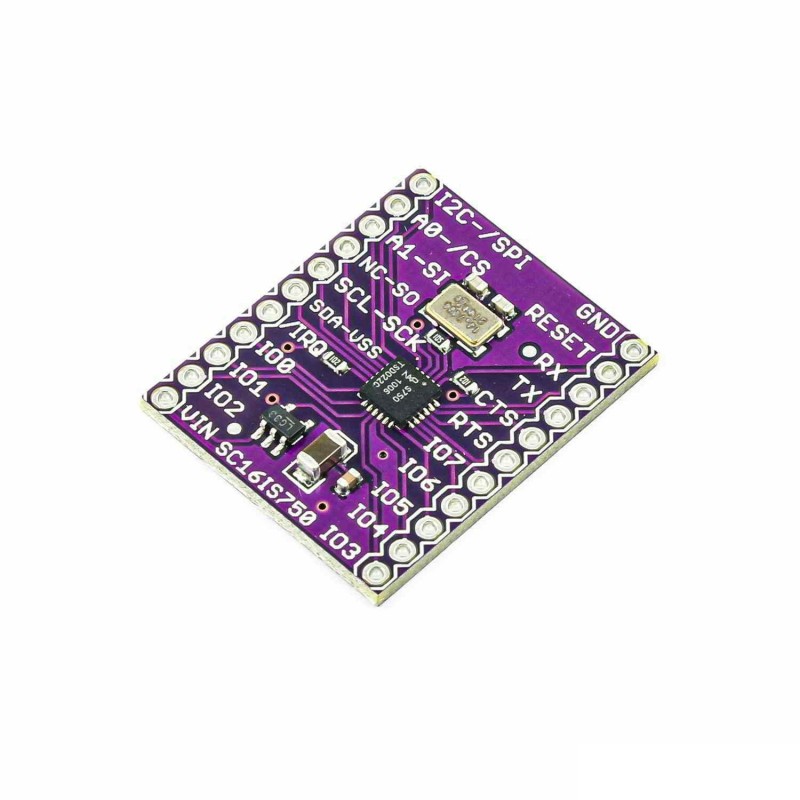

    CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module

    RBD-3297

    • I2C/SPI to Dual UART converter module based on the SC16IS750 chipset.
    • Expands serial communication ports for MCUs with limited UART capability.
    • Supports both I2C and SPI protocols for flexible integration.
    • Features a 14.7456 MHz crystal oscillator for stable, high-speed communication.
    • Compatible with 3.3V and 5V logic systems including Arduino, ESP32, and Raspberry Pi.
    • Ideal for IoT, industrial automation, and embedded serial communication applications.
    BDT 650
    BDT 650 BDT 650 BDT 650 BDT 650
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 650 Tax excluded
    BDT 650 Tax included
    BDT 0 Tax
    BDT 650 Tax excluded
    BDT 0 Tax
    BDT 650 Tax included
    Quantity
    In-Stock
    20 Items

    20 items in stock
    Description

    The CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module is a versatile communication interface designed to add dual UART functionality to microcontrollers with limited serial ports. Using the powerful SC16IS750 chipset, it seamlessly converts I2C or SPI data to UART, enabling efficient serial communication with devices such as GPS modules, GSM modems, or Bluetooth modules. Operating between 3.3V and 5.5V, it ensures broad compatibility across platforms like Arduino, ESP32, STM32, and Raspberry Pi. The integrated 14.7456 MHz crystal oscillator provides highly stable baud rate generation for precise data transmission. This compact and breadboard-friendly module simplifies prototyping and development, making it an excellent choice for IoT systems, industrial automation, and embedded communication networks that require multiple serial connections. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Dual UART Expansion: Adds two UART ports for microcontrollers with limited serial interfaces.

    2. I2C & SPI Interface: Flexible communication selection for diverse applications.

    3. High-Speed Communication: SPI supports data rates up to 5 Mbps for faster performance.

    4. Integrated Oscillator: 14.7456 MHz crystal ensures precise and stable UART timing.

    5. Voltage Flexibility: Works with both 3.3V and 5V logic levels.

    6. Low Power Operation: Energy-efficient design for embedded and IoT applications.

    7. Compact Design: Breadboard-friendly form factor for easy prototyping.

    8. Wide MCU Compatibility: Works with Arduino, ESP32, STM32, and Raspberry Pi platforms.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. IoT Systems: Expand serial interfaces for sensors, modems, or GPS modules.

    2. Industrial Automation: Reliable communication bridge between PLCs and UART peripherals.

    3. Embedded Systems: Add extra UARTs for debugging and multi-device communication.

    4. Robotics: Manage multiple serial-controlled components simultaneously.

    5. Development & Testing: Ideal for engineers working with multi-UART hardware setups.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelCJMCU-750 SC16IS750
    ChipsetSC16IS750
    Communication InterfaceI2C / SPI
    UART Channels2
    Operating Voltage3.3V – 5.5V DC
    Logic Level Compatibility3.3V / 5V
    Maximum Baud Rate5 Mbps (SPI Mode)
    Oscillator Frequency14.7456 MHz Crystal
    Power ConsumptionLow
    Operating Temperature-40°C to +85°C
    Board DimensionsCompact / Breadboard-Friendly
    CompatibilityArduino, ESP32, STM32, Raspberry Pi
    Application AreasIoT, Automation, Embedded Systems
    Shipment Weight0.01 kg
    Shipment Dimensions3 × 2 × 1 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    How to Use the CJMCU-750 SC16IS750 I2C/SPI to UART Converter Module

    1. Power the Module

      • Connect VIN to 3.3V or 5V (depending on the microcontroller)
      • Connect GND to ground

    2. Select Communication Mode (I2C/SPI)

      • The module supports both I2C and SPI; configure the mode using appropriate wiring and settings
      • I2C Mode: Connect SDA and SCL to the microcontroller
      • SPI Mode: Connect MOSI, MISO, SCK, and CS

    3. Connect the UART Device

      • Attach the RX and TX pins to the target UART-based device
      • Configure baud rate and serial settings in software

    4. Load the Driver Code

      • Utilize SC16IS750 libraries in Arduino, Raspberry Pi, or other platforms
      • Adjust baud rate, UART parameters, and control registers as required

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-3297
    20 Items

    Specific References

    EAN13
    3297
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    Reyax RYLR998 868/915MHz LoRa® Antenna Transceiver Module Robotics Bangladesh

    Reference: RBD-3056

    Reyax RYLR998 868/915MHz LoRa® Antenna Transceiver Module

    (0)
    Reyax RYLR998 LoRa® transceiver module for 868/915MHz communication Provides ultra-long range spread spectrum and high interference immunity Equipped with NUVOTON MCU and Semtech LoRa® engine for reliable performance Supports AT command control and built-in antenna with data encryption Features low power smart receiving mode for energy-efficient...
    BDT 3,249
    BDT 3,249 tax incl.
    BDT 3,249 tax excl.
    BDT 3,249 tax excl.
    BDT 3,249 tax incl.
    BDT 3,249 tax incl.
    BDT 0 Tax
    BDT 3,249 tax excl.
    BDT 3,249 tax excl.
    BDT 0 Tax
    BDT 3,249 tax incl.
    More Reyax RYLR998 868/915MHz LoRa® Antenna Transceiver Module
    In-Stock
    In stock: 12
    ICL8038 12V to 15V 10Hz-450KHz Triangular/Rectangular/Sine Wave Signal Generator Module Robotics Bangladesh ICL8038 12V to 15V 10Hz-450KHz Triangular/Rectangular/Sine Wave Signal Generator Module Robotics Bangladesh

    Reference: RBD-2761

    ICL8038 12V to 15V 10Hz-450KHz Triangular/Rectangular/Sine Wave Signal Generator Module

    (0)
    ICL8038-based waveform generator module (triangular, square, sine) Wide frequency range: 10Hz to 450KHz adjustable across 5 ranges Low distortion sine wave (≤1%) and linear triangular output (0.1%) Duty cycle adjustable from 2% to 98% for flexible applications Multiple adjustments: frequency, amplitude, duty cycle, linearity Compact 54.5 × 37.8mm PCB,...
    BDT 580
    BDT 580 tax incl.
    BDT 580 tax excl.
    BDT 580 tax excl.
    BDT 580 tax incl.
    BDT 580 tax incl.
    BDT 0 Tax
    BDT 580 tax excl.
    BDT 580 tax excl.
    BDT 0 Tax
    BDT 580 tax incl.
    More ICL8038 12V to 15V 10Hz-450KHz Triangular/Rectangular/Sine Wave Signal Generator Module
    In-Stock
    In stock: 25
    MLX90333 Handle 3D Joystick Absolute Position Sensor Module Robotics Bangladesh MLX90333 Handle 3D Joystick Absolute Position Sensor Module Robotics Bangladesh

    Reference: RBD-3317

    MLX90333 Handle 3D Joystick Absolute Position Sensor Module

    (0)
    High-precision 3D joystick sensor using MLX90333 magnetometer technology Supports analog, PWM, and SPI output modes for versatile integration Fast sampling rate (200µs) and 12-bit resolution for accurate motion tracking Operates across -40°C to +85°C for reliable industrial and robotics applications Compact 28.5 × 22.1 × 3.3mm module with dual M3 mounting...
    BDT 1,150
    BDT 1,150 tax incl.
    BDT 1,150 tax excl.
    BDT 1,150 tax excl.
    BDT 1,150 tax incl.
    BDT 1,150 tax incl.
    BDT 0 Tax
    BDT 1,150 tax excl.
    BDT 1,150 tax excl.
    BDT 0 Tax
    BDT 1,150 tax incl.
    More MLX90333 Handle 3D Joystick Absolute Position Sensor Module
    In-Stock
    In stock: 9
    4×4 Matrix 16 Keyboard Keypad Robotics Bangladesh 4×4 Matrix 16 Keyboard Keypad Robotics Bangladesh

    Reference: RBD-2156

    4×4 Matrix 16 Keyboard Keypad

    (0)
    Easy communication with any microcontroller. Tactile type switches. Over 1,000,000 operations per key. Contact rated for 12V dc @ 20mA. Over 1,000,000 operations per key.
    BDT 350
    BDT 350 tax incl.
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 350 tax incl.
    BDT 350 tax incl.
    BDT 0 Tax
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 0 Tax
    BDT 350 tax incl.
    More 4×4 Matrix 16 Keyboard Keypad
    In-Stock
    In stock: 9
    AD7705 16-Bit ADC Analog Digital Converter Module Robotics Bangladesh

    Reference: RBD-3443

    AD7705 16-Bit ADC Analog Digital Converter Module

    (0)
    AD7705 16-Bit ADC Module for high-precision analog signal conversion Dual-channel input supporting differential and single-ended measurements SPI communication interface for easy microcontroller integration Programmable gain, polarity, and update rate via software Integrated RC filter and voltage divider for stable signal acquisition Ideal for industrial...
    BDT 390
    BDT 390 tax incl.
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 390 tax incl.
    BDT 390 tax incl.
    BDT 0 Tax
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 0 Tax
    BDT 390 tax incl.
    More AD7705 16-Bit ADC Analog Digital Converter Module
    In-Stock
    In stock: 17
    GY-SI5351 Clock Signal Generator Module Robotics Bangladesh

    Reference: RBD-3166

    GY-SI5351 Clock Signal Generator Module

    (0)
    GY-SI5351 Clock Signal Generator Module for high-precision frequency synthesis. Generates up to 8 independent frequencies (8 kHz – 160 MHz) with 0 ppm error. Controlled via I2C interface for easy and flexible configuration. Three independent outputs (3 Vpp) with ultra-low jitter (100 ps pp). Supports 25 MHz or 27 MHz crystal oscillators and optional...
    BDT 490
    BDT 490 tax incl.
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 490 tax incl.
    BDT 490 tax incl.
    BDT 0 Tax
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 0 Tax
    BDT 490 tax incl.
    More GY-SI5351 Clock Signal Generator Module
    In-Stock
    In stock: 96
    U-Blox NEO-6M GPS Module Robotics Bangladesh U-Blox NEO-6M GPS Module Robotics Bangladesh

    Reference: RBD-0797

    U-Blox NEO-6M GPS Module

    (0)
    5Hz position update rate. The cold start time of 38 s and Hot start time of 1 s. Configurable from 4800 Baud to 115200 Baud rates. (default 9600). SuperSense ® Indoor GPS: -162 dBm tracking sensitivity. Support SBAS (WAAS, EGNOS, MSAS, GAGAN). Separated 18 x 18mm GPS antenna. RoboticsBD In recent years 2022, due to a shortage of chips, some of the GPS...
    BDT 440
    BDT 440 tax incl.
    BDT 440 tax excl.
    BDT 440 tax excl.
    BDT 440 tax incl.
    BDT 440 tax incl.
    BDT 0 Tax
    BDT 440 tax excl.
    BDT 440 tax excl.
    BDT 0 Tax
    BDT 440 tax incl.
    More U-Blox NEO-6M GPS Module
    In-Stock
    In stock: 58
    Arduino MicroSD Card Module Robotics Bangladesh Arduino MicroSD Card Module Robotics Bangladesh

    Reference: RBD-0832

    Arduino MicroSD Card Module

    (0)
    Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm Control Interface: GND, VCC, MISO, MOSI, SCK, CS Size: 45 x 28mm Net weight: 6g
    BDT 75
    BDT 75 tax incl.
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 75 tax incl.
    BDT 75 tax incl.
    BDT 0 Tax
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 0 Tax
    BDT 75 tax incl.
    More Arduino MicroSD Card Module
    In-Stock
    In stock: 58
    Arduino Bluetooth Module HC-05 Original CSR Chip Robotics Bangladesh Arduino Bluetooth Module HC-05 Original CSR Chip Robotics Bangladesh

    Reference: RBD-3431

    Arduino Bluetooth Module HC-05 Original CSR Chip

    (0)
    Original CSR BC417 Chipset for high-performance and stable Bluetooth communication. Supports Both Master and Slave Modes – fully configurable via AT commands. Bluetooth 2.0 + EDR Protocol for fast data transfer and low power consumption. Wide Compatibility: Works with Arduino, Raspberry Pi, ESP32, STM32, and more. 6-Pin Interface with Built-in 3.3V...
    BDT 785
    BDT 785 tax incl.
    BDT 785 tax excl.
    BDT 785 tax excl.
    BDT 785 tax incl.
    BDT 785 tax incl.
    BDT 0 Tax
    BDT 785 tax excl.
    BDT 785 tax excl.
    BDT 0 Tax
    BDT 785 tax incl.
    More Arduino Bluetooth Module HC-05 Original CSR Chip
    In-Stock
    In stock: 26
    433MHz 100 Meters ASK Wireless Module Kit RF Robotics Bangladesh

    Reference: RBD-0741

    433MHz 100 Meters ASK Wireless Module Kit RF

    (0)
    Frequency Range: 433 MHZ ASK /OOK modulation mode Super anti-power interference Low-power sleep less than 1uA Low self-radiation Small size Frequency stability and reliability Various international testing standards
    BDT 435
    BDT 435 tax incl.
    BDT 435 tax excl.
    BDT 435 tax excl.
    BDT 435 tax incl.
    BDT 435 tax incl.
    BDT 0 Tax
    BDT 435 tax excl.
    BDT 435 tax excl.
    BDT 0 Tax
    BDT 435 tax incl.
    More 433MHz 100 Meters ASK Wireless Module Kit RF
    In-Stock
    In stock: 19
    GY-NEO-7M V2 Flight Control GPS Module Robotics Bangladesh GY-NEO-7M V2 Flight Control GPS Module Robotics Bangladesh

    Reference: RBD-3279

    GY-NEO-7M V2 Flight Control GPS Module

    (0)
    High-performance GPS module based on u-blox M8 GNSS engine. Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS systems for global coverage. Fast satellite acquisition and high positioning accuracy. Built-in flash memory allows firmware updates for future compatibility. Includes passive ceramic antenna and SMA connector for external active antenna....
    BDT 650
    BDT 650 tax incl.
    BDT 650 tax excl.
    BDT 650 tax excl.
    BDT 650 tax incl.
    BDT 650 tax incl.
    BDT 0 Tax
    BDT 650 tax excl.
    BDT 650 tax excl.
    BDT 0 Tax
    BDT 650 tax incl.
    More GY-NEO-7M V2 Flight Control GPS Module
    In-Stock
    In stock: 7
    AC230V LED lamp plate 5W 29MM Robotics Bangladesh AC230V LED lamp plate 5W 29MM Robotics Bangladesh

    Reference: RBD-1594

    AC230V LED lamp plate 5W 29MM

    (0)
    29mm diameter 10 LED Dimmable 50-degree viewing angle
    BDT 40
    BDT 40 tax incl.
    BDT 40 tax excl.
    BDT 40 tax excl.
    BDT 40 tax incl.
    BDT 40 tax incl.
    BDT 0 Tax
    BDT 40 tax excl.
    BDT 40 tax excl.
    BDT 0 Tax
    BDT 40 tax incl.
    More AC230V LED lamp plate 5W 29MM
    In-Stock
    In stock: 6
    5V 1 Channel Solid State Relay (SSR) Robotics Bangladesh

    Reference: RBD-0737

    5V 1 Channel Solid State Relay (SSR)

    (0)
    Power supply:5VDC/160mA Switching Voltage (VAC):240@2A Isolation: Phototriac
    BDT 269
    BDT 269 tax incl.
    BDT 269 tax excl.
    BDT 269 tax excl.
    BDT 269 tax incl.
    BDT 269 tax incl.
    BDT 0 Tax
    BDT 269 tax excl.
    BDT 269 tax excl.
    BDT 0 Tax
    BDT 269 tax incl.
    More 5V 1 Channel Solid State Relay (SSR)
    In-Stock
    In stock: 77
    1 Channel 12V 30A Relay Control Board Module with Optocoupler Robotics Bangladesh

    Reference: RBD-2658

    1 Channel 12V 30A Relay Control Board Module with Optocoupler

    (0)
    1 Channel 12V 30A relay control board with optocoupler isolation for safe and reliable switching Supports both DC and AC control signals for wide application compatibility Capable of handling up to 220V AC loads, ideal for high-power appliances and automation projects Built-in high impedance controller pin with pull-down circuit to prevent malfunction...
    BDT 330
    BDT 330 tax incl.
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 330 tax incl.
    BDT 330 tax incl.
    BDT 0 Tax
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 0 Tax
    BDT 330 tax incl.
    More 1 Channel 12V 30A Relay Control Board Module with Optocoupler
    In-Stock
    In stock: 11
    3.3V-30V 1Ch 1Hz-150KHz Dual Mode Signal Generator Square Wave LCD PWM Pulse Frequency Duty Cycle Module Robotics Bangladesh

    Reference: RBD-2354

    3.3V-30V 1Ch 1Hz-150KHz Dual Mode Signal Generator Square Wave LCD PWM Pulse Frequency Duty Cycle Module

    (0)
    Versatile Signal Generator: Supports dual modes (PWM and PULSE) for enhanced flexibility. Wide Frequency Range: Operates from 1Hz to 150KHz with ±2% frequency accuracy. Customizable Outputs: Adjust duty cycle, pulse width, delay, and number of pulses. User-Friendly Interface: LCD display for real-time monitoring and precise adjustments. Compact &...
    BDT 690
    BDT 690 tax incl.
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 690 tax incl.
    BDT 690 tax incl.
    BDT 0 Tax
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 0 Tax
    BDT 690 tax incl.
    More 3.3V-30V 1Ch 1Hz-150KHz Dual Mode Signal Generator Square Wave LCD PWM Pulse Frequency Duty Cycle Module
    In-Stock
    In stock: 22
    Voltage to Current Transmitter Signal Module Robotics Bangladesh Voltage to Current Transmitter Signal Module Robotics Bangladesh

    Reference: RBD-0559

    Voltage to Current Transmitter Signal Module

    (0)
    Power supply: DC 7-30 V Input Voltage: 0-10V Output current: 4-20mA  0-5V to 4-20mA Linear Conversion
    BDT 880
    BDT 880 tax incl.
    BDT 880 tax excl.
    BDT 880 tax excl.
    BDT 880 tax incl.
    BDT 880 tax incl.
    BDT 0 Tax
    BDT 880 tax excl.
    BDT 880 tax excl.
    BDT 0 Tax
    BDT 880 tax incl.
    More Voltage to Current Transmitter Signal Module
    In-Stock
    In stock: 82
    - BDT 36 Reduced price Arduino Bluetooth Module HC-06 Robotics Bangladesh Arduino Bluetooth Module HC-06 Robotics Bangladesh

    Reference: RBD-0040

    Arduino Bluetooth Module HC-06

    (0)
    Bluetooth 2.0 Module Based on CSR BC04 Chip – Ideal for reliable wireless communication. Slave Mode Only – Perfect for receiving data from smartphones or other master devices. Wide Operating Voltage (3.3V to 6V) with onboard regulator for easy integration. Built-in 2.4GHz PCB Antenna – Supports wireless range up to 10 meters. Simple UART Interface (VCC,...
    BDT 414 BDT 450
    BDT 450 BDT 414 tax incl.
    BDT 450 BDT 414 tax excl.
    BDT 450 BDT 414 tax excl.
    BDT 450 BDT 414 tax incl.
    BDT 450 BDT 414 tax incl.
    BDT 0 BDT 0 Tax
    BDT 450 BDT 414 tax excl.
    BDT 450 BDT 414 tax excl.
    BDT 0 BDT 0 Tax
    BDT 450 BDT 414 tax incl.
    More Arduino Bluetooth Module HC-06
    In-Stock
    In stock: 27
    M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module Robotics Bangladesh M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module Robotics Bangladesh

    Reference: RBD-0103

    M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module

    (0)
    This is M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module. The nRF24L01 is a highly integrated, ultra-low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. With peak RX/TX currents lower than 14mA, a sub μA power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01...
    BDT 129
    BDT 129 tax incl.
    BDT 129 tax excl.
    BDT 129 tax excl.
    BDT 129 tax incl.
    BDT 129 tax incl.
    BDT 0 Tax
    BDT 129 tax excl.
    BDT 129 tax excl.
    BDT 0 Tax
    BDT 129 tax incl.
    More M177 NRF24L01 2.4GHz Antenna Wireless Transceiver Module
    In-Stock
    In stock: 153
    APC220 Radio Communication Module 1KM Line of sight (LOS) Robotics Bangladesh APC220 Radio Communication Module 1KM Line of sight (LOS) Robotics Bangladesh

    Reference: RBD-0196

    Brand: DFRobot

    APC220 Radio Communication Module 1KM Line of sight (LOS)

    (0)
    The APC220 radio module offers a cost-effective solution for wireless data communications, featuring an embedded high-speed microprocessor and high-performance IC. With its transparent UART/TTL interface, it eliminates the need for packetizing and data encoding, making it a popular choice among customers seeking better range performance at a low cost.
    BDT 4,990
    BDT 4,990 tax incl.
    BDT 4,990 tax excl.
    BDT 4,990 tax excl.
    BDT 4,990 tax incl.
    BDT 4,990 tax incl.
    BDT 0 Tax
    BDT 4,990 tax excl.
    BDT 4,990 tax excl.
    BDT 0 Tax
    BDT 4,990 tax incl.
    More APC220 Radio Communication Module 1KM Line of sight (LOS)
    In-Stock
    In stock: 5
    Sold-out Logic Level Converter Robotics Bangladesh Logic Level Converter Robotics Bangladesh

    Reference: RBD-0272

    Brand: Waveshare

    Logic Level Converter

    (0)
    Voltage level: 1.8V-6V Dimension: 38mm x 31.6mm Conversion  level  range:  1.8 V-6 V Instructions for use:  (3.3 V,  5 V  to  each other) 4 pairs of power supply interfaces, supports more situation Use tantalum capacitors for power filter, provides more stability VCCB 5V  power supply  (can  be an external  5V power supply)
    BDT 550
    BDT 550 tax incl.
    BDT 550 tax excl.
    BDT 550 tax excl.
    BDT 550 tax incl.
    BDT 550 tax incl.
    BDT 0 Tax
    BDT 550 tax excl.
    BDT 550 tax excl.
    BDT 0 Tax
    BDT 550 tax incl.
    More Logic Level Converter
    Sold-out
    In stock: -1
    On sale! ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module Robotics Bangladesh

    Reference: RBD-0345

    ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module

    (0)
    802.11 b/g/n Standards Wi-Fi Direct (P2P), soft-AP 1MB Flash Memory Integrated low power 32-bit CPU could be used as an application processor A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) RoboticsBD
    BDT 194
    BDT 194 tax incl.
    BDT 194 tax excl.
    BDT 194 tax excl.
    BDT 194 tax incl.
    BDT 194 tax incl.
    BDT 0 Tax
    BDT 194 tax excl.
    BDT 194 tax excl.
    BDT 0 Tax
    BDT 194 tax incl.
    More ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module
    In-Stock
    In stock: 305
    I2C Bi-Directional Logic Level Converter- 2 Channel Robotics Bangladesh I2C Bi-Directional Logic Level Converter- 2 Channel Robotics Bangladesh

    Reference: RBD-0358

    I2C Bi-Directional Logic Level Converter- 2 Channel

    (0)
    Dimensions: 11×15 x 2 (L x W x H) mm Weight: 1gm Mutual transform between 5V TTL and 3.3V TTL Two channels of logic and high voltage low voltage logic can two-way transform Portable and lightness, with 2 rows 4 pin contact pins
    BDT 250
    BDT 250 tax incl.
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 250 tax incl.
    BDT 250 tax incl.
    BDT 0 Tax
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 0 Tax
    BDT 250 tax incl.
    More I2C Bi-Directional Logic Level Converter- 2 Channel
    In-Stock
    In stock: 43
    - BDT 101 Reduced price ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier Robotics Bangladesh ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier Robotics Bangladesh

    Reference: RBD-0383

    ADS1115 4-Channel 16-Bit Precision Analog-to-Digital Converter (ADC) Module Original

    (0)
    Wide Supply Range: 2.0v To 5.5vLow Current ConsumptionContinuous Mode: Only 150µa Single-shotAuto Shut-downProgrammable Data Rate: 8SPS to 860SPSIt has Internal low-drift voltage reference
    BDT 469 BDT 570
    BDT 570 BDT 469 tax incl.
    BDT 570 BDT 469 tax excl.
    BDT 570 BDT 469 tax excl.
    BDT 570 BDT 469 tax incl.
    BDT 570 BDT 469 tax incl.
    BDT 0 BDT 0 Tax
    BDT 570 BDT 469 tax excl.
    BDT 570 BDT 469 tax excl.
    BDT 0 BDT 0 Tax
    BDT 570 BDT 469 tax incl.
    More ADS1115 4-Channel 16-Bit Precision Analog-to-Digital Converter (ADC) Module Original
    In-Stock
    In stock: 110
    You might also like
    5-Way Tactile Switch Breakout Robotics Bangladesh 5-Way Tactile Switch Breakout Robotics Bangladesh

    Reference: RBD-3298

    5-Way Tactile Switch Breakout

    (0)
    5-way tactile switch module offering up, down, left, right, and center click control Ideal for menu navigation, robotic control, and gaming input applications. Compact and breadboard-friendly design for easy prototyping. Provides simple digital output compatible with Arduino, ESP32, and Raspberry Pi. Built with a durable tactile mechanism ensuring...
    BDT 295
    BDT 295 tax incl.
    BDT 295 tax excl.
    BDT 295 tax excl.
    BDT 295 tax incl.
    BDT 295 tax incl.
    BDT 0 Tax
    BDT 295 tax excl.
    BDT 295 tax excl.
    BDT 0 Tax
    BDT 295 tax incl.
    More 5-Way Tactile Switch Breakout
    In-Stock
    In stock: 13
    MD-PS002 Vacuum Pressure Sensor Module Robotics Bangladesh MD-PS002 Vacuum Pressure Sensor Module Robotics Bangladesh

    Reference: RBD-3299

    MD-PS002 Vacuum Pressure Sensor Module

    (0)
    High-precision vacuum pressure sensor for industrial and automation applications. Measures pressure from vacuum (-100kPa) to +50kPa above atmospheric Operates at 5V DC or 1mA constant current for stable performance. Provides analog output for real-time monitoring with microcontrollers. Compact size (6.8×6.8×4.6mm) ideal for embedded designs. Perfect for...
    BDT 350
    BDT 350 tax incl.
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 350 tax incl.
    BDT 350 tax incl.
    BDT 0 Tax
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 0 Tax
    BDT 350 tax incl.
    More MD-PS002 Vacuum Pressure Sensor Module
    In-Stock
    In stock: 19

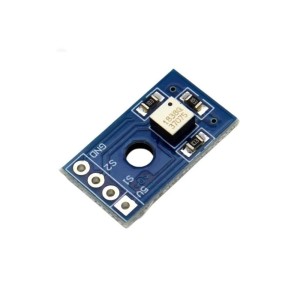

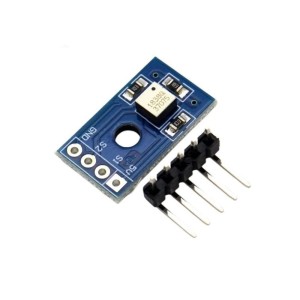

    RPI-1031 Angle Sensor Robotics Bangladesh RPI-1031 Angle Sensor Robotics Bangladesh

    Reference: RBD-3301

    RPI-1031 Angle Sensor

    (0)
    High-precision 360° angle sensor designed for accurate rotational measurement. Utilizes optical sensing technology for superior accuracy and stability. Provides ±0.3° precision for precise motion and position tracking Digital output interface for easy integration with microcontrollers. Compact and durable design ideal for robotics, automation, and...
    BDT 450
    BDT 450 tax incl.
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 450 tax incl.
    BDT 450 tax incl.
    BDT 0 Tax
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 0 Tax
    BDT 450 tax incl.
    More RPI-1031 Angle Sensor
    In-Stock
    In stock: 18
    SHT35 Temperature and Humidity Sensor Module I2C Interface Robotics Bangladesh SHT35 Temperature and Humidity Sensor Module I2C Interface Robotics Bangladesh

    Reference: RBD-3300

    SHT35 Temperature and Humidity Sensor Module I2C Interface

    (0)
    High-precision temperature and humidity sensor using the advanced SHT35 digital sensor. Provides ±1.5% RH humidity and ±0.2°C temperature accuracy. Supports I2C communication interface for easy integration with Arduino, ESP32, STM32, and Raspberry Pi. Wide measurement range from 0–100% RH and -40°C to 125°C. Low power consumption makes it ideal for...
    BDT 1,250
    BDT 1,250 tax incl.
    BDT 1,250 tax excl.
    BDT 1,250 tax excl.
    BDT 1,250 tax incl.
    BDT 1,250 tax incl.
    BDT 0 Tax
    BDT 1,250 tax excl.
    BDT 1,250 tax excl.
    BDT 0 Tax
    BDT 1,250 tax incl.
    More SHT35 Temperature and Humidity Sensor Module I2C Interface
    In-Stock
    In stock: 5

    Follow us on Facebook

    Facebook
