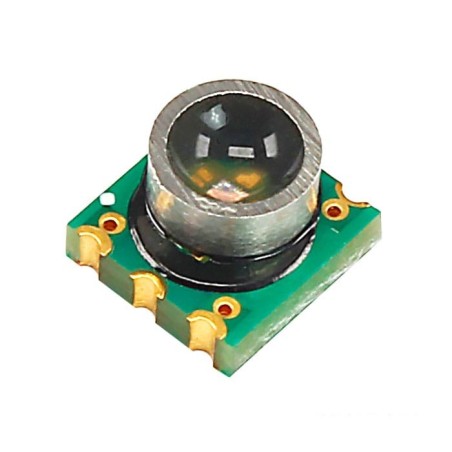

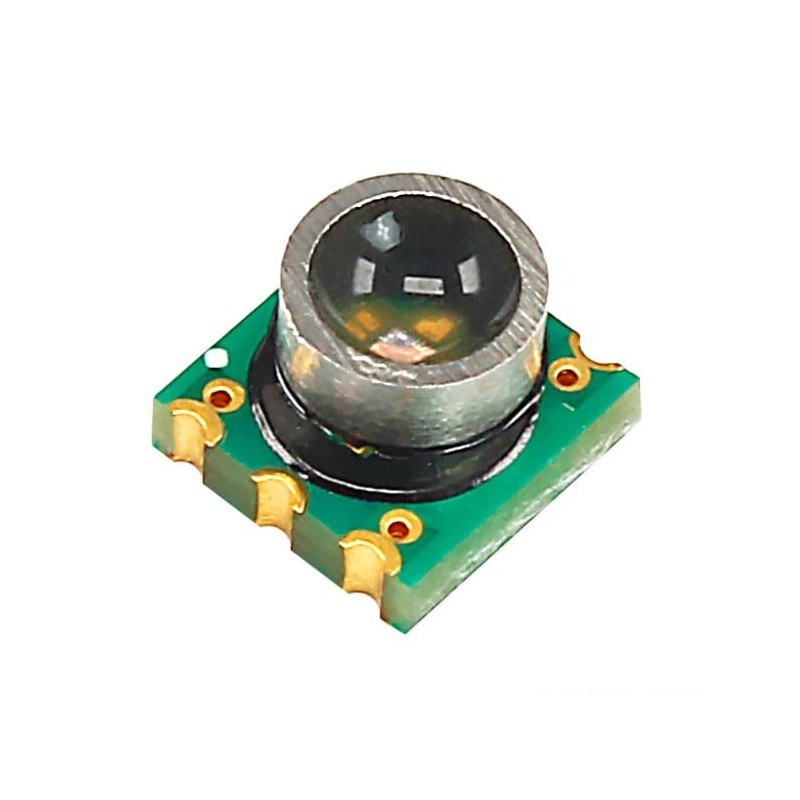

MD-PS002 Vacuum Pressure Sensor Module

The MD-PS002 Vacuum Pressure Sensor Module is a compact, high-accuracy pressure sensor designed to measure vacuum and low positive pressure levels in a variety of industrial and electronic applications. Operating at 5V DC or 1mA constant current, it uses a resistor bridge configuration to deliver precise analog output readings. With a pressure measurement range from -100kPa to +50kPa (up to 150kPa absolute), this sensor is ideal for monitoring air pressure, vacuum systems, and fluid flow. Its small 6.8mm × 6.8mm × 4.6mm footprint makes it suitable for integration in portable and embedded systems. The MD-PS002 is commonly used in automotive MAP sensors, medical devices, and industrial automation, ensuring accurate and consistent performance across a wide temperature range (-40°C to +85°C). Its reliability and versatility make it an essential component for real-time pressure measurement in smart, IoT-enabled projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

1. High-Accuracy Pressure Sensing: Provides stable and precise vacuum-to-atmospheric measurements.

2. Dual Power Options: Operates with 5V DC or 1mA constant current for flexibility.

3. Analog Output Interface: Delivers real-time voltage output proportional to pressure changes.

4. Wide Measurement Range: Measures vacuum (-100kPa) to +50kPa with up to 150kPa absolute.

5. Compact Form Factor: Ultra-small 6.8×6.8×4.6mm package ideal for embedded devices.

6. Industrial-Grade Stability: Designed for demanding conditions with wide operating temperatures.

7. Multi-Application Use: Perfect for automotive, medical, and IoT environments.

8. Reliable Performance: Built for long-term accuracy and low drift operation.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

1. Industrial Automation: Monitors pressure in pneumatic and steam systems.

2. Automotive Systems: Ideal for MAP sensors, air pumps, and suspension controls.

3. Medical Devices: Suitable for blood pressure and respiration monitoring systems.

4. Aerospace & Aerodynamics: Used for absolute pressure sensing and air dynamics research.

5. Leak Detection Systems: Detects subtle pressure changes in closed environments.

6. Smart IoT Devices: Enables remote air pressure and vacuum sensing applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

How to Use the MD-PS002 Vacuum Pressure Sensor Module

1. Power the Sensor

   • Connect VCC to 5V and GND to ground.
   • If using a constant current mode, set it to 1mA.

2. Connect Output to Microcontroller

   • The analog output provides a voltage proportional to the measured pressure.
   • Connect the output pin to an ADC (Analog-to-Digital Converter) input of a microcontroller (such as Arduino, ESP32, or STM32).

3. Read the Pressure Data

   • Convert the analog voltage reading to pressure values using a pre-defined formula.
   • Use this data for monitoring and control applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x MD-PS002 Vacuum Pressure Sensor Module
