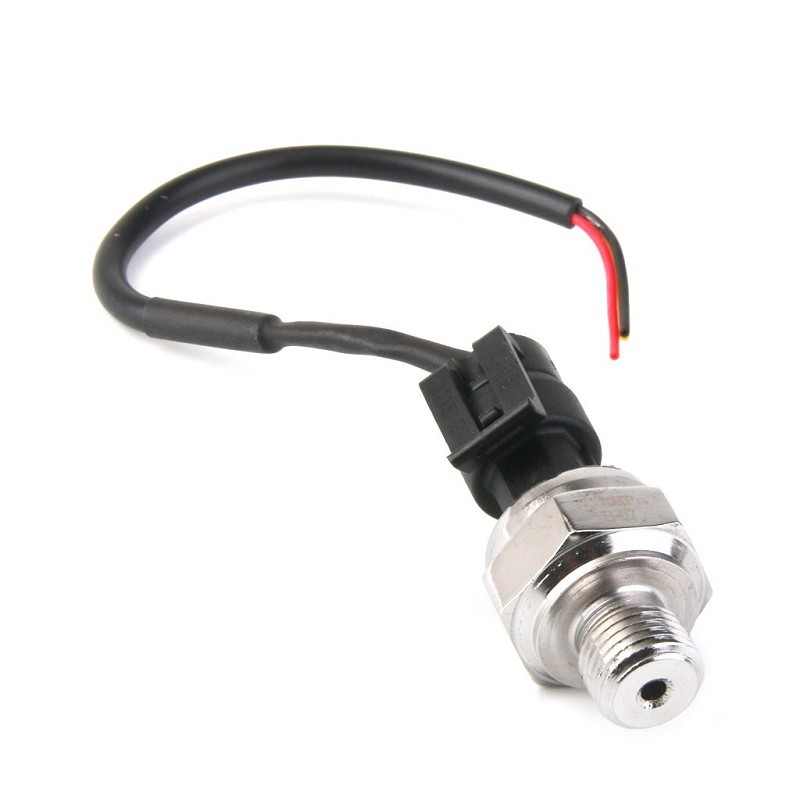

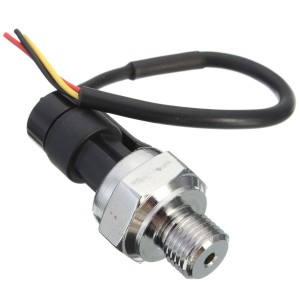

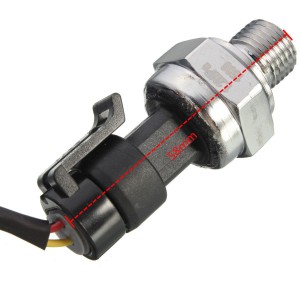

5MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2965

Stainless steel pressure transducer with G1/4" threaded interface
Pressure range up to 5MPa, ideal for high-pressure monitoring
High accuracy (±1.5%FS) with <2ms response time
Output: 0.5–4.5VDC @ 5V input, low power <10mA consumption
IP65-rated waterproof & surge-protected stainless steel body
Suitable for oil, gas, hydraulic, and industrial automation systems

Description
Product Details

Description

The 5MPa G1/4" Stainless Steel Pressure Transducer Sensor is designed for high-pressure measurement in demanding applications. With a durable stainless steel body, this sensor ensures long-lasting stability and reliability. Operating at 5V DC input and delivering a 0.5–4.5V analog output, it integrates seamlessly with microcontrollers, PLCs, and industrial monitoring systems. With IP65 waterproof protection, surge resistance, and low power consumption (<10mA), this sensor is well-suited for oil tanks, gas pipelines, hydraulic systems, and process automation where accurate pressure readings are crucial. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Pressure Range – Capable of measuring up to 5MPa.
High Accuracy – ±1.5%FS with reliable precision.
Fast Response – <2ms for real-time monitoring.
Durable Stainless Steel Body – Ensures rigidity and long lifespan.
Analog Output – 0.5–4.5VDC, easy to interface with controllers.
Low Power Consumption – <10mA operation.
Surge Protection & IP65 Waterproof – Safe for industrial use.
Compact & Lightweight – Easy to install in confined spaces.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Oil & Gas Pipelines – High-pressure monitoring and control.
Hydraulic Systems – Pressure measurement in heavy machinery.
Industrial Automation – Process monitoring in production lines.
Liquid & Gas Tanks – Reliable detection of internal pressure.
Robotics & IoT Projects – Integration with Arduino/PLC for smart monitoring.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications

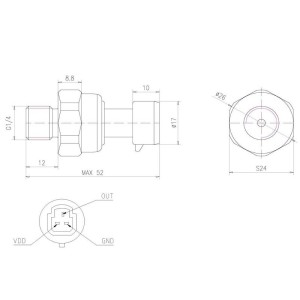

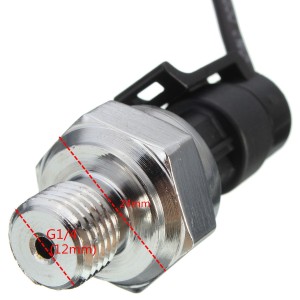

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–5MPa
Maximum Applied Pressure	2.4MPa (safe working)
Destruction Pressure	5MPa
Suitable Medium	Gas/liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0536 kg
Shipment Dimensions	8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 5MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
