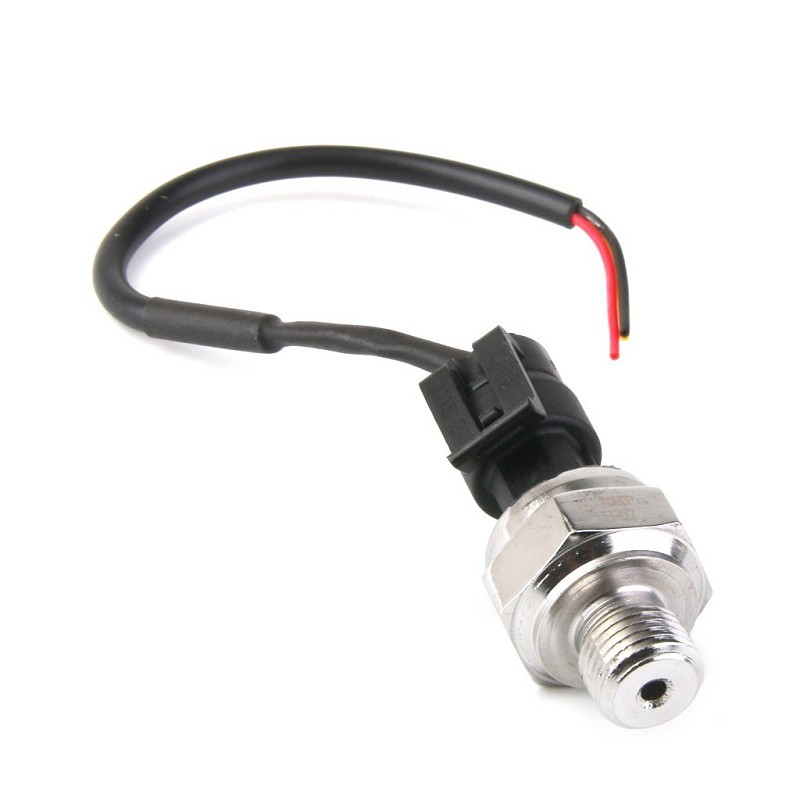

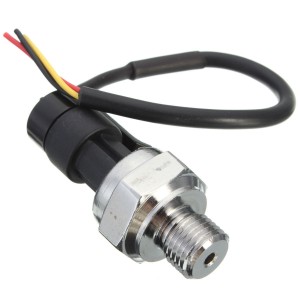

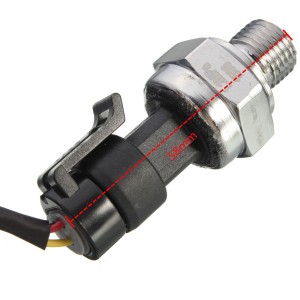

0.8MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2964

Stainless steel pressure transducer with G1/4" threaded interface
Pressure range up to 0.8MPa, suitable for low-to-medium pressure system
High accuracy (±1.5%FS) with <2ms fast response time
Output: 0.5–4.5VDC @ 5V input, low power <10mA consumption
Durable stainless steel body with surge protection and IP65 waterproof rating
Ideal for oil, gas, and liquid tanks in automation & monitoring projects

Description
Product Details

Description

The 0.8MPa G1/4" Stainless Steel Pressure Transducer Sensor is a compact and highly reliable solution for pressure monitoring in low-to-medium pressure systems. Built with a durable stainless steel body, this sensor ensures excellent accuracy (±1.5%FS) and long service life. It operates on 5V DC supply and provides a 0.5–4.5V analog output, making it easy to integrate with microcontrollers, PLCs, and data acquisition systems. With IP65 protection, surge protection, and <10mA low power consumption, this pressure transducer is well-suited for industrial automation, fluid monitoring, hydraulic systems, and IoT projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Low-to-Medium Pressure Range – Supports monitoring up to 0.8MPa.
High Accuracy – ±1.5%FS with excellent repeatability.
Durable Construction – Stainless steel body with surge protection.
Easy Integration – 0.5–4.5V output for direct MCU/PLC interfacing.
Fast Response – <2ms response time for real-time measurements.
Low Power Consumption – Operates under 10mA current.
Waterproof Protection – IP65 rating for reliable outdoor/industrial use.
Compact Design – Lightweight, easy to install and operate.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Oil & Gas Tanks – Monitoring pressure in controlled environments.
Hydraulic Systems – Suitable for low-pressure hydraulic lines.
Industrial Process Automation – Ensures stable performance in machinery.
Water & Fluid Systems – Ideal for liquid tanks and pipelines.
IoT & Robotics Projects – Integrates seamlessly with Arduino/MCU systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications

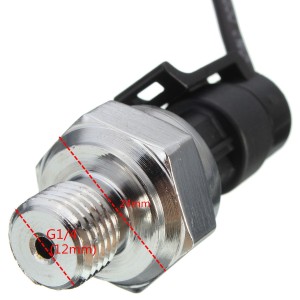

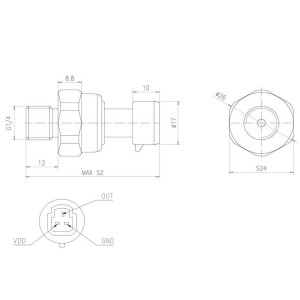

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–0.8MPa
Maximum Applied Pressure	0.8MPa
Destruction Pressure	3.0MPa
Suitable Medium	Gas, liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0517 kg
Shipment Dimensions	8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 0.8MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
