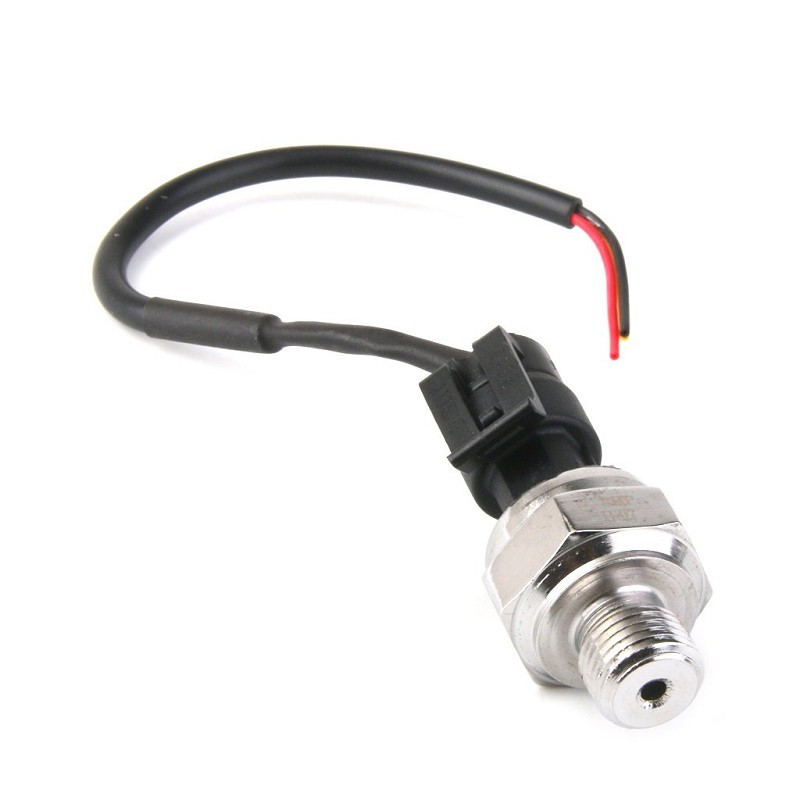

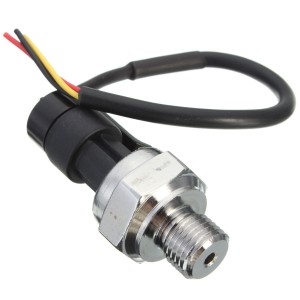

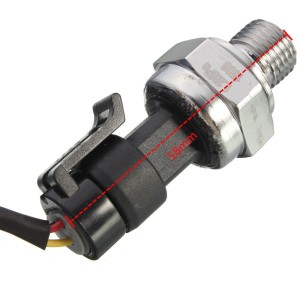

3MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2963

Stainless steel pressure transducer with G1/4" threaded interface
Pressure range up to 3MPa, ideal for high-pressure applications
High accuracy (±1.5%FS) with <2ms fast response time
Output: 0.5–4.5VDC @ 5V input, low power <10mA consumption
Durable, surge-protected design, IP65 waterproof rating
Perfect for oil, gas, and liquid tanks in industrial systems

Description
Product Details

Description

The 3MPa G1/4" Stainless Steel Pressure Transducer Sensor is engineered for high-pressure monitoring in gas, oil, and liquid systems. Built with a sturdy stainless steel body and precision compensation technology, it provides stable, accurate readings with ±1.5%FS error and excellent long-term reliability. Operating on a 5V DC supply, it delivers a 0.5–4.5V output that is easy to interface with microcontrollers and data acquisition systems. With a working range up to 3MPa, IP65 waterproof rating, and <2ms response time, this sensor is perfect for industrial automation, process control, and fluid monitoring applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Pressure Range – Supports monitoring up to 3MPa.
High Accuracy – ±1.5%FS with low error and excellent repeatability.
Stainless Steel Housing – Ensures durability and corrosion resistance.
Wide Application – Works with oil, gas, and liquid systems.
Fast Response – <2ms response time for real-time monitoring.
Low Power Operation – 5V input, <10mA current consumption.
IP65 Waterproof – Suitable for rugged industrial environments.
Standard G1/4 Interface – Easy and secure installation.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Industrial Oil Tank Monitoring – Reliable measurement in pressurized systems.
Gas Tank Pressure Control – Stable readings for gas storage and pipelines.
Water Pump & Hydraulic Systems – Ensures safe fluid pressure monitoring.
Process Automation – Enhances control in industrial machinery.
IoT & Robotics Projects – Ideal for integrating pressure sensing into smart systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications

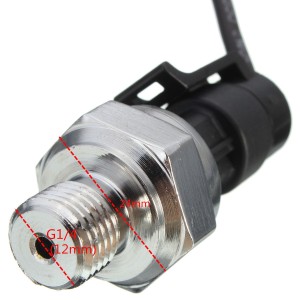

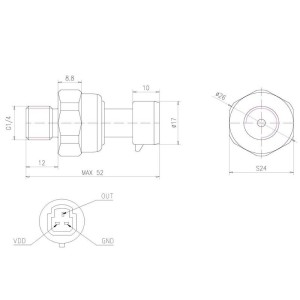

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–3MPa
Maximum Applied Pressure	2.4MPa
Destruction Pressure	3MPa
Suitable Medium	Gas, liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0514 kg
Shipment Dimensions	8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 3MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
