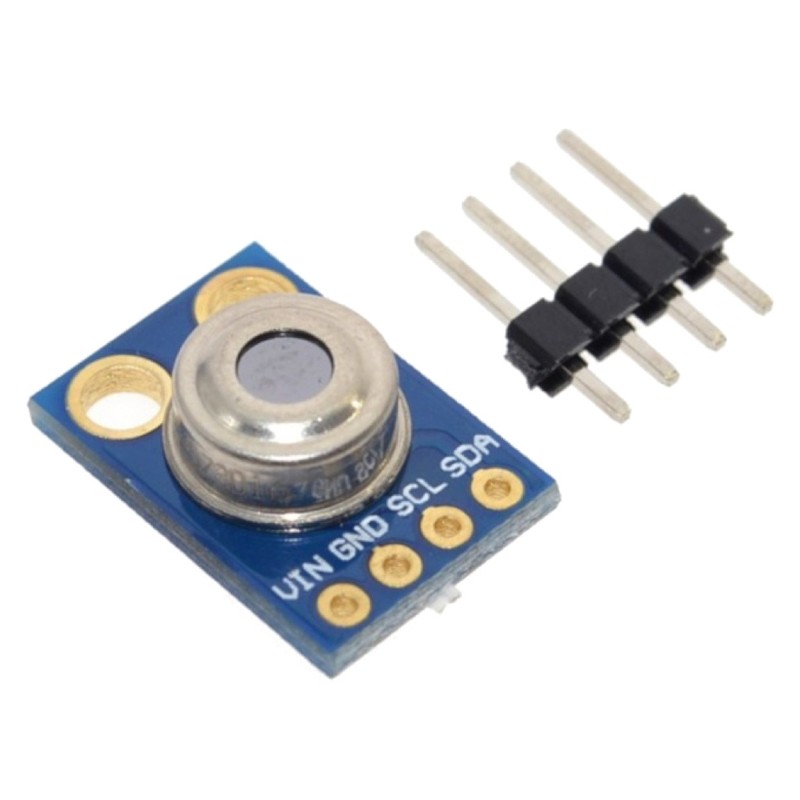

GY-906 MLX90614 BAA Non-Contact Infrared Temperature Sensor

RBD-4186

The GY-906 MLX90614 BAA is a non-contact infrared temperature sensor module designed to accurately measure object temperature without physical contact. It integrates a high-resolution 17-bit ADC and an internal DSP, delivering excellent accuracy, stability, and noise immunity. This makes it ideal for applications such as body temperature measurement, motion detection, industrial temperature monitoring, and smart automation systems.

BDT 1,050
BDT 1,050 BDT 1,050 BDT 1,050 BDT 1,050
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 1,050 Tax excluded
BDT 1,050 Tax included
BDT 0 Tax
BDT 1,050 Tax excluded
BDT 0 Tax
BDT 1,050 Tax included
Quantity
30 Items

30 items in stock
Description

Description

The GY-906 MLX90614 BAA is a non-contact infrared temperature sensor module designed to accurately measure object temperature without physical contact. It integrates a high-resolution 17-bit ADC and an internal DSP, delivering excellent accuracy, stability, and noise immunity. This makes it ideal for applications such as body temperature measurement, motion detection, industrial temperature monitoring, and smart automation systems.

The sensor has a 90° field of view (FOV) and reports the average temperature of all objects within that area. For best accuracy, a measuring distance of approximately 1 cm is recommended. The MLX90614 comes factory calibrated across wide temperature ranges, ensuring reliable measurements straight out of the box.

Thanks to its breakout board design, the module is plug-and-play compatible with popular platforms such as Arduino, Raspberry Pi, ESP8266, ESP32, and NodeMCU. A large ecosystem of tutorials, libraries, and example codes is available online, making integration quick and beginner-friendly.

Output Interfaces

The MLX90614 provides two output methods:

  • I2C / SMBus (TWI) digital interface

    • High resolution: 0.02 °C

  • PWM output

    • 10-bit resolution: 0.14 °C

Both interfaces are simple to use and well supported across common microcontroller platforms.

Features

  • High accuracy: ±0.5 °C around room temperature

  • Wide operating voltage: 3.3 V – 5 V

  • Onboard voltage regulator

  • Standard I2C interface with built-in pull-up resistors

  • SMBus-compatible digital communication

  • Configurable PWM output for continuous temperature reading

  • Factory calibrated over wide temperature ranges

  • Low power consumption

  • Compact size, low cost, easy integration

  • Power-saving mode and automotive-grade reliability

Specifications

  • Product Type: Non-Contact Infrared Temperature Sensor Module

  • Model: GY-906 MLX90614 BAA

  • Operating Voltage: 3 V – 5 V

  • Operating Current: ~2 mA

  • Communication Protocol: I2C / SMBus, PWM

  • Field of View (FOV): 90°

  • Ambient Temperature Range: −40 °C to +85 °C

  • Object Temperature Range: −70 °C to +380 °C

  • Recommended Measuring Distance: ~1 cm

  • PCB Dimensions: 11 mm × 17 mm

Applications

  • High-precision non-contact temperature measurement

  • Body temperature measurement and health monitoring

  • Thermal comfort sensing for HVAC systems

  • Industrial temperature monitoring of moving or inaccessible parts

  • Printers, copiers, and home appliances with temperature control

  • Smart buildings and automation systems

  • Livestock monitoring and movement detection

  • Multi-zone temperature monitoring (up to 127 sensors on a shared I2C bus)

  • Thermal alerts and safety systems

Package Includes

  • 1 × GY-906 MLX90614 BAA Non-Contact Infrared Temperature Sensor Module

Product Details
RBD-4186
30 Items

Specific References

EAN13
4186
