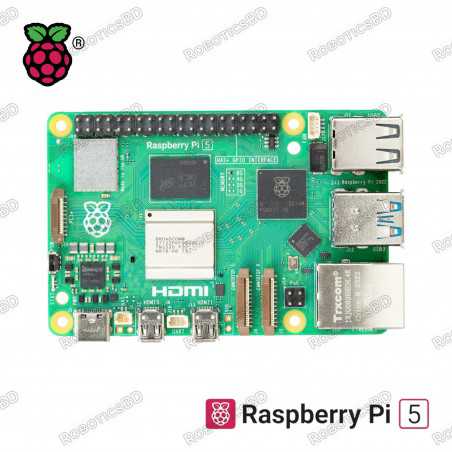

Greetings, Raspberry Pi enthusiasts! It’s official – the Raspberry Pi 5 has arrived!
Welcome to the cutting-edge Raspberry Pi 5 Model 8GB, the latest generation of this iconic computing marvel. Packed with a 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz, the Raspberry Pi 5 boasts an impressive 2–3× increase in CPU performance compared to its predecessor, the Raspberry Pi 4.
Not stopping there, it delivers a substantial boost in graphics power thanks to its 800MHz VideoCore VII GPU, supports dual 4Kp60 display output via HDMI, and offers state-of-the-art camera capabilities courtesy of a reimagined Raspberry Pi Image Signal Processor. It promises a seamless desktop experience for consumers and opens new horizons for industrial applications.
Take a moment to explore the upgrades introduced by the Raspberry Pi Foundation in this brand-new generation of the Raspberry Pi 5 Model 8GB pocket computer. Building upon the significant hardware enhancements of the Pi 4, the Pi 5 comes equipped with a host of hardware and software improvements outlined below. Featured By RoboticsBD.
Please check documentation tab for more information.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU
- LPDDR4X-4267 8GB SDRAM
- 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- Micro SD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires PoE+ HAT)
- 2 × 4 lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals
- 5V/5A DC power (PD enabled)
- Raspberry Pi standard 40-pin header
- Real-Time Clock (RTC), powered by an external battery
- On-board power button!!
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Desktop computer replacement
- Media center
- Retro gaming console
- Home automation hub
- Educational tool
- Robotics and artificial intelligence development
- Industrial control and automation
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | Raspberry Pi 5 Model 8GB |
| Processor | 64-bit Arm Cortex-A76 CPU |
| RAM | 8GB LPDDR4 SDRAM |
| Connectivity | 2 × USB 2.0 Ports
2 × USB 3.0 Ports
Bluetooth 5.0
USB-C
Wi-Fi + Bluetooth® Low Energy |
| GPIO | Standard 40-pin GPIO Header |
| Multimedia | H.265 (4Kp60 decode); |
| Video and Sound | 2 × micro HDMI ports (up to 4Kp60 supported)
4-Pole Stereo Audio and Composite Video Port |
| Clock Speed | 2.4 GHz |
| On Board Ports | 1 x DSI
1 x Ethenet
2 x Micro HDMI
2 x USB 2.0
2 x USB 3.0
40-pin 2.54 mm (2×20 strip) GPIO
USB Type-C port |
| Micro-SD Card Slot | Yes, Supports high-speed SDR104 Mode |
| Operating Temperature Range (°C) | -10 to 60 |
| Length (mm) | 85 |
| Width (mm) | 56 |
| Height (mm) | 8 |
| Weight (gm) | 105 |
| Shipment Weight | 0.155 kg |
| Shipment Dimensions | 10 × 9 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation (FAQ)
Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
You will need the latest version of Raspberry Pi OS, Bookworm, for your Raspberry Pi 5. Bookworm will launch in mid-October.
Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?
Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an under-powered supply. We recommend a high-quality 5V 5A USB-C power supply, such as the new Raspberry Pi 27W USB-C Power Supply.
Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?
Raspberry Pi 5 won't fit the Raspberry Pi 4 Case. We recommend the Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.
Does Raspberry Pi 5 need active cooling?
Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.
Documentation:
- Raspberry Pi 5 product brief
Raspberry Pi 4 vs. Raspberry Pi 5
| Raspberry Pi 4 | Raspberry Pi 5 |
| Processor | Broadcom BCM2711 | Broadcom BCM2712 |
| CPU | ARM-Cortex A72 (four cores) | ARM-Cortex A76 (four cores) |
| CPU capabilities | 64-Bit | 64-Bit |
| CPU frequency | 1.5/1.8GHz | 2.4GHz |
| GPU | VideoCore VI | VideoCore VII |
| SDRAM | LPDDR4-3200 SDRAM (1GB, 2GB, 4GB, 8GB) | LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch) |
| SD slot | Micro SD card slot | Micro SD card slot, with support for high-speed SDR104 mode |
| WLAN | 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi | 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| HDMI port | 2 Micro HDMI ports (up to 4Kp60) | 2 Micro HDMI ports (up to 4Kp60 simultaneously) |
| USB ports | 2 USB 2.0 ports & 2 USB 3.0 ports | 2 USB 2.0 ports & 2 USB 3.0 ports that support simultaneous 5Gbps operation |
| Ethernet | Gigabit Ethernet, with PoE+ support (requires PoE+ HAT) | Gigabit Ethernet, with PoE+ support (requires a new PoE+ HAT) |
| Camera port | 2-lane MIPI DSI, 2-line MIPI CSI | 2 × 4 lane MIPI camera/display transceivers |
| Power | 5V/3A DC (via USB-C connector or GPIO) | 5V/5A DC power (PD enabled) |
| Power supply | USB-C | USB-C |
| Audio jack | 4-pole stereo audio and composite video | Nope! |
| RTC | Nope | RTC and RTC battery connector |
| PCIe | Nope | PCIe 2.0 x1 interface for fast peripherals |
| Power Button | No | YES! |
Overall, the Raspberry Pi 5 offers a significant performance boost over the Raspberry Pi 4, thanks to its faster CPU, GPU, and memory. It also has a number of other improvements
However, it is important to note that the Raspberry Pi 5 is also more expensive than the Raspberry Pi 4. It also consumes more power, so you may need to use a more powerful power supply.
If you are looking for the best possible performance and don't mind paying a little more, then the Raspberry Pi 5 is the better choice. However, if you are on a tight budget or need a lower-power device, then the Raspberry Pi 4 is still a great option.
Package Includes:
1 x Raspberry Pi 5 8GB
