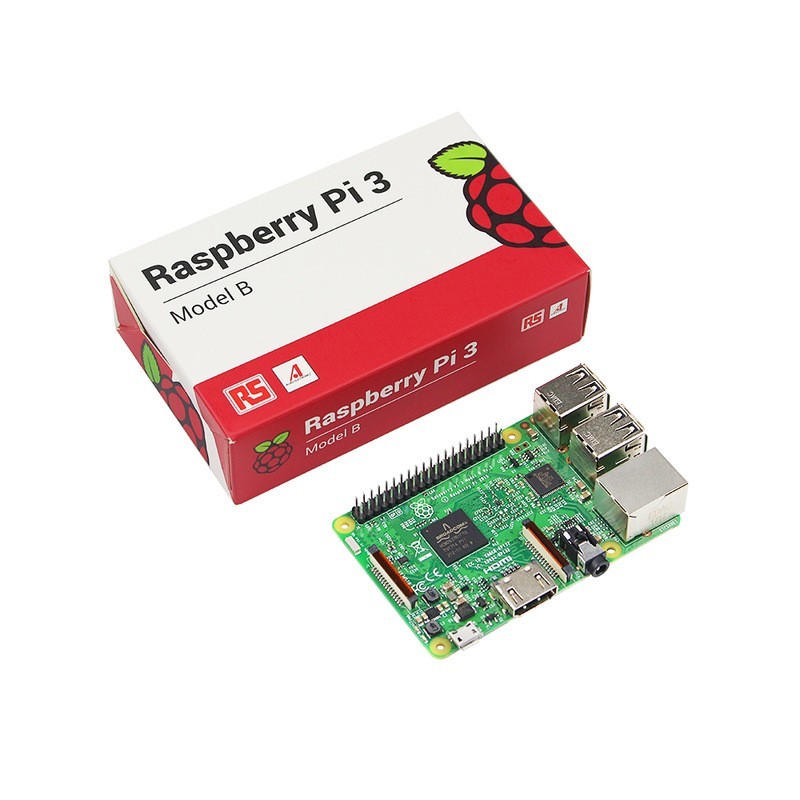

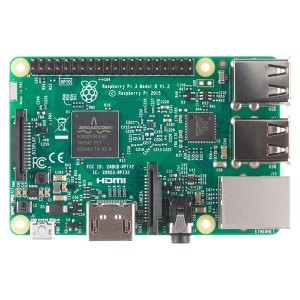

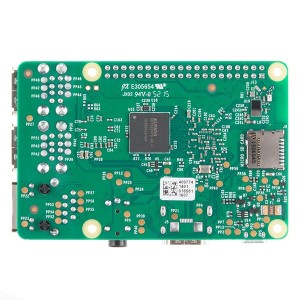

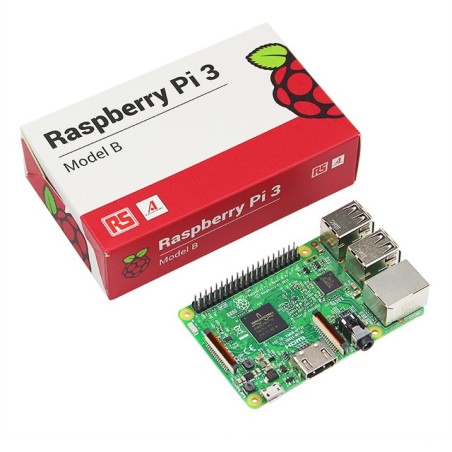

Raspberry Pi 3 Model B (Made in UK)

Due to limited stock availability, we have restricted this product.

The Raspberry Pi 3 – Model B Original quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth is the latest product in RoboticsBD among raspberry pi family. The Raspberry Pi 3 – Model B Original is a third generation product which maintains the same popular board format as other raspberry pi modules, but it has faster 1.2GHz 64Bit SoC, and onboard WiFi and Bluetooth

Raspberry Pi 3 Model B ARMv8 w/ 1GB RAM provides the same Pi features as before but with double the ram and a much faster processor. The Pi 3 has two major upgrades. The first is a next-generation Quad-Core Broadcom BCM2837 64-bit ARMv8 processor. This processor has speeds of up to 1.2GHz compared to the previous 900MHz on the Pi 2. The second upgrade is the addition of a built-in BCM43143 WiFi chip, allowing the Pi 3 to go wireless without additional peripherals. No more WiFi adapters. The Raspberry Pi 3 is also an excellent IoT solution with onboard Bluetooth Low Energy (BLE).

Back-Compatibility note: The Raspberry Pi 3 Model B original quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth has the same footprint and layout as the previous Model 2/B+ version, so will fit all Model 2/B+ items. However, the addition of a WiFi & Bluetooth Antenna has resulted in the ACT and PWR LEDs being moved to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not match up with the LEDs.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

• Processor:

  • Broadcom BCM2837 chipset.
  • 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
  • 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)

• GPU:

  • Dual-Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
  • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure

• Operating System:

  • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT

Connectors and Ports:

• Ethernet:

  • 10/100 BaseT Ethernet socket

• Video Output:

  • HDMI (rev 1.3 & 1.4)
  • Composite RCA (PAL and NTSC)

• Audio Output:

  • Audio Output 3.5mm jack
  • HDMI
  • 4 x USB 2.0 Connector

• GPIO Connector:

  • 40-pin 2.54 mm (100 mil) expansion header: 2×20 strip
  • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines

• Camera Connector:

  • 15-pin MIPI Camera Serial Interface (CSI-2)

• Display Connector:

  • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane

• Memory Card Slot:

  • Push/pull Micro SDIO

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

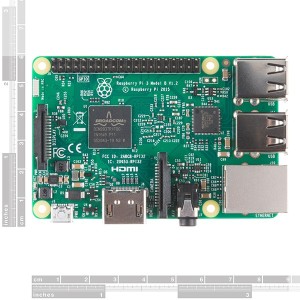

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1x Raspberry Pi 3 Model B (Made in UK).
