Reference: RBD-3017
Banner

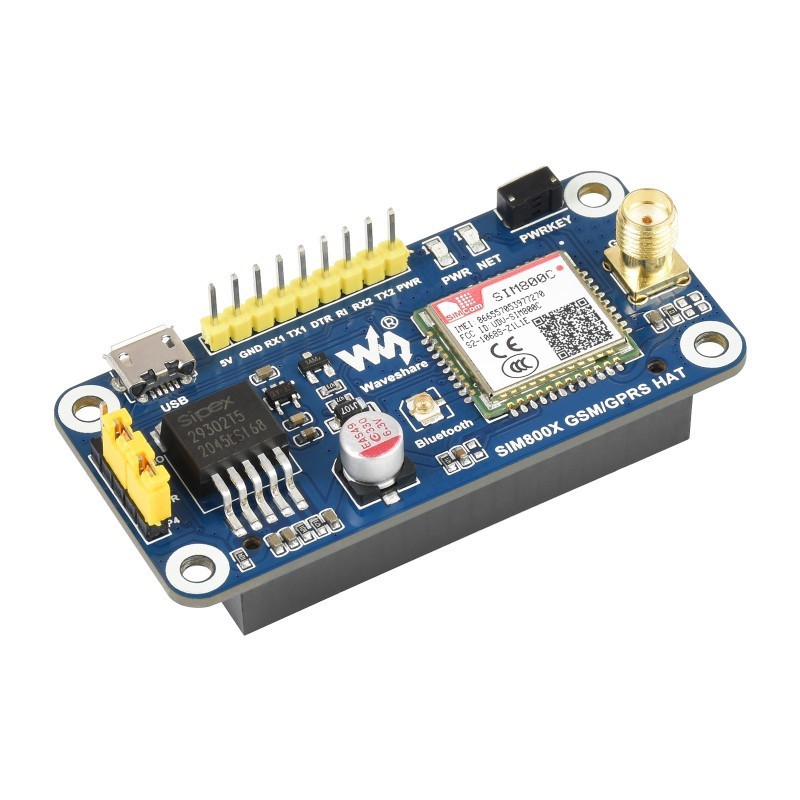

The SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
SMS support, 2G communication & Bluetooth data transmission
Based on SIM800C

The SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
| GSM / GPRS / Bluetooth | |
|---|---|
| Frequency band | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ |
| Emitting power | Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800/1900 MHz) |
| GPRS connectivity | GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable) |
| GPRS data feature | UL/DL data rate: ≤85.6kbps Supports Packet Broadcast Control Channel (PBCCH) Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD) |
| SMS | Supports: MT, MO, CB, Text, PDU SMS storage: SIM card |
| Bluetooth | Integrates AT commands Compliant to Bluetooth specification3.0 + EDR Supports SPP, OPP, HFP/HSP, etc. |
| Others | |
| Power supply | 5V (USB port OR pinheader) |
| Logic level | 5V / 3.3V (default) |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2 x 65mm |
Compatible with Raspberry Pi series boards, Jetson Nano

supports sending SMS, email, or MMS by AT commands
