Raspberry Pi Compute Module 5 with IO Board (4GB RAM, 32GB eMMC, Wi-Fi 5, Bluetooth 5.0 – CM5104032)

Product Description:
Unlock next-level embedded computing performance with the Raspberry Pi Compute Module 5 (CM5104032) bundled with the Compute Module 5 IO Board (CM5IO). Designed for industrial, embedded, and advanced maker applications, this powerful combination brings the desktop-grade performance of the Raspberry Pi 5 into a compact, customizable system-on-module (SoM) form factor.

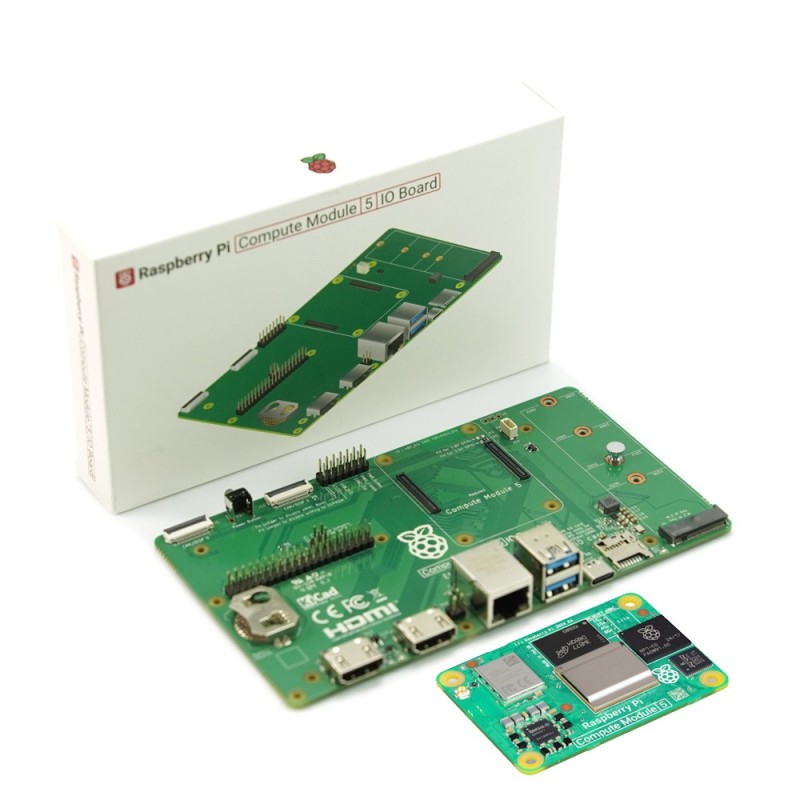

This bundle includes:

• 1 x Raspberry Pi Compute Module 5 (4GB RAM, 32GB eMMC, Wireless)

• 1 x Compute Module 5 IO Board

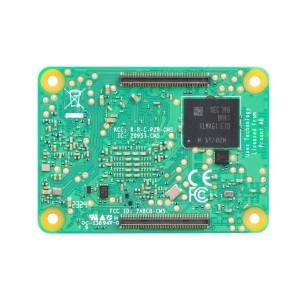

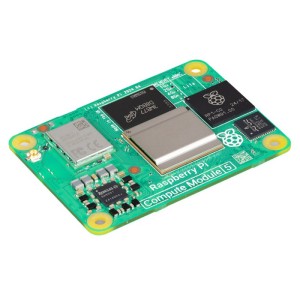

Key Features of CM5 Compute Module (CM5104032):

• Processor: Broadcom BCM2712 Quad-Core Cortex-A76 @ 2.4GHz

• Memory & Storage: 4GB LPDDR4X RAM, 32GB eMMC

• Wireless: Certified dual-band Wi-Fi 5 (802.11ac) + Bluetooth 5.0

• Video: Dual HDMI 2.0 supporting up to 4Kp60 on both ports

• Interfaces: PCIe Gen 2, USB 3.0 x2, USB 2.0 x1, SDIO, SPI, I2C, UART, MIPI DSI/CSI

• Form Factor: 55mm x 40mm x 4.7mm, with M2.5 mounting holes

• Operating Temperature: -20°C to +85°C

• Lifetime Guarantee: Production support through at least January 2036

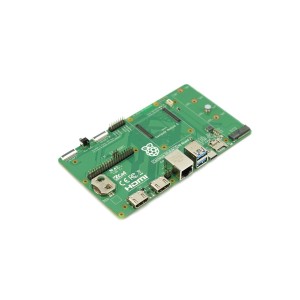

Key Features of the Compute Module 5 IO Board (CM5IO):

• Connectivity:

  • Gigabit Ethernet with PoE+ support

  • Dual full-size HDMI 2.0 ports

  • 2 x USB 3.0 Type-A ports

  • M.2 M-Key PCIe socket for NVMe or AI accelerators

  • Raspberry Pi HAT+ connector

  • 40-pin GPIO, RTC battery socket, fan header, microSD slot (for Lite models)

• Power:

  • Powered by +5V USB-C PSU

  • Integrated power button for controlled boot/shutdown

• Form Factor: 160mm x 90mm

• Accessories: Includes spacers and mounting hardware

• MTBF: 131,000 hours (ground benign environment)

• Lifetime Support: Production available until at least January 2028

Applications:

• Industrial automation systems

• IoT edge computing devices

• Smart home control hubs

• High-performance embedded vision systems

• Network appliances and custom NAS solutions

• AI-powered robotics and sensor platforms

Package Includes:

• 1 x Raspberry Pi Compute Module 5 (4GB RAM, 32GB eMMC, Wi-Fi, Bluetooth)

• 1 x Raspberry Pi CM5 IO Board

Why Choose the Raspberry Pi CM5 with IO Board?
This official bundle offers everything you need to prototype and deploy powerful embedded computing systems. With robust connectivity, industrial-grade reliability, and long-term production support, the CM5 and IO board provide unmatched flexibility and performance for developers, engineers, and system integrators.

Design your next-generation embedded solution with the power of Raspberry Pi CM5 — order now and build with confidence.
