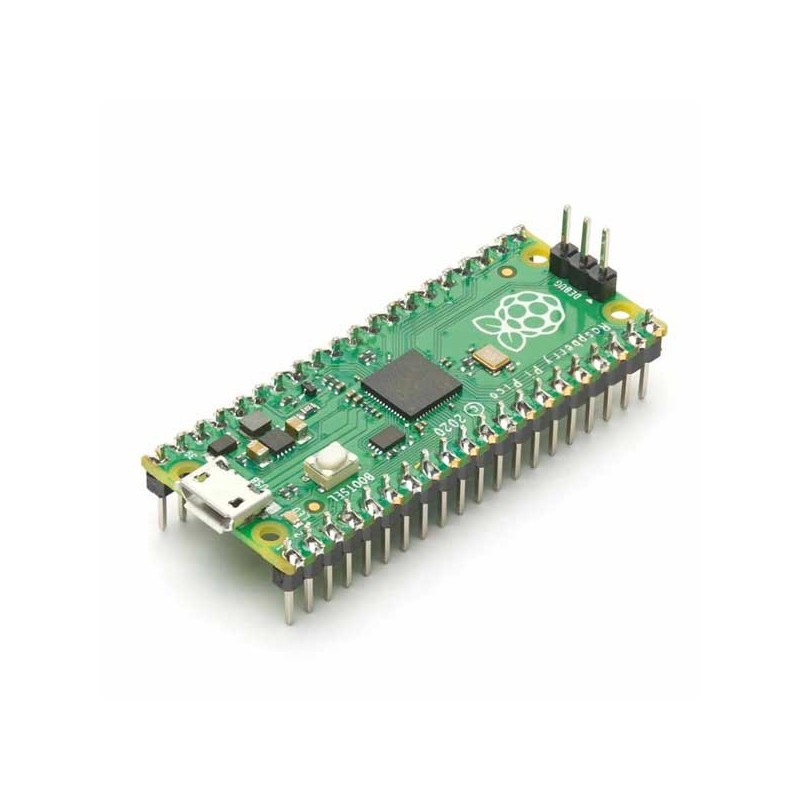

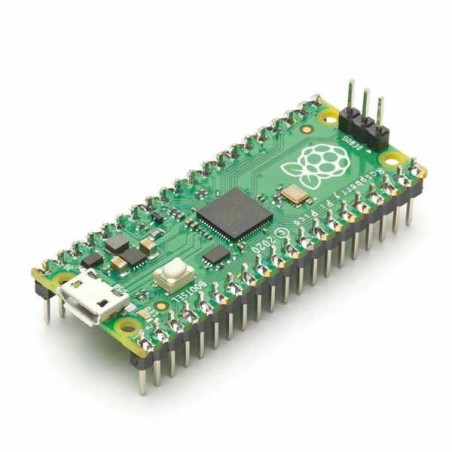

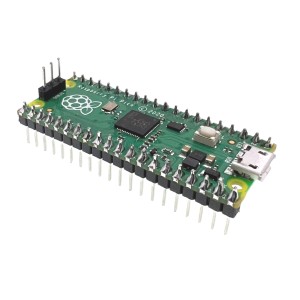

Raspberry Pi Pico China With Soldered Headers

Reference RBD-3071

Introducing a compatible Raspberry Pi Pico Clone, Made in China. Equipped with the authentic Raspberry Pi RP2040 microcontroller chip, this Pico offers comparable performance at a competitive price point. However, it's essential to note that while the microcontroller chip is genuine, the PCB itself is not manufactured by Raspberry Pi but rather in China.

In the market, some sellers intentionally advertise these clones as original Raspberry Pi products. To ensure transparency, we offer both the clone version and the original Raspberry Pi Pico (RBD-1599). You can click here for the original.

In the detailed description, we'll outline the subtle differences between the original and the clone, providing you with all the information you need to make an informed decision.

Description
Product Details

Description

Introducing the Clone version of the Raspberry Pi Pico. Produced in China, it closely mirrors the original design but with some notable differences, as highlighted in the bottom images showcasing variances in the PCB. However, for those seeking authenticity, we also offer the genuine Raspberry Pi Pico. Click the link provided to purchase the Original Raspberry Pi Pico (RBD-1599) with confidence.

The main highlighted thing about RPi Pico is the Lowest cost and Smallest size development board from Raspberry Pi Foundation ever. On the technical side, it is equipped with RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller. Featured By RoboticsBD.

The RP2040 is supported with both C/C++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to start with.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

RP2040 microcontroller chip designed by Raspberry Pi
Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
The castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Onboard temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model	Raspberry Pi PICO
Operating Voltage (VDC)	1.8 ~ 5.5
Processor	RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
Interface	2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
RAM	264 KB
GPIO	26 Pins
Clock Speed	133 MHz
On Board Ports	Micro-USB 5V/2.5A DC Power Input Port
Operating Temperature (°C)	-20 to 85
Length (mm)	51
Width (mm)	21
Height (mm)	4
Weight (gm)	12
Shipment Weight	0.016 kg
Shipment Dimensions	8 × 5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Raspberry PI PICO (with Soldered Headers)
