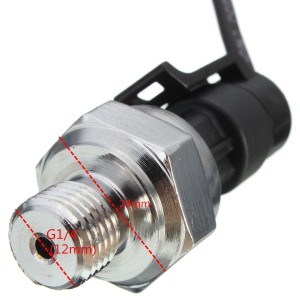

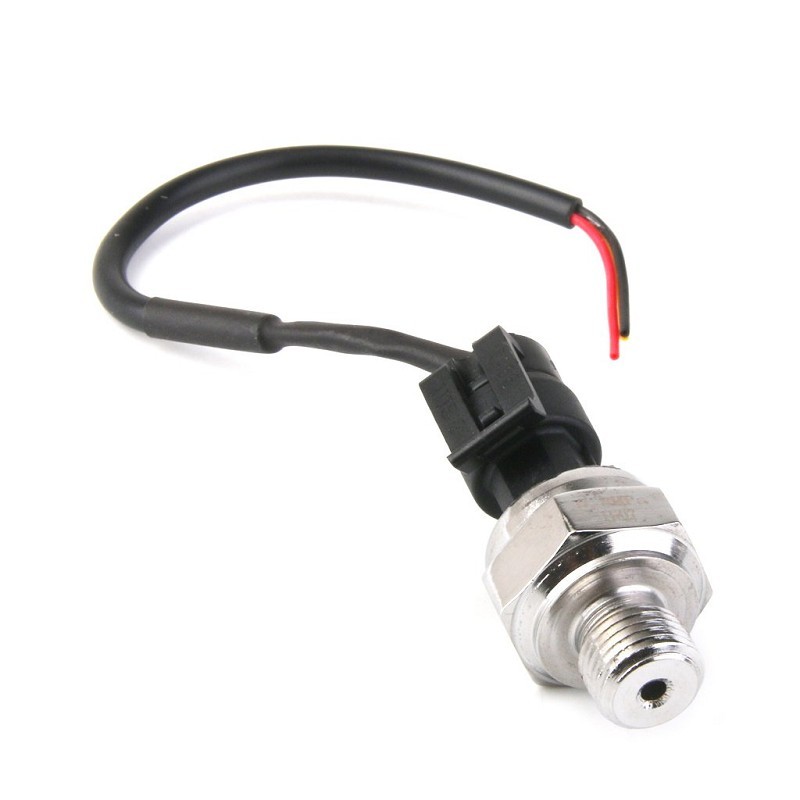

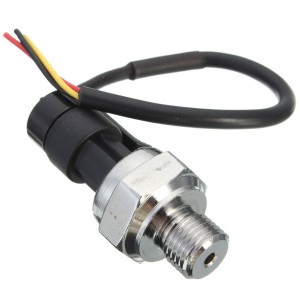

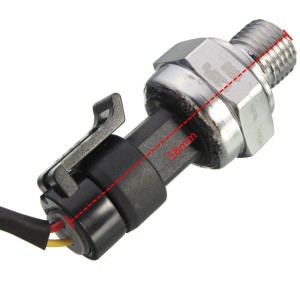

1.6MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2962

High-precision stainless steel pressure transducer with G1/4" interface
Wide pressure range (0–1.2MPa), max applied pressure up to 2.4MPa
High accuracy (±1.5%FS) with fast <2ms response time
Output: 0.5–4.5VDC @ 5V input, low current consumption <10mA
Durable stainless steel body, IP65 protection for long-term reliability
Ideal for oil, gas, liquid tanks, and industrial monitoring applications

Description
Product Details

Description

The 1.6MPa G1/4" Stainless Steel Pressure Transducer Sensor is designed for high-accuracy pressure measurement in oil, gas, and liquid systems. Built with a robust stainless steel body, it provides excellent durability and surge protection, making it suitable for industrial and automation projects. With an operating voltage of 5V DC, this sensor outputs 0.5–4.5VDC proportional to the measured pressure, ensuring stable and precise readings. It supports pressures up to 1.2MPa (working) and withstands up to 2.4MPa, making it reliable even in demanding environments. Compact, lightweight, and featuring IP65 protection, this sensor is perfect for applications such as tanks, pumps, and process monitoring systems. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Precision – ±1.5%FS accuracy with low error from hysteresis or repeatability.
Stainless Steel Housing – Ensures long service life and resistance to harsh conditions.
Wide Pressure Range – Measures up to 1.2MPa, max applied 2.4MPa.
Fast Response – <2ms response time for real-time monitoring.
Low Power Consumption – Operates on 5V DC, draws <10mA.
IP65 Waterproof Rating – Suitable for rugged industrial environments.
Easy Installation – Standard G1/4" threaded interface for quick setup.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Oil Tank Pressure Monitoring – Safe and accurate liquid pressure detection.
Gas Tank Systems – Stable monitoring for industrial gas applications.
Water Pumps & Liquid Systems – Reliable integration for automation.
Industrial Process Control – Enhances precision in monitoring systems.
DIY Robotics & IoT Projects – Pressure sensing for smart monitoring solutions.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–1.2MPa
Maximum Applied Pressure	2.4MPa
Destruction Pressure	1.6MPa
Suitable Medium	Gas, liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0511 kg
Shipment Dimensions	7 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1.6MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
