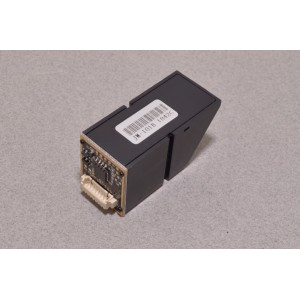

    AS608 Optical Fingerprint Sensor Fingerprint Module JM-101

    RBD-1243

    • Resolution: 500dpi
    • Supply current: <60mA
    • Supply voltage: 3.3V
    • Fingerprint image entry time: <1.0 seconds
    • Peak current: <60mA

    BDT 1,815
    BDT 1,815 BDT 1,815 BDT 1,815 BDT 1,815
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,815 Tax excluded
    BDT 1,815 Tax included
    BDT 0 Tax
    BDT 1,815 Tax excluded
    BDT 0 Tax
    BDT 1,815 Tax included
    Quantity
    In-Stock
    59 Items

    191 people have purchased this item
    59 items in stock
    Description

    The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison, and search of fingerprints are all done by operating fingerprint features. RoboticsBD
    Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways). RoboticsBD

    When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.
    When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail). Featured By RoboticsBD.

    The sensor operates with a VCC of 3.3V. The voltage on the signal lines (RX, TX) must not exceed 3.3V. Using 5V on these lines will damage the sensor.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Low power consumption, low cost, small size, excellent performance, Professional optical technology, precise module manufacturing technics. Good image processing capabilities can successfully capture an image up to resolution 500 dpi Finger detection function. RoboticsBD

    Caution: If you connect it with 5V in any way. The Sensor will be shorted and damaged.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

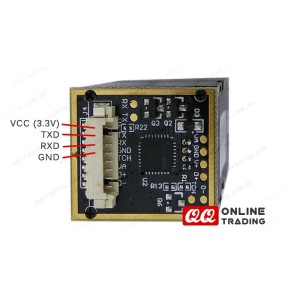

    Finger Print Diagram Color:

    RED ---Arduino 3.3V

    Yellow---Arduino D2

    White----Arduino D3

    Black----Arduino GND

    Features:

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    1. Integrated image collecting and algorithm chip together, ALL-in-One.
    2. The fingerprint reader can conduct secondary development, can be embedded into a variety of end products.
    3. Low power consumption, low cost, small size, excellent performance.
    4. Resolution: 500dpi
    5. Fingerprint image entry time: <1.0 seconds
    6. Window area: 15.3×18.2MM
    7. Communication Interface: USB/UART

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Resolution500dpi
    Supply current<60mA
    Supply voltage3.3V
    Fingerprint image entry time<1.0 seconds
    Peak current<60mA
    Window area(mm)15.3×18.2
    Communication InterfaceUSB/UART
    Length (mm)46
    Width (mm)21
    Height (mm)24
    Weight (gm)20
    Shipment Weight0.03 kg
    Shipment Dimensions5 × 3 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    Documentation:

    1. Arduino Optical Fingerprint Sensor (AS608)
    2. Library Fingerprint Sensor
    3. Windows Software
    4. Adafruit

    Package Includes:

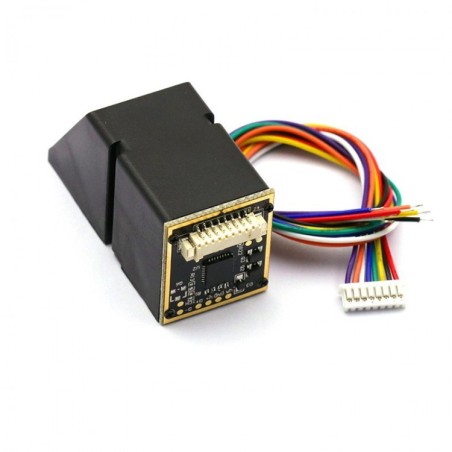

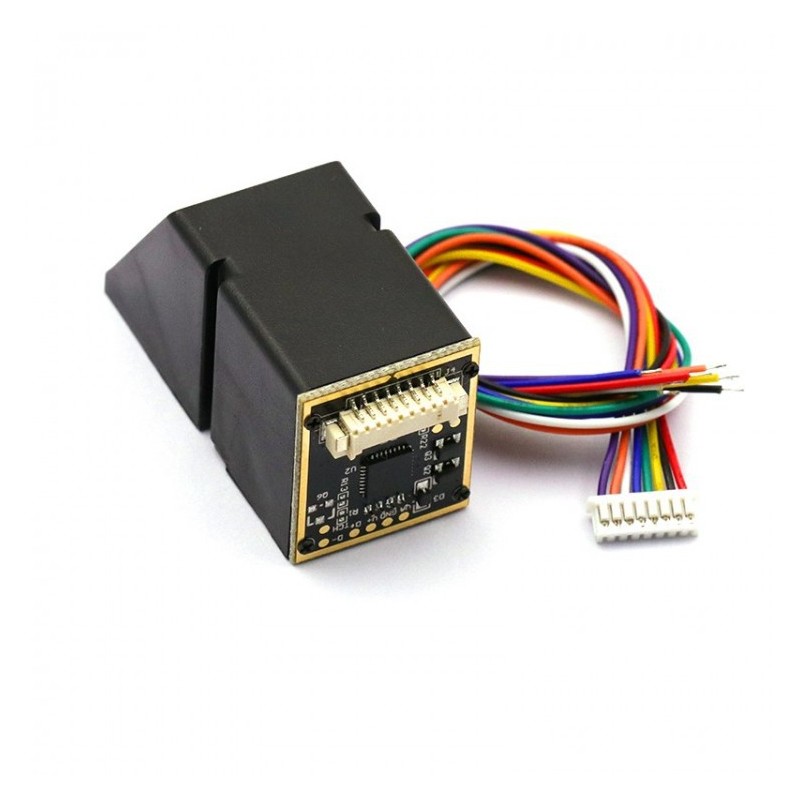

    1 x Fingerprint Scanner Sensor JM-101

    1 x Connecting Cable(6-pin).
