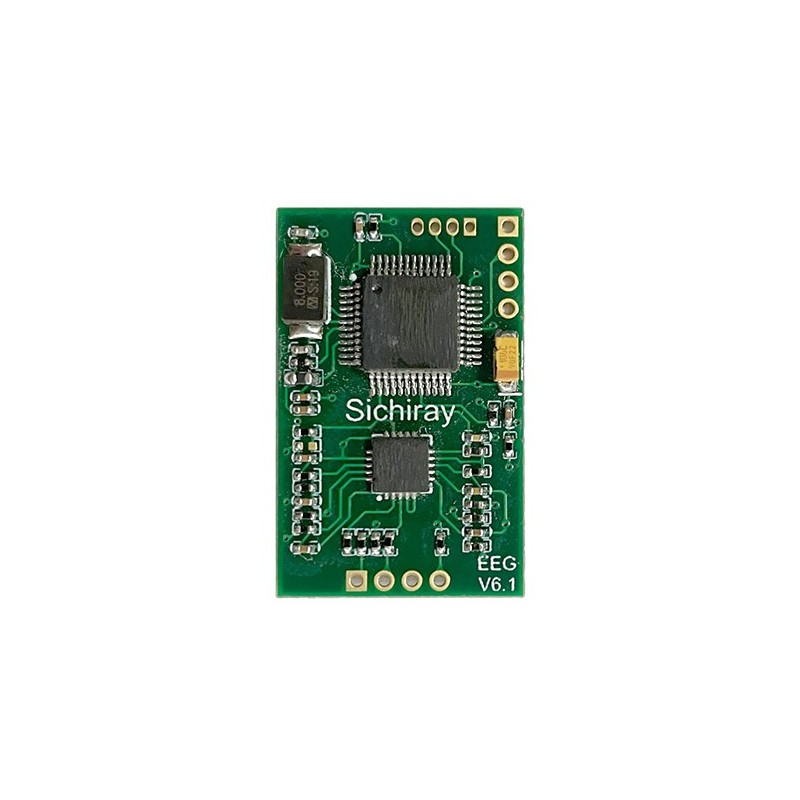

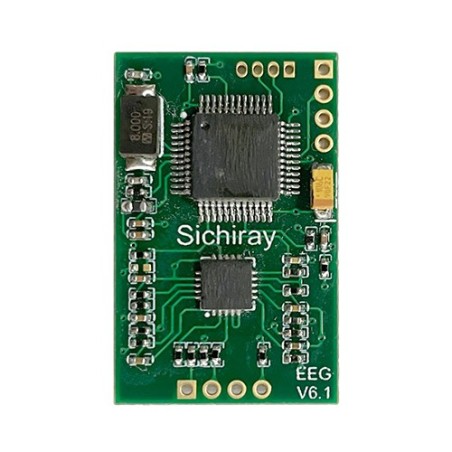

The Taurus TGM Single-Channel EEG Module (TGAM Brain Wave Sensor Development Kit) is a compact and powerful EEG sensor module designed for real-time brainwave acquisition and analysis. Built on the advanced TGAM chip, it delivers high-resolution EEG data at a 512Hz sampling rate, supporting both raw EEG output and processed eSense metrics such as focus and relaxation levels. With robust noise suppression and 50Hz notch filtering, the module ensures stable, clean signal capture. It communicates via UART or Bluetooth, making it easy to interface with Arduino, Raspberry Pi, or PC-based systems. Designed for neuroscience research, biofeedback training, and smart device integration, the Taurus TGM EEG module provides a cost-effective and accessible solution for exploring brainwave technology. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High-Resolution EEG Sampling: Captures raw EEG signals at 512Hz for detailed brainwave analysis.
Dual Output Mode: Provides focus, relaxation, and brainwave band data at 9600 baud and raw EEG data at 115200 baud.
Low Power Consumption: Consumes as little as 5mA at 3.3V, ideal for portable systems.
Strong Anti-Interference: Features built-in 3–100Hz hardware filtering and 50Hz notch filtering.
Bluetooth & UART Communication: Enables both wireless and wired integration with development boards.
High Accuracy FFT: Achieves 1Hz resolution for precise frequency domain analysis.
Compact Design: Lightweight (130mg) and small (18×28.5mm), suitable for wearable devices.
Electrode Compatibility: Works with both dry and wet electrodes for flexible setups.
Auto Gain Control: Maintains stable signal output under variable electrode contact conditions.
Wide Application Range: Ideal for health monitoring, research, and interactive projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Neuroscience Research: Record and analyze EEG signals for cognitive and behavioral studies.
Biofeedback Training: Provide real-time feedback on attention and relaxation levels.
Smart Device Control: Enable EEG-based control for toys, robots, or IoT devices.
Education and Research: Suitable for teaching EEG principles in biomedical or psychology courses.
Interactive Installations: Use brainwave data in art, gaming, or museum exhibits.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Taurus TGM EEG Module |
| Chipset | TGAM Brainwave Processing Chip |
| Sampling Rate | 512Hz |
| Frequency Range | 3Hz – 125Hz |
| Operating Voltage | 3.3V (2.97–3.63V range) |
| Power Consumption | 5mA typical |
| Output Baud Rates | 9600 (processed) / 115200 (raw EEG) |

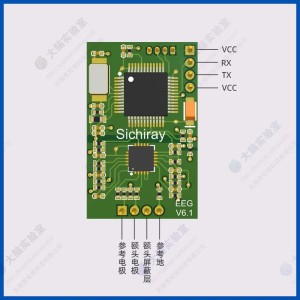

| Communication | UART Serial, Bluetooth |
| Data Outputs | Focus, Relaxation, Blink, Delta, Theta, Alpha, Beta, Gamma |
| FFT Resolution | 1Hz |
| ADC Accuracy | 12-bit |
| Notch Filter | 50Hz (built-in) |
| Protection | 4KV contact discharge, 8KV air discharge |
| Electrode Type | Compatible with dry and wet electrodes |
| Module Size | 18 × 28.5 mm |
| Weight | 130mg |
| Typical Power Usage | 15mA @ 3.3V |
| Operating Temperature | -10°C to +60°C |
| Shipment Weight | 0.0084 kg |
| Shipment Dimensions | 4 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
1.Background
At present, brain wave sensor modules are used more and more widely in China, among which the TGAM chip of American Neurosky company is the most popular, However, due to the high price and insufficient supply of TGAM chips, the domestic brainwave research and development road is limited, so our company (Wuxi Sichiray Technology Co., Ltd.) choose to independently develop this Taurus brainwave module. After more than 4 years of research and development cycle and more than 10 optimization and upgrading, Taurus EEG module has finally been successfully launched.
Stable supply, better price, better performance.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
2.Introduction
The Taurus EEG sensor module is a module designed for the consumer electronics market to collect single-channel EEG signals. The module integrates analog front-end acquisition and data processing, and can directly output brainwave spectrum, original brainwave signal and two indicators of concentration and relaxation. The module integrates hardware filtering and software filtering, and integrates a 50HZ notch filter, which can filter out environmental interference and improve signal quality. The module is compatible with dry and wet electrodes and is easy to wear. The module adopts serial communication, which can be easily integrated into other devices to assist in the development.
The module adopts serial communication mode, the baud rate is 9600 and 115200, the module outputs α, β and other brain wave band data and attention, relaxation data at 9600 baud rate, and sends the original brain wave signal at 115200 baud rate.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
3.Feature
l Integrated hardware filtering and software filtering, strong anti-interference ability.
l The module uses a 32-bit processing chip, with fast operation speed and powerful performance
l The module integrates the analog front end and ADC to output digital signals directly, which reduces the difficulty of use.
l The FFT accuracy is up to 1HZ, and the resolution is high.
l The module directly outputs the brainwave band results.
l Outputs concentration and relaxation data.
l Output raw brain wave data.
l Power consumption as low as 5mA for easy integration into battery-powered devices.
l Supports dry and wet electrodes for easy wearing.
l Internal automatic gain adjustment, stable signal quality.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
4.Parameter
l Size: 18mm*28.5mm
l Operating Voltage: 3.3V
l Working current: 5mA
l Sampling Rate: 250HZ
l Frequency Range: 3HZ-125HZ
l FFT width: 1HZ
l ADC accuracy: 12 bits
l Serial port baud rate: 9600HZ，115200HZ
l Notch filter: 50HZ
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
5. Prospects & Application
The Taurus brainwave module can be used to generate a basic single-channel brainwave device for commercial use. It is inexpensive, easy to develop and use, and can be widely used in health, education, research, and entertainment industries.
l It can collect raw brain wave signals for analysis of brain science, bio-medicine and cognitive science.
l By analyzing and processing signal data, attention and relaxation data from different brain wave bands, physiological assessment and biofeedback training are available.
l For smart device control, control toys, interactive games, science and technology museum projects, etc.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Taurus Brain Wave Module
Wide application range
Raw data
Provide technical support
The Taurus EEG sensor module is a sensor module designed for the consumer electronics market to collect single channel EEG signals. The module integrates analog front-end acquisition and data processing, which can directly output two indicators: brainwave spectrum, raw brainwave signal, and focus relaxation. The module integrates hardware filtering and software filtering internally, as well as a 50HZ notch filter, which can filter out environmental interference and improve signal quality. The module is compatible with both dry and wet electrodes, making it easy to wear. The module adopts serial communication, which can be easily integrated into other devices to assist in development.
The module uses serial port communication, with Baud of 9600 and 115200. The module outputs brain wave band data such as a and B, concentration and relaxation data at 9600 Baud, and sends original brain wave signals at 115200 Baud.
1. Integrated hardware filtering and software filtering, with strong anti-interference ability
2. The module adopts a 32-bit processing chip, with fast computation speed and powerful performance
3. The module integrates analog front-end and ADC to directly output digital signals, reducing the difficulty of use
4. FFT accuracy up to 1HZ, high resolution
5. The module directly outputs brainwave band results
6. Output focus and relaxation data
7. Output raw brainwave data
8. The power consumption of the module is as low as 5mA, which can be easily integrated into battery powered devices
9. Supports dry and wet electrodes for easy wearing
10. Internal automatic gain adjustment, stable signal quality
Prospects and application directions
Taurus brain wave module can be used to generate commercial basic single channel brain wave equipment. It is cheap, simple to develop and use, and can be widely used in health, education, research, and entertainment industries.
1. It can collect original brainwave signals for analysis in brain science, biomedicine and Cognitive science.
2. Conduct physiological evaluation and Biofeedback training by analyzing the processed signal data of different brain wave bands and the data of concentration and relaxation.
3. Used for intelligent device control, controlling toys, interactive games, science museum projects, etc.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Taurus TGM Single-Channel EEG Module - TGAM Brain Wave Sensor Development Kit
