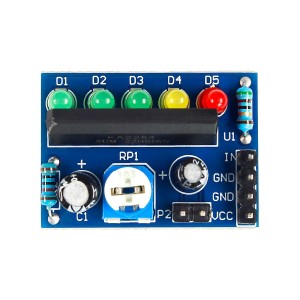

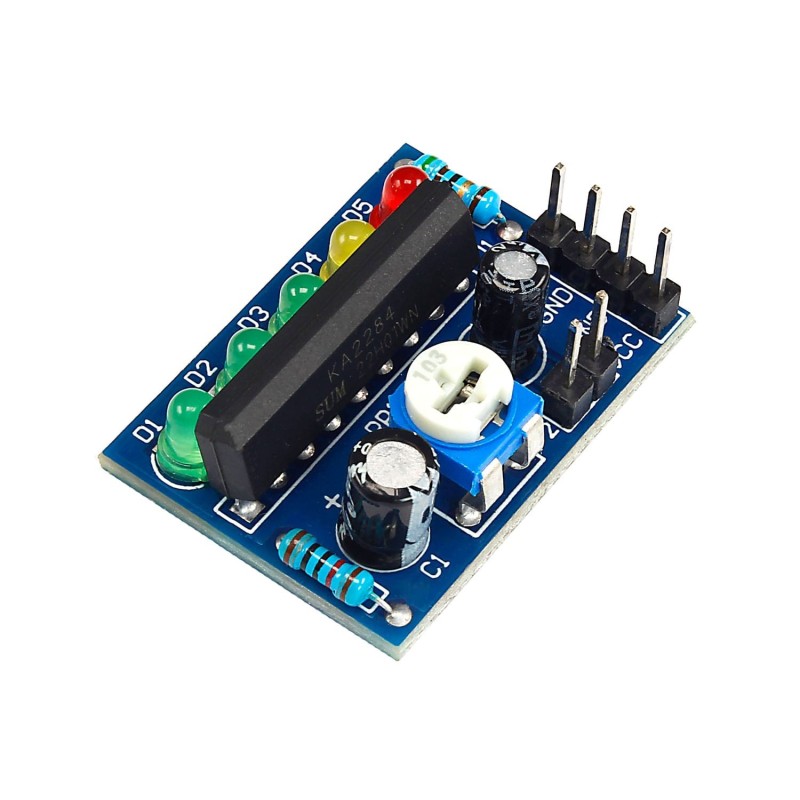

The KA2284 Power Level Indicator Module is a compact and versatile voltage monitoring board designed for real-time visual indication of voltage levels. Utilizing the KA2284 LED dot level meter IC, it converts analog voltage signals into a 5-segment LED display with a logarithmic scale for precise measurement. This module can monitor both AC and DC voltages, selectable via an onboard jumper, making it highly adaptable for various applications such as battery level displays, audio VU meters, and power supply monitoring. A built-in rectifying amplifier ensures accurate response to input signals, while the adjustable potentiometer allows calibration to the desired voltage range. With its bright LED indicators and simple 3-pin interface (VCC, IN, GND), the KA2284 module offers an efficient and user-friendly solution for embedded electronics, robotics, and industrial circuits. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
KA2284 LED Driver IC: Provides accurate logarithmic voltage display control.
5-Segment LED Display: Visualizes voltage levels using green, yellow, and red LEDs.
Dual Voltage Mode: Supports both AC and DC monitoring through a jumper setting.
Adjustable Range: Fine-tune voltage detection using onboard potentiometer.
Wide Voltage Support: Operates between 3.5V–16V for flexibility.
Built-in Rectifier Amplifier: Enables AC voltage detection without external components.
Compact & Easy Integration: Fits easily into power monitoring and DIY systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Battery Level Indicator: Displays the voltage of DC power sources and rechargeable batteries.
Audio VU Meter: Indicates sound levels for amplifiers and audio systems.
Power Supply Status Monitor: Monitors and displays voltage levels in regulated circuits.
Industrial Control Systems: Provides voltage condition feedback for machinery and automation.
DIY Electronics Projects: Enhances embedded designs with visual voltage indication.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| IC Chip | KA2284 |
| Operating Voltage | 3.5V – 16V |
| Input Type | AC / DC (Selectable via Jumper) |
| LED Indicators | 5 (3 Green, 1 Yellow, 1 Red) |
| Display Type | Logarithmic LED Level Indicator |
| Built-in Amplifier | Rectifying Amplifier Integrated |
| Adjustment Control | Single-turn Potentiometer |
| Jumper Setting | ON = DC Mode, OFF = AC Mode |
| Connections | VCC, IN, GND |
| Module Dimensions | Compact PCB (Approx. 36mm × 14mm) |
| Operating Temperature | -20°C to +70°C |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use the KA2284 Power Level Indicator Module
Power the Module:
- Connect VCC to a 3.5V - 16V power supply.
- Connect GND to the ground of the circuit.
Set the Measurement Mode:
- For DC Voltage Measurement (e.g., battery monitoring): Place the jumper ON.
- For AC Voltage Measurement (e.g., audio VU meter): Remove the jumper OFF.
Connect the Voltage Source:
- Connect the IN pin to the voltage source you wish to measure.
Adjust Sensitivity:
- Use the potentiometer to set the measurement range for LED visualization.
Read Voltage Levels:
- Green LEDs indicate low voltage levels.
- Yellow LED indicates moderate voltage levels.
- Red LED indicates high voltage levels, signaling caution.
Package Includes:
1 x KA2284 Power Level Indicator Module
