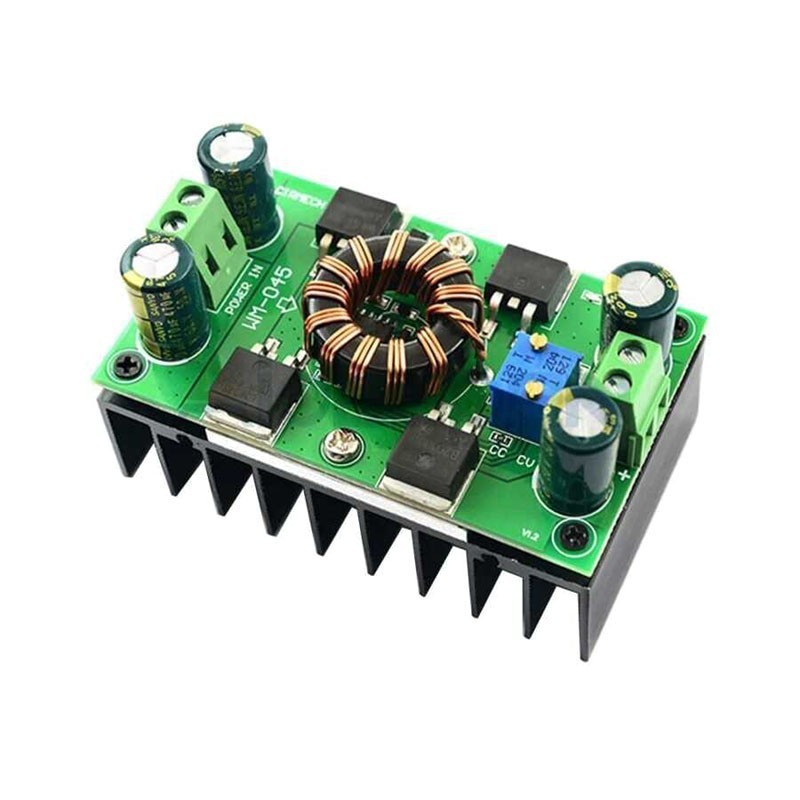

The WM-045 Adjustable Voltage Regulator 150W 10A is a high-performance DC-DC buck-boost converter designed for flexible power management applications. It can both step up and step down voltage, making it suitable for a wide variety of electronic systems. With an input range of 5V to 30V and adjustable output from 1.25V to 30V, this module delivers up to 150W of power with a maximum current of 10A. Its high conversion efficiency of up to 90%, combined with low ripple and fast dynamic response, ensures stable and reliable performance even under varying loads. The onboard potentiometers allow precise voltage and current adjustment, which makes it ideal for regulated power supplies, battery charging systems, LED lighting control, motor drivers, and laboratory testing setups.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Buck & Boost Functionality – Can increase or decrease voltage depending on input conditions.
High Power Output (150W) – Suitable for demanding applications requiring stable power delivery.
Maximum 10A Output Current – Supports high-current loads such as motors and battery packs.
Wide Voltage Adjustment Range – Fine-tune output voltage from 1.25V to 30V easily.
High Efficiency up to 90% – Reduces heat generation and improves overall system performance.
Low Ripple & Noise (200mVp-p) – Ensures clean and stable output for sensitive electronics.
Precise Voltage & Load Regulation – Maintains ±0.5% stability under varying conditions.
Compact Design with Heatsink Support – Easy integration into custom enclosures and projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
DIY Adjustable Power Supply – Build custom regulated bench power systems.
Battery Charging Systems – Control charging voltage and current accurately.
LED Lighting Drivers – Provide stable regulated voltage for LED strips and modules.
Motor Power Control – Supply adjustable voltage for DC motor speed regulation.
Solar Power Systems – Regulate and stabilize output from solar panels.
Electronic Testing & Repair – Ideal for laboratory and troubleshooting setups.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Name | WM-045 Adjustable Voltage Regulator Module |
| Converter Type | DC-DC Buck-Boost |
| Input Voltage | 5V – 30V DC |
| Output Voltage | 1.25V – 30V DC (Adjustable) |
| Output Current | Up to 10A (Max) |
| Maximum Power | 150W |
| Conversion Efficiency | Up to 90% |
| Ripple & Noise | 200mVp-p |
| No-Load Current | 6mA (Typical) |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Dynamic Response | 300μS |
| Module Dimensions | 76mm × 45mm × 73mm |
| Shipment Weight | 0.091 kg |
| Shipment Dimensions | 8 × 5 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x WM-045 Adjustable Voltage Regulator, Power Supply Module - 150W, 10A
