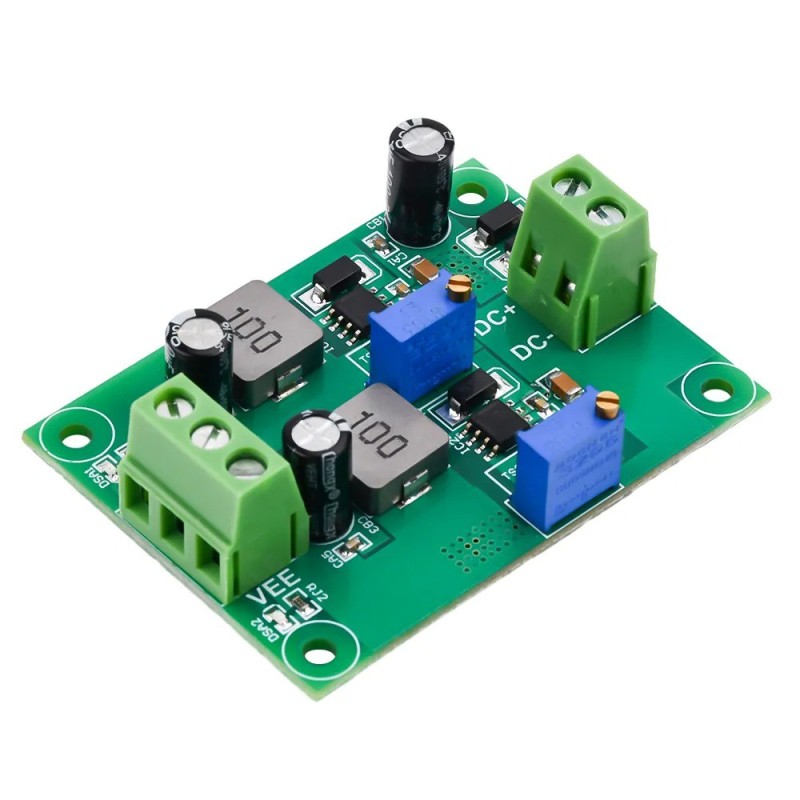

The DC 5.5V–35V Positive Negative Voltage Stabilizing Power Supply Module is a versatile and reliable solution for applications requiring both positive and negative voltage outputs. With a wide input range of 5.5V to 35V, it provides an adjustable output from 1.22V to 16V using a simple onboard potentiometer. The module delivers up to 3A on the positive terminal and 2A on the negative terminal (max), making it suitable for powering a variety of electronic devices. Its low-ripple design ensures stable performance, especially for sensitive circuits like microcontrollers and audio equipment. Built-in safety features include over-current, over-voltage, and short-circuit protection, ensuring durability and secure operation. Compact and user-friendly, this module is widely used in smart home automation, IoT devices, automotive power supplies, and DIY electronics. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Input Range – Operates from DC 5.5V to 35V.
Adjustable Output – Provides precision control between 1.22V and 16V.
Dual Polarity Supply – Positive terminal up to 3A, negative terminal up to 2A.
Low Ripple Design – Stable output ideal for sensitive electronics.
Protection Built-In – Over-current, over-voltage, and short-circuit protection.
Compact Module – Small 57 × 42 × 16 mm footprint for easy integration.
Durable Construction – Built for long-term and reliable operation.
User-Friendly Adjustment – Onboard potentiometer for easy tuning.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Home Projects – Power automation modules and controllers.
IoT Devices – Stable power for sensors and wireless modules.
Vehicle Electronics – Use in car-based circuits and monitoring systems.
DIY Electronics – Versatile power source for hobby projects.
Microcontroller Systems – Suitable for Arduino, ESP32, and similar boards.
Industrial Applications – Reliable power regulation for embedded systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | DC 5.5V–35V Positive & Negative Voltage Module |
| Input Voltage Range | DC 5.5V – 35V (requires input ≥2V above output) |
| Output Voltage Range | 1.22V – 16V (adjustable) |
| Output Current (Positive) | Up to 3A (varies with voltage) |
| Output Current (Negative) | Up to 2A (varies with voltage) |
| Example at 16V Output | ~1A (positive), ~0.7A (negative) |
| Ripple | Low ripple, stable output |
| Protection Features | Over-current, over-voltage, short-circuit |
| Module Dimensions | 57 × 42 × 16 mm |
| Shipment Weight | 0.0252 kg |
| Shipment Dimensions | 6 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x DC5.5V-35V Positive Negative Voltage Stabilizing Power Supply Module
