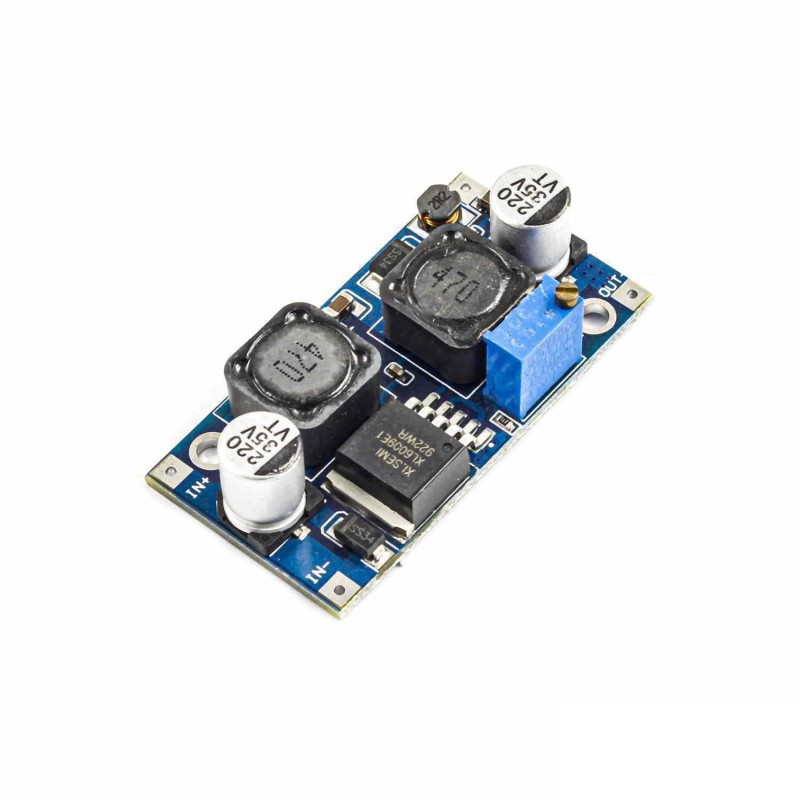

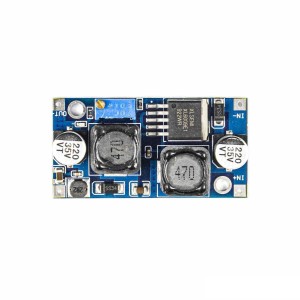

The XL6009 DC-DC Buck Boost Power Module is a highly efficient voltage regulator designed to maintain a stable and adjustable output voltage, even with fluctuating input power. Using advanced switching technology, it can automatically step up or step down voltage levels, making it ideal for both low and high voltage power sources. With a wide input range of 5V–32V and an adjustable output of 1.25V–35V, it’s suitable for powering sensors, microcontrollers, and embedded systems. The built-in 4A MOSFET switch ensures up to 94% efficiency with minimal heat generation, while overload and overheat protection enhance safety. Its compact size and high stability make it perfect for automotive voltage regulation, solar systems, battery charging circuits, and DIY electronics projects where constant voltage is critical. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Voltage Range: Accepts input from 5V–32V and outputs adjustable 1.25V–35V.
Automatic Buck-Boost Conversion: Maintains steady output regardless of input fluctuations.
High Conversion Efficiency: Up to 94% with integrated high-performance MOSFET.
Stable Output: Operates at 400KHz frequency for low ripple and precise regulation.
Overload and Overheat Protection: Safeguards against excessive current and thermal stress.
Compact and Lightweight: Easy to install in various embedded and portable systems.
Versatile Use Cases: Suitable for automotive, solar, battery, and electronics projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Automotive Voltage Regulation: Stabilizes voltage supply in car electrical systems.
Solar & Renewable Energy Projects: Regulates panel output for charging and storage systems.
Battery Charging Modules: Steps voltage up or down for custom battery configurations.
Microcontroller Power Supply: Provides constant voltage for Arduino, ESP32, STM32, etc.
DIY Electronics & Embedded Projects: Ensures consistent power for small devices and systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | XL6009 |
| Type | DC-DC Buck Boost Converter |
| Input Voltage | 5V – 32V |
| Output Voltage | 1.25V – 35V (Adjustable) |
| Maximum Output Current | Up to 3A |
| Conversion Efficiency | Up to 94% |
| Switching Frequency | 400KHz |
| No-load Current | 18mA (varies with input voltage) |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Output Ripple | 50mV |
| Operating Temperature | -40°C to +85°C |
| Module Dimensions | 48mm × 25mm × 14mm |
| Protection Features | Overload, Overheat |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use the XL6009 DC-DC Buck Boost Module
- Connect Power – Supply an input voltage between 5V and 32V using a DC power source.
- Adjust Output Voltage – Use the onboard potentiometer to set the desired output voltage.
- Connect Load – Attach your device to the output terminals. Ensure that the current draw does not exceed 3A.
- Monitor Performance – Use a multimeter to check input and output voltages for proper operation.
- Use Heat Dissipation – If operating at high currents, consider adding a heatsink for better thermal management.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x XL6009 DC-DC Buck Boost Power Module
