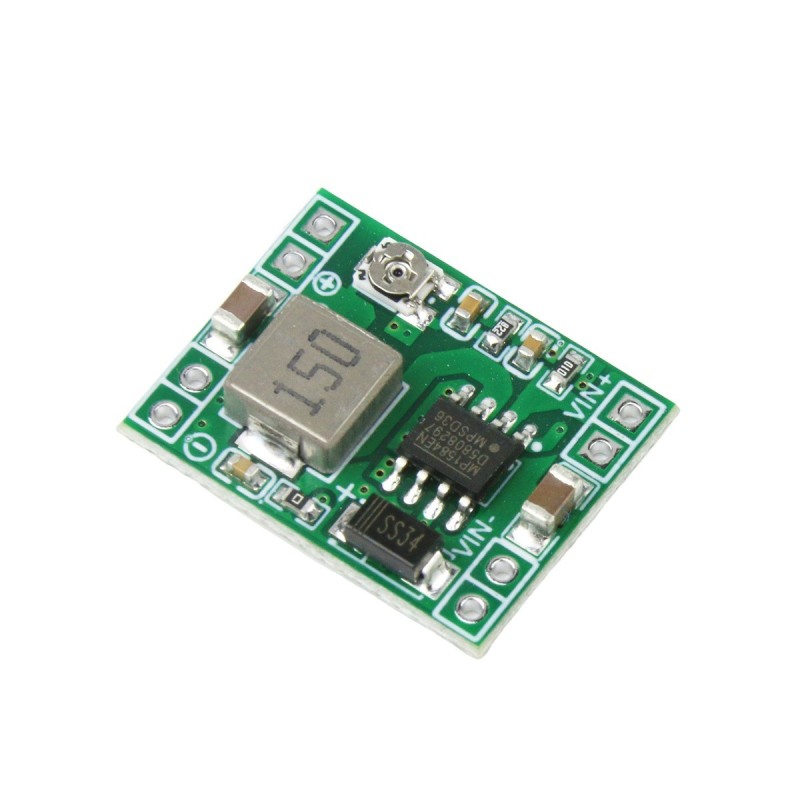

Mini MP1584EN DC-DC BUCK Adjustable Step Down Module

Reference RBD-3953

Input Voltage: 4.5V – 28V
Output Voltage: 0.8V – 20V
Output Voltage Adjustment: On-board potentiometer
Output Current: 1.8A (typical), 3.0A (max).
Ceramic Capacitor Stable
Internal Soft-Start
Internally Set Current Limit without a Current Sensing Resistor

Description
Product Details

Description

The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

It features soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage.

Small size, light weight, low internal power consumption, and wide input voltage range of 4.5V to 28V makes this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices. RoboticsBD

Applications:

DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
Robotics
Breadboard power supply
Manual speed adjustment of small DC motors
Power Supply for RC project planes, cars, helicopters
Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
Receiver/servo power supply
Communications equipment power supply
Mobile equipment power supplies

Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.

Features :

Wide 4.5V to 28V Operating Input Range
High-Efficiency Pulse Skipping Mode for Light Load
Ceramic Capacitor Stable
Internal Soft-Start
Internally Set Current Limit without a Current Sensing Resistor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC Chip	MP1584EN
Input Voltage (V)	4.5 to 28
Output Voltage(V)	0.8 ~ 20
Max. Output Current (A)	3
Typical Output Voltage(A)	1.8
Typical Switching Frequency(MHz)	1
Maximum Switching Frequency(MHz)	1.5
Conversion Efficiency(%)	96
Output Ripple(mV)	<30
Accuracy	±0.5%
Operating Temperature (°C)	-50 to 85
Length (mm)	22
Width (mm)	17
Height (mm)	4
Shipment Weight	0.05 kg
Shipment Dimensions	3.5 × 3 × 1.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Mini MP1584 DC-DC 3A Adjustable Buck module.
